Front Panels, Aprons & Side Members (Wheelhouse) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Front Panels, Aprons & Side Members (Wheelhouse) (Halewood (UK))

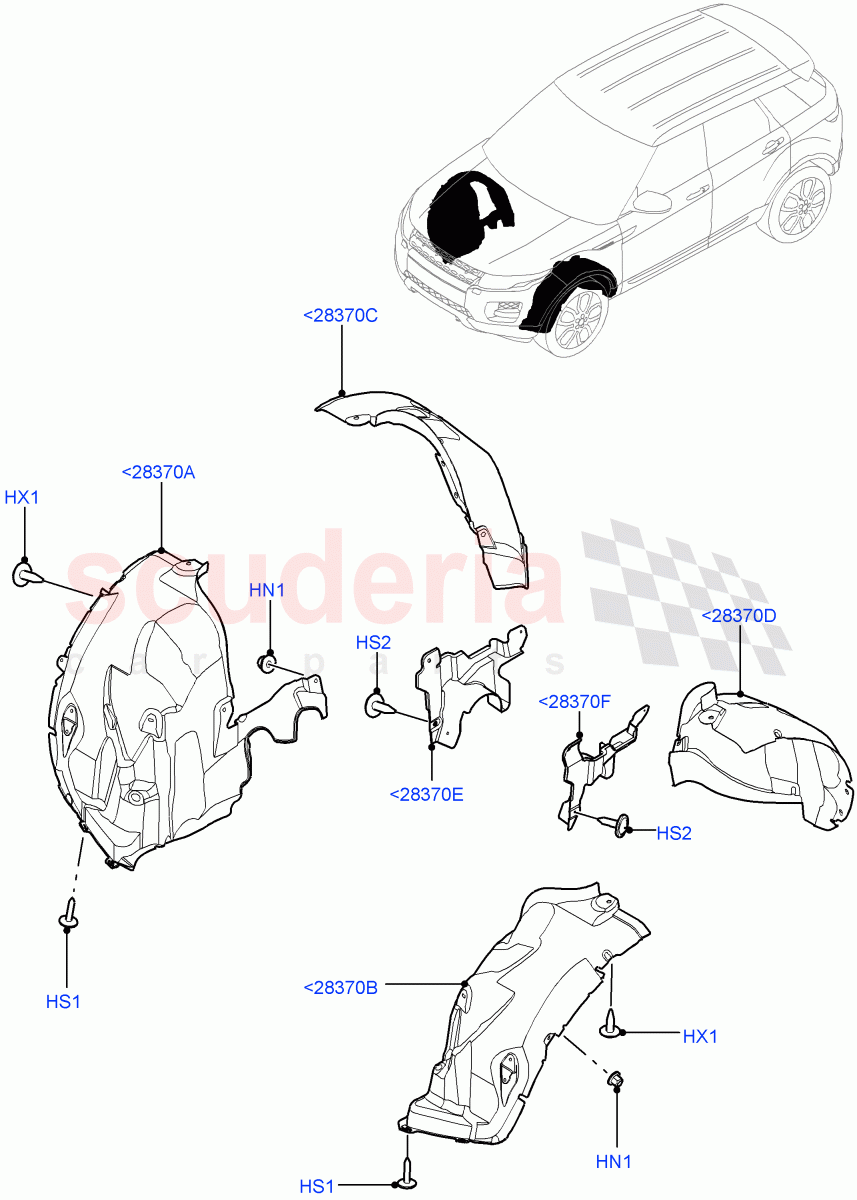

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYH500780	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100790	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP000100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069695	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR069694	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR069695	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027395	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR027395	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR069696	GUARD - FRONT SPLASH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027396	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR096621	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027397	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR096622	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099959	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099958	SHIELD - SPLASH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<28370A	LR069695	SHIELD - SPLASH - WHEELHOUSE	LR069695 SHIELD - SPLASH - WHEELHOUSE RH, Front, With Wheelarch Extension / To: FH999999	-	1	Enquire
<28370A	LR069694	SHIELD - SPLASH - WHEELHOUSE	LR069694 SHIELD - SPLASH - WHEELHOUSE Non Sport/Dynamic / RH, Front, Less Wheelarch Extension / From: GH000001 / To: HH999999	-	1	Enquire
<28370A	LR069695	SHIELD - SPLASH - WHEELHOUSE	LR069695 SHIELD - SPLASH - WHEELHOUSE Sport/Dynamic / RH, Front, With Wheelarch Extension / From: GH000001 / To: HH999999	-	1	Enquire
<28370A	LR088355	SHIELD - SPLASH - WHEELHOUSE	LR088355 SHIELD - SPLASH - WHEELHOUSE Non Sport/Dynamic / RH, Front, Less Wheelarch Extension / From: JH000001	-	1	Enquire
<28370A	LR088356	SHIELD - SPLASH - WHEELHOUSE	LR088356 SHIELD - SPLASH - WHEELHOUSE Sport/Dynamic / RH, Front, Less Wheelarch Extension / From: JH000001	-	1	Enquire
<28370B	LR027395	SHIELD - SPLASH - WHEELHOUSE	LR027395 SHIELD - SPLASH - WHEELHOUSE LH, Front, With Wheelarch Extension / To: FH999999	-	1	Enquire
<28370B	LR027395	SHIELD - SPLASH - WHEELHOUSE	LR027395 SHIELD - SPLASH - WHEELHOUSE Non Sport/Dynamic / LH, Front, With Wheelarch Extension / From: GH000001 / To: HH999999	-	1	Enquire
<28370B	LR069696	GUARD - FRONT SPLASH	LR069696 GUARD - FRONT SPLASH Sport/Dynamic / LH, Front, With Wheelarch Extension / From: GH000001 / To: HH999999	-	1	Enquire
<28370B	LR088357	SHIELD - SPLASH - WHEELHOUSE	LR088357 SHIELD - SPLASH - WHEELHOUSE Non Sport/Dynamic / LH, Front, Less Wheelarch Extension / From: JH000001	-	1	Enquire
<28370B	LR088358	GUARD - FRONT SPLASH	LR088358 GUARD - FRONT SPLASH Sport/Dynamic / LH, Front, Less Wheelarch Extension / From: JH000001	-	1	Enquire
<28370C	LR027396	SHIELD - SPLASH - WHEELHOUSE	LR027396 SHIELD - SPLASH - WHEELHOUSE RH, Rear / To: HH999999	-	1	Enquire
<28370C	LR096621	SHIELD - SPLASH - WHEELHOUSE	LR096621 SHIELD - SPLASH - WHEELHOUSE RH, Rear / From: JH000001	-	1	Enquire
<28370D	LR027397	SHIELD - SPLASH - WHEELHOUSE	LR027397 SHIELD - SPLASH - WHEELHOUSE LH, Rear / To: HH999999	-	1	Enquire
<28370D	LR096622	SHIELD - SPLASH - WHEELHOUSE	LR096622 SHIELD - SPLASH - WHEELHOUSE LH, Rear / From: JH000001	-	1	Enquire
<28370E	LR099959	SHIELD - SPLASH	LR099959 SHIELD - SPLASH RH / From: JH000001	-	1	Enquire
<28370F	LR099958	SHIELD - SPLASH	LR099958 SHIELD - SPLASH LH / From: JH000001	-	1	Enquire
HN1	RYH500780	NUT - HEX.	RYH500780 NUT - HEX. (M6), M6, Plastic Nut	-	4	Enquire
HS1	CYP100790	SCREW	CYP100790 SCREW 4.8 X 25MM, Cross Recess Drive, Front Wheelhouse	-	4	Enquire
HS2	AYP000100	SCREW	AYP000100 SCREW Torx / From: JH000001	-	2	Enquire
HX1	RYQ500070	PIN - RETAINING	RYQ500070 PIN - RETAINING 6.3 X 22MM, Push Pin	-	3	Enquire
