Name: Vacuum Control And Air Injection (2.0L I4 High DOHC AJ200 Petrol, RHD, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (2.0L I4 High DOHC AJ200 Petrol, RHD, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Vacuum Control And Air Injection (2.0L I4 High DOHC AJ200 Petrol, RHD, 2.0L I4 Mid DOHC AJ200...

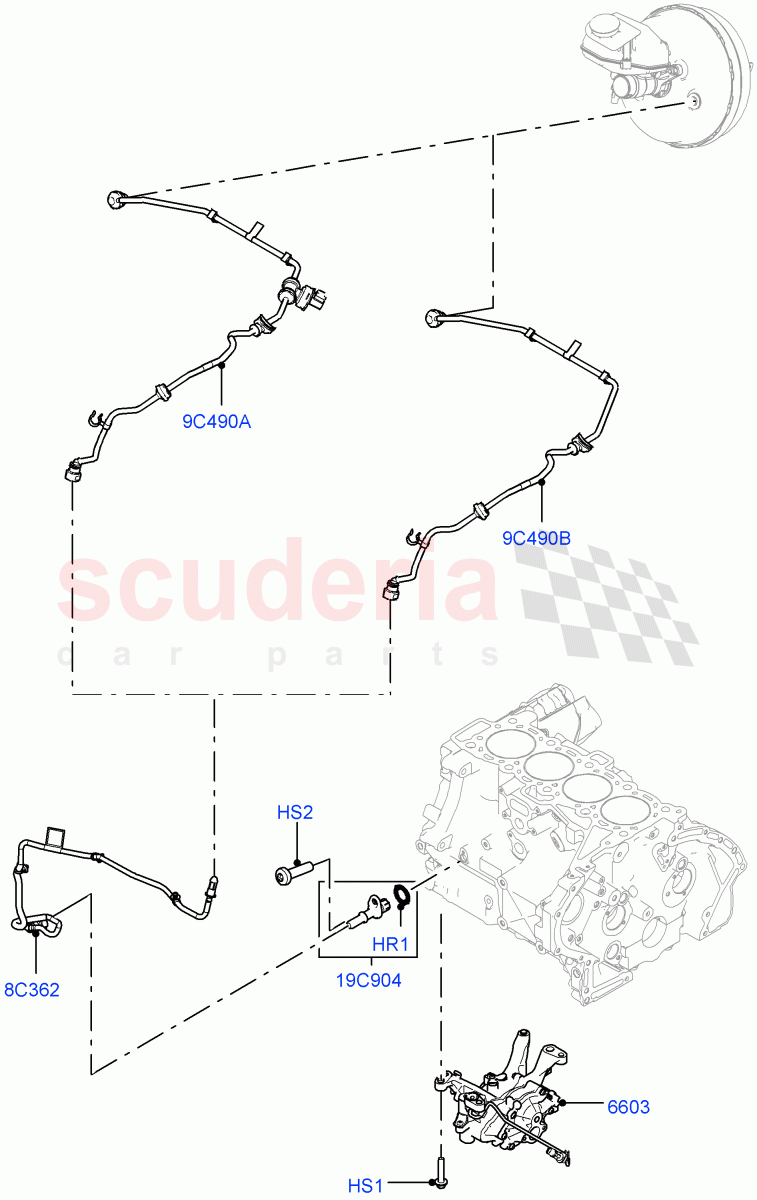

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR106648	O-RING	$5.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073649	SCREW	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087668	PUMP - OIL & VACUUM	$527.19	To Order
	LR110501	PUMP - OIL & VACUUM	$575.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094405	HOSE - VACUUM	$98.37	To Order
	LR138595	HOSE - VACUUM CONTROL HARNESS	$94.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073665	CONNECTOR - VACUUM TUBE	$12.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092063	MANIFOLD - VACUUM SUPPLY	$120.60	To Order
	LR118820	MANIFOLD - VACUUM SUPPLY	$118.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092064	MANIFOLD - VACUUM SUPPLY	$92.72	To Order
	LR118821	MANIFOLD - VACUUM SUPPLY	$92.72	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR106648	O-RING	LR106648 O-RING Connector, Vacuum / From: JH000001	$5.83	1
HS1	LR073649	SCREW	LR073649 SCREW M8 x 40MM, Pump - Vacuum / From: JH000001	$2.40	4
HS2	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: JH000001	$1.36	1
8C362	LR094405	HOSE - VACUUM	LR094405 HOSE - VACUUM From: JH000001 / To: JH293231	$98.37	1
8C362	LR138595	HOSE - VACUUM CONTROL HARNESS	LR138595 HOSE - VACUUM CONTROL HARNESS From: JH293232	$94.07	1
9C490A	LR092063	MANIFOLD - VACUUM SUPPLY	LR092063 MANIFOLD - VACUUM SUPPLY Starter - Stop/Start System / From: JH000001 / To: KH339722	$120.60	1
9C490A	LR118820	MANIFOLD - VACUUM SUPPLY	LR118820 MANIFOLD - VACUUM SUPPLY Starter - Stop/Start System / From: KH339723	$118.20	1
9C490B	LR092064	MANIFOLD - VACUUM SUPPLY	LR092064 MANIFOLD - VACUUM SUPPLY Standard Electric Starter Motor / From: JH000001 / To: KH338161	$92.72	1
9C490B	LR118821	MANIFOLD - VACUUM SUPPLY	LR118821 MANIFOLD - VACUUM SUPPLY Standard Electric Starter Motor / From: KH338162	$92.72	1
19C904	LR073665	CONNECTOR - VACUUM TUBE	LR073665 CONNECTOR - VACUUM TUBE From: JH000001	$12.16	1
6603	LR087668	PUMP - OIL & VACUUM	LR087668 PUMP - OIL & VACUUM From: JH000001 / To: JH293231	$527.19	1
6603	LR110501	PUMP - OIL & VACUUM	LR110501 PUMP - OIL & VACUUM From: JH293232	$575.83	1
