Air Conditioning System (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Air Conditioning System (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010925 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR002724 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002719 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002720 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002718 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR027790 HOSE - AIR CONDITIONING Enquire To Order
LR105245 HOSE - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR020017 SLEEVE - INSULATING Enquire To Order
Photo Part No Description Price (each) Stock
LR066209 TUBE- A/C EVAPORATOR INLET & OUTLET Enquire To Order
LR048509 TUBE- A/C EVAPORATOR INLET & OUTLET Enquire To Order
LR079428 TUBE- A/C EVAPORATOR INLET & OUTLET Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012018 SWITCH - AIR CONDIT.SYSTEM - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR003186 INSERT - RING Enquire To Order
Photo Part No Description Price (each) Stock
LR003185 INSERT - RING Enquire To Order
Photo Part No Description Price (each) Stock
LR003187 INSERT - RING Enquire To Order
Photo Part No Description Price (each) Stock
LR002653 CAP - VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR002654 CAP Enquire To Order
Photo Part No Description Price (each) Stock
LR002629 BRACKET - A/C PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR010311 BRACKET - A/C PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR002655 BRACKET - COOLING HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR027791 TUBE AND HOSE-A/C COMPRESSOR OUTLET Enquire To Order
LR070475 TUBE AND HOSE-A/C COMPRESSOR OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR061889 TUBE AND HOSE-A/C COMPRESSOR INLET Enquire To Order
View All

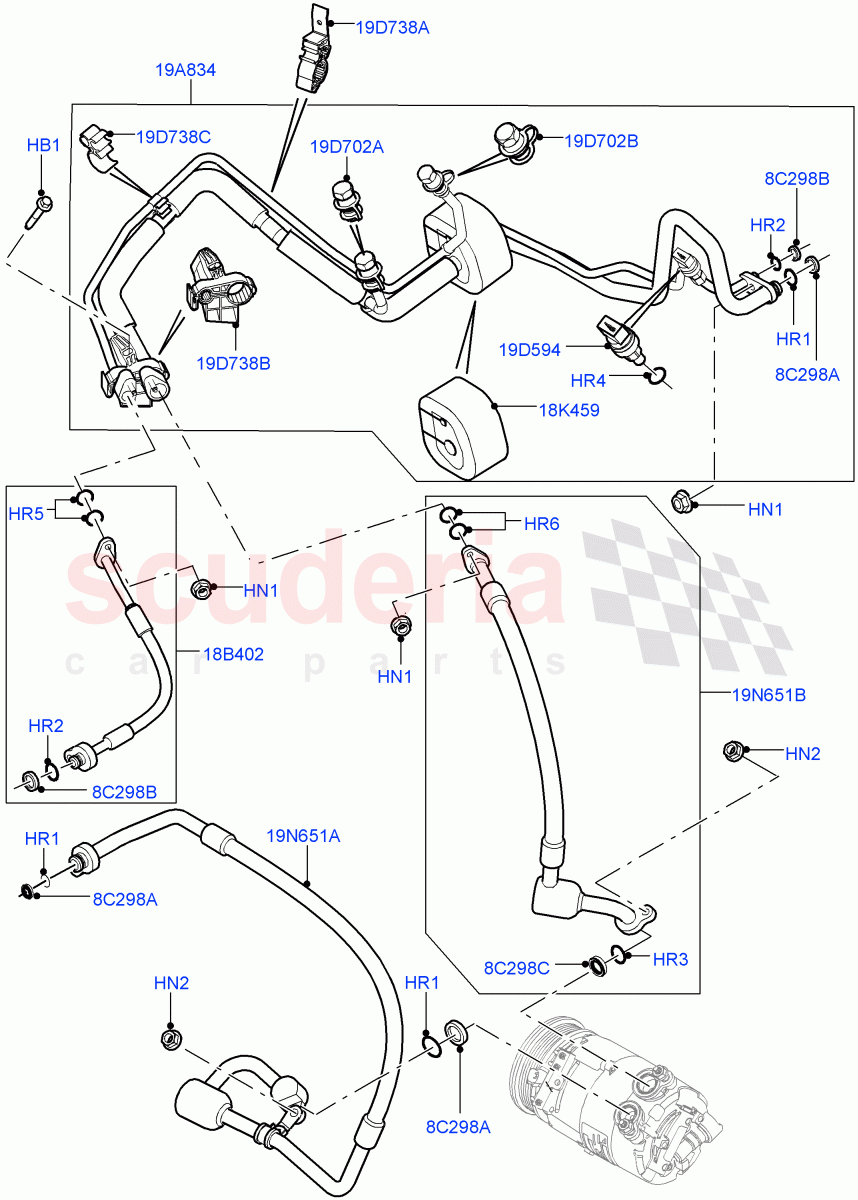

Air Conditioning System (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010925
BOLT
Hexagonal Head, M6 x 50MM / From: EG000001 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EG000001 		- 3 Enquire
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: EG000001 		- 4 Enquire
HR1 LR002724
O-RING
13.7 X 2.5MM / From: EG000001 		- 3 Enquire
HR2 LR002719
O-RING
9.5 X 2.5MM / From: EG000001 		- 2 Enquire
HR3 LR002720
O-RING
16.25 X 2.5MM / From: EG000001 		- 2 Enquire
HR4 LR002718
O-RING
7.66 x 1.78mm / From: EG000001 		- 1 Enquire
HR5 LR044466
O-RING
7.65 X 1.78 / From: EG000001 		- 2 Enquire
HR6 LR044465
O-RING
14 X 1.78 / From: EG000001 		- 2 Enquire
8C298A LR003186
INSERT - RING 		- 2 Enquire
8C298B LR003185
INSERT - RING
From: EG000001 		- 2 Enquire
8C298C LR003187
INSERT - RING
From: EG000001 		- 2 Enquire
18B402 LR027790
HOSE - AIR CONDITIONING
From: EG000001 / To: HG161787 		- 1 Enquire
18B402 LR105245
HOSE - AIR CONDITIONING
From: HG161788 		- 1 Enquire
18K459 LR020017
SLEEVE - INSULATING
From: EG000001 		- 1 Enquire
19A834 LR066209
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: FG107642 / To: GG134737 		- 1 Enquire
19A834 LR048509
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: EG000001 / To: FG107641 		- 1 Enquire
19A834 LR079428
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: GG134738 / To: GG138540 		- 1 Enquire
19A834 LR094023
TUBE-A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: GG138541 / To: HG161787 		- 1 Enquire
19A834 LR094352
TUBE- A/C EVAPORATOR INLET & OUTLET
Air Conditioning Refrigerant-R134A / From: HG161788 		- 1 Enquire
19D594 LR012018
SWITCH - AIR CONDIT.SYSTEM - VACUUM
Pressure Sensor / From: EG000001 		- 1 Enquire
19D702A LR002653
CAP - VALVE
High Pressure Servicing Connection / From: EG000001 		- 1 Enquire
19D702B LR002654
CAP
Low Pressure Servicing Connection / From: EG000001 		- 1 Enquire
19D738A LR002629
BRACKET - A/C PIPE
For Air Conditioning / From: EG000001 		- 1 Enquire
19D738B LR010311
BRACKET - A/C PIPE
From: EG000001 		- 1 Enquire
19D738C LR002655
BRACKET - COOLING HOSE
Triple / From: EG000001 		- 1 Enquire
19N651A LR027791
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Outlet / From: EG000001 / To: GG134737 		- 1 Enquire
19N651A LR070475
TUBE AND HOSE-A/C COMPRESSOR OUTLET
Outlet / From: GG134738 		- 1 Enquire
19N651B LR061889
TUBE AND HOSE-A/C COMPRESSOR INLET
Inlet / From: EG000001 		- 1 Enquire
