Engine Modules And Sensors (2.0L I4 Dsl High Dohc Aj200, Itatiaia (Brazil)) ((V) Fromjt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Engine Modules And Sensors (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028253 BOLT $1.45 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
4378449 SCREW $2.11 IN STOCK
Photo Part No Description Price (each) Stock
LR096547 BRACKET - ENGINE CONTROL MODULE $43.71 To Order
Photo Part No Description Price (each) Stock
LR083658 MODULE - ENGINE CONTROL $1,179.50 To Order
Photo Part No Description Price (each) Stock
LR094640 BRACKET - ENGINE CONTROL MODULE $28.16 To Order
Photo Part No Description Price (each) Stock
LR071821 CONTROL UNIT - GLOW PLUG $133.10 To Order
Photo Part No Description Price (each) Stock
LR113875 BRACKET - ENGINE HARNESS $34.29 To Order
View All

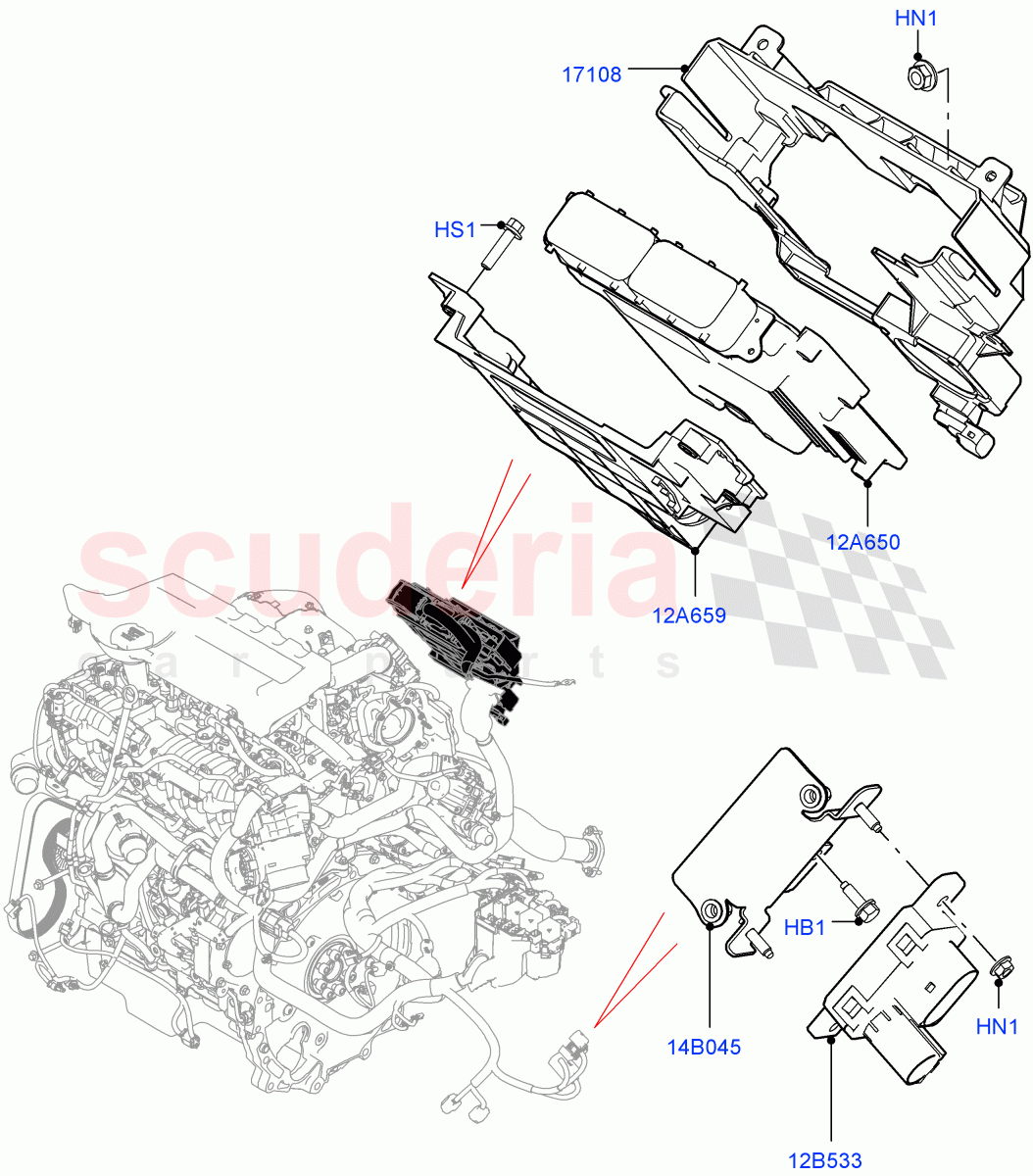

Engine Modules And Sensors (2.0L I4 DSL HIGH DOHC AJ200, Itatiaia (Brazil)) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR028253
BOLT
M6 X 16MM / From: JT000001 		$1.45 1
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: JT000001
IN STOCK 		$1.45 4
HS1 4378449
SCREW
M6 x 25MM / From: JT000001
IN STOCK 		$2.11 4
12A650 LR083658
MODULE - ENGINE CONTROL
Engine / From: JT000001 		$1,179.50 1
12A659 LR094640
BRACKET - ENGINE CONTROL MODULE
Inner, Module - Engine Control / From: JT000001 		$28.16 1
12B533 LR071821
CONTROL UNIT - GLOW PLUG
From: JT000001 		$133.10 1
14B045 LR113875
BRACKET - ENGINE HARNESS
Glow Plug / From: JT000001 		$34.29 1
17108 LR096547
BRACKET - ENGINE CONTROL MODULE
Module - Engine Control, Outer / From: JT000001 		$43.71 1
