Timing Gear Covers (2.0L I4 Dsl Mid Dohc Aj200, Halewood (Uk), 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Timing Gear Covers (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR088623 BOLT - SPECIAL $22.34 To Order
Photo Part No Description Price (each) Stock
LR183648 PLUG - BLANKING $10.66 To Order
Photo Part No Description Price (each) Stock
LR073787 PIN - CENTERING $3.89 To Order
Photo Part No Description Price (each) Stock
LR073794 RING - SEALING $26.03 To Order
Photo Part No Description Price (each) Stock
LR095782 O-RING $4.61 IN STOCK
Photo Part No Description Price (each) Stock
LR071842 SCREW AND WASHER - HEX HEAD $1.28 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
LR082346 BOLT $1.49 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.26 To Order
Photo Part No Description Price (each) Stock
LR073786 SCREW $2.15 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.55 IN STOCK
Photo Part No Description Price (each) Stock
LR073816 GASKET - COVER $30.24 To Order
Photo Part No Description Price (each) Stock
LR000335 DOWEL - PIN $11.72 To Order
Photo Part No Description Price (each) Stock
LR073795 PLATE - BLANKING $16.51 To Order
Photo Part No Description Price (each) Stock
LR073783 SEAL - CRANKSHAFT OIL - REAR $56.12 To Order
LR084639 SEAL - CRANKSHAFT OIL - REAR $47.26 To Order
Photo Part No Description Price (each) Stock
LR096457 COVER - CYLINDER BLOCK REAR $402.11 To Order
Photo Part No Description Price (each) Stock
LR079592 COVER - CYLINDER HEAD $264.11 To Order
LR073647 COVER - CYLINDER HEAD $264.97 To Order
Photo Part No Description Price (each) Stock
LR074068 SENSOR - CRANKSHAFT POSITION - CPS $126.26 To Order
LR126181 SENSOR - CRANKSHAFT POSITION - CPS $143.40 To Order
Photo Part No Description Price (each) Stock
LR096512 COVER - CYLINDER BLOCK REAR $174.84 To Order
View All

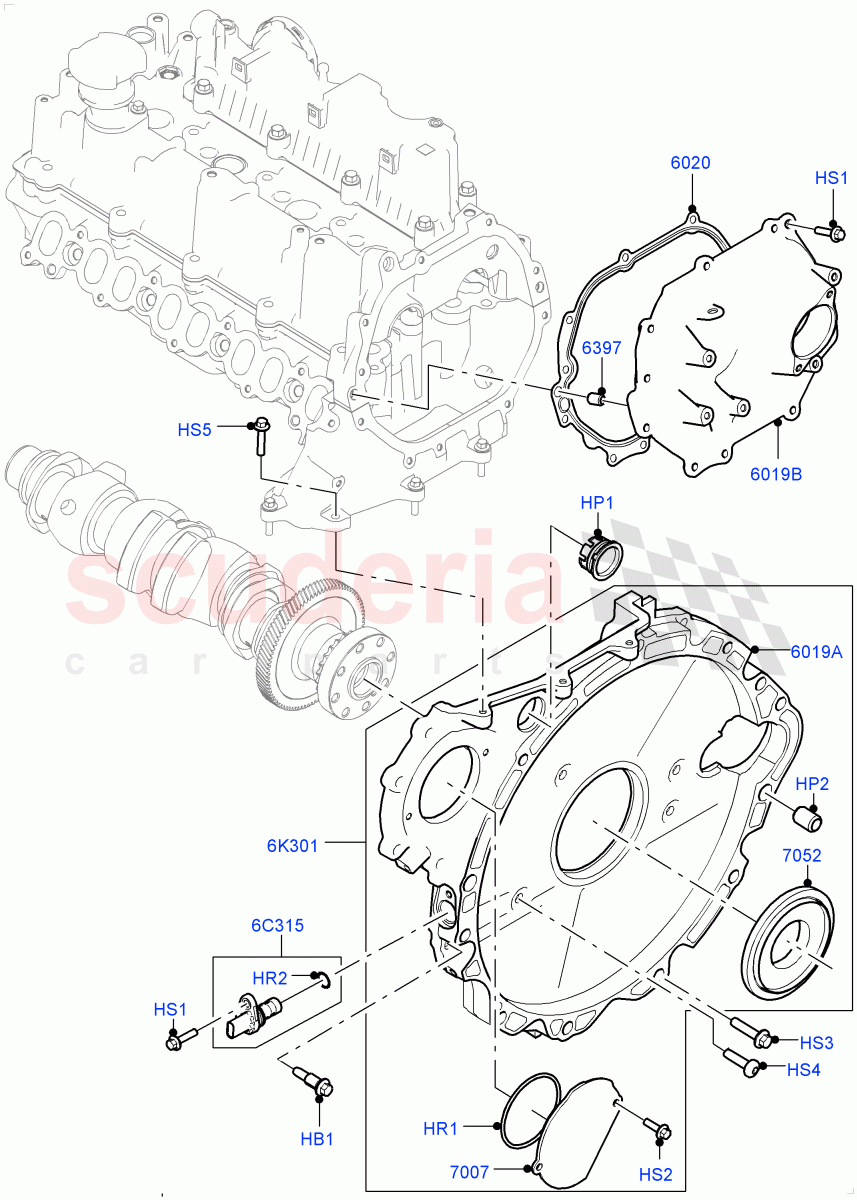

Timing Gear Covers (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR088623
BOLT - SPECIAL
From: GH000001 		$22.34 2
HP1 LR183648
PLUG - BLANKING
Blanking, Chain Drive, Includes O'Ring / From: GH000001 		$10.66 1
HP2 LR073787
PIN - CENTERING
15.7MM, Pin - Dowell / From: GH000001 		$3.89 2
HR1 LR073794
RING - SEALING
From: GH000001 		$26.03 1
HR2 LR095782
O-RING
17.0MM, Crankshaft Position Sensor(CKP) / From: GH000001
IN STOCK 		$4.61 1
HS1 LR071842
SCREW AND WASHER - HEX HEAD
Hexagonal Head, M6 X 25MM / From: GH000001 		$1.28 11
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Plate - Blanking / From: GH000001 / To: GH999999
IN STOCK 		$1.54 2
HS2 LR082346
BOLT
M6 X 20MM, Plate - Blanking / From: HH000001 		$1.49 2
HS3 LR073676
SCREW
M8 x 35mm / From: GH000001 		$2.26 10
HS4 LR073786
SCREW
M8 X 30MM / From: GH000001 		$2.15 4
HS5 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: GH000001
IN STOCK 		$2.55 3
6C315 LR074068
SENSOR - CRANKSHAFT POSITION - CPS
From: GH000001 / To: KH348712 		$126.26 1
6C315 LR126181
SENSOR - CRANKSHAFT POSITION - CPS
From: KH348713 		$143.40 1
6K301 LR096512
COVER - CYLINDER BLOCK REAR
Includes Seal, Lower, Timing Chain Cover / From: GH000001 		$174.84 1
6019A LR096457
COVER - CYLINDER BLOCK REAR
Lower, Timing Chain Cover / From: GH000001 		$402.11 1
6019B LR079592
COVER - CYLINDER HEAD
Timing Chain Cover, Upper / From: HH000001 		$264.11 1
6019B LR073647
COVER - CYLINDER HEAD
Timing Chain Cover, Upper / From: GH000001 / To: GH999999 		$264.97 1
6020 LR073816
GASKET - COVER
Timing Chain Cover, Upper / From: GH000001 		$30.24 1
6397 LR000335
DOWEL - PIN 		$11.72 2
7007 LR073795
PLATE - BLANKING
Access Hole Cover / From: GH000001 		$16.51 1
7052 LR073783
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear / From: GH000001 / To: GH111434 		$56.12 1
7052 LR084639
SEAL - CRANKSHAFT OIL - REAR
Crankshaft Oil Seal, Rear / From: GH111435 		$47.26 1
