Intercooler/Air Ducts And Hoses (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Intercooler/Air Ducts And Hoses (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR001080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR001925 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR072140 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR071924 BRACKET - CHARGE AIR COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR072142 HOSE - INTERCOOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR072118 COOLER - ENGINE CHARGE AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR071745 SENSOR - AIR CHARGE TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR071998 HOSE - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR072134 DUCT - AIR INTAKE Enquire To Order
View All

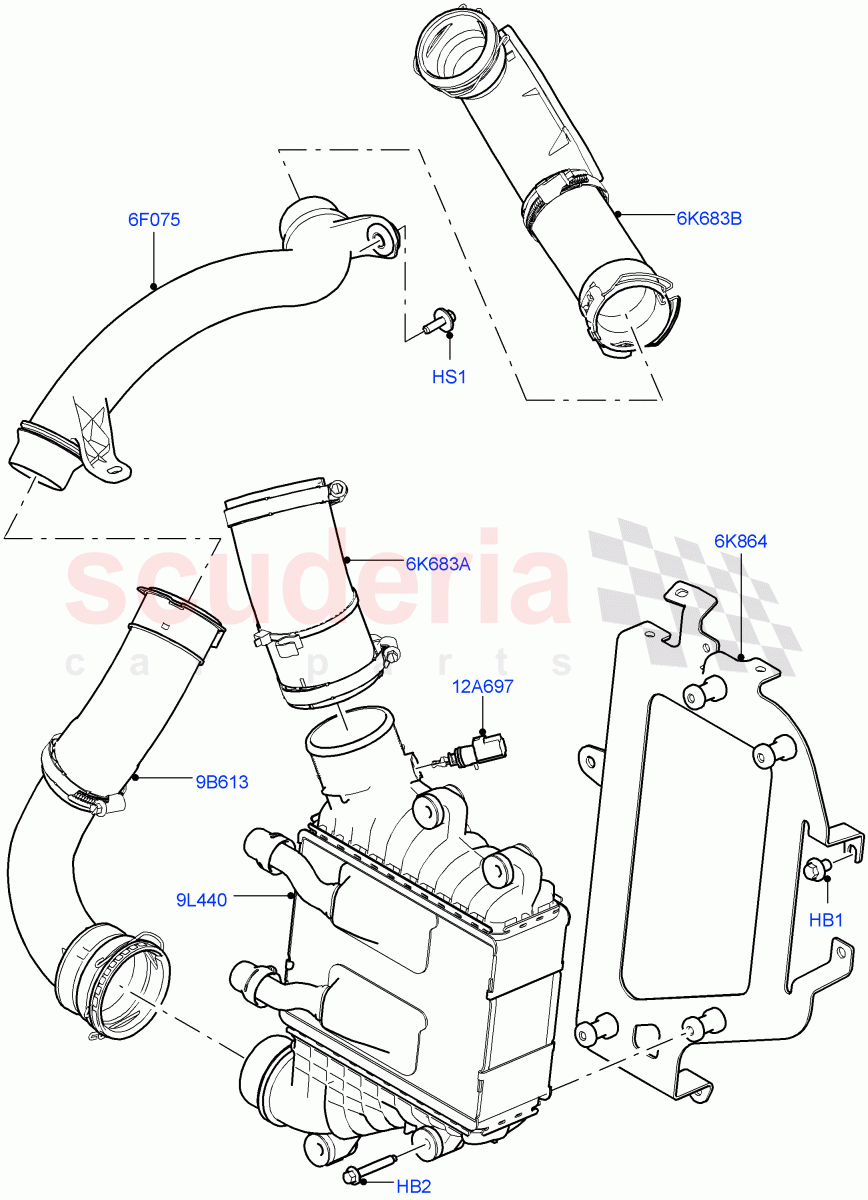

Intercooler/Air Ducts And Hoses (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: GT000001 		- 4 Enquire
HB2 LR001080
BOLT
Hexagonal Head, M6 X 40MM / From: GT000001 		- 4 Enquire
HS1 LR001925
SCREW AND WASHER
M6 X 20MM / From: GT000001 		- 2 Enquire
6F075 LR072140
DUCT - AIR
From: GT000001 		- 1 Enquire
6K683A LR071998
HOSE - AIR
From: GT000001 		- 1 Enquire
6K683B LR072134
DUCT - AIR INTAKE
From: GT000001 		- 1 Enquire
6K864 LR071924
BRACKET - CHARGE AIR COOLER
From: GT000001 		- 1 Enquire
9B613 LR072142
HOSE - INTERCOOLER
From: GT000001 		- 1 Enquire
9L440 LR072118
COOLER - ENGINE CHARGE AIR
From: GT000001 		- 1 Enquire
12A697 LR071745
SENSOR - AIR CHARGE TEMPERATURE
From: GT000001 		- 1 Enquire
