Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Cylinder Block And Plugs (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073785 BOLT $1.86 To Order
LR101794 BOLT $1.62 To Order
Photo Part No Description Price (each) Stock
LR073788 CLIP - RETAINING $3.66 To Order
Photo Part No Description Price (each) Stock
LR088516 CLIP - RETAINING $2.08 To Order
Photo Part No Description Price (each) Stock
LR073637 DOWEL - PIN $2.36 To Order
Photo Part No Description Price (each) Stock
LR073636 PLUG - BLANKING $4.24 To Order
Photo Part No Description Price (each) Stock
LR095786 O-RING $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR106648 O-RING $5.83 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.54 IN STOCK
LR073655 SCREW $1.54 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR101795 SCREW $1.16 To Order
Photo Part No Description Price (each) Stock
LR073720 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
LR077985 COVER - CYLINDER FRONT $241.15 To Order
LR095132 COVER - CYLINDER FRONT $118.22 To Order
LR108531 COVER - CYLINDER FRONT $123.63 To Order
Photo Part No Description Price (each) Stock
LR073684 VALVE - PISTON OIL COOLNG $188.42 IN STOCK
Photo Part No Description Price (each) Stock
LR095896 NOZZLE - PISTON COOLING $16.36 To Order
Photo Part No Description Price (each) Stock
LR093852 SEAL - CRANKSHAFT OIL - FRONT $24.97 To Order
Photo Part No Description Price (each) Stock
LR074067 SENSOR - ENGINE TEMPERATURE $41.83 To Order
Photo Part No Description Price (each) Stock
LR073665 CONNECTOR - VACUUM TUBE $12.16 To Order
Photo Part No Description Price (each) Stock
LR057802 DOWEL - PIN $3.36 IN STOCK
Photo Part No Description Price (each) Stock
LR084238 INSULATOR PAD - CYLINDER BLOCK $32.88 To Order
Photo Part No Description Price (each) Stock
LR083682 INSULATOR - ENGINE COMPARTMENT $51.06 To Order
View All

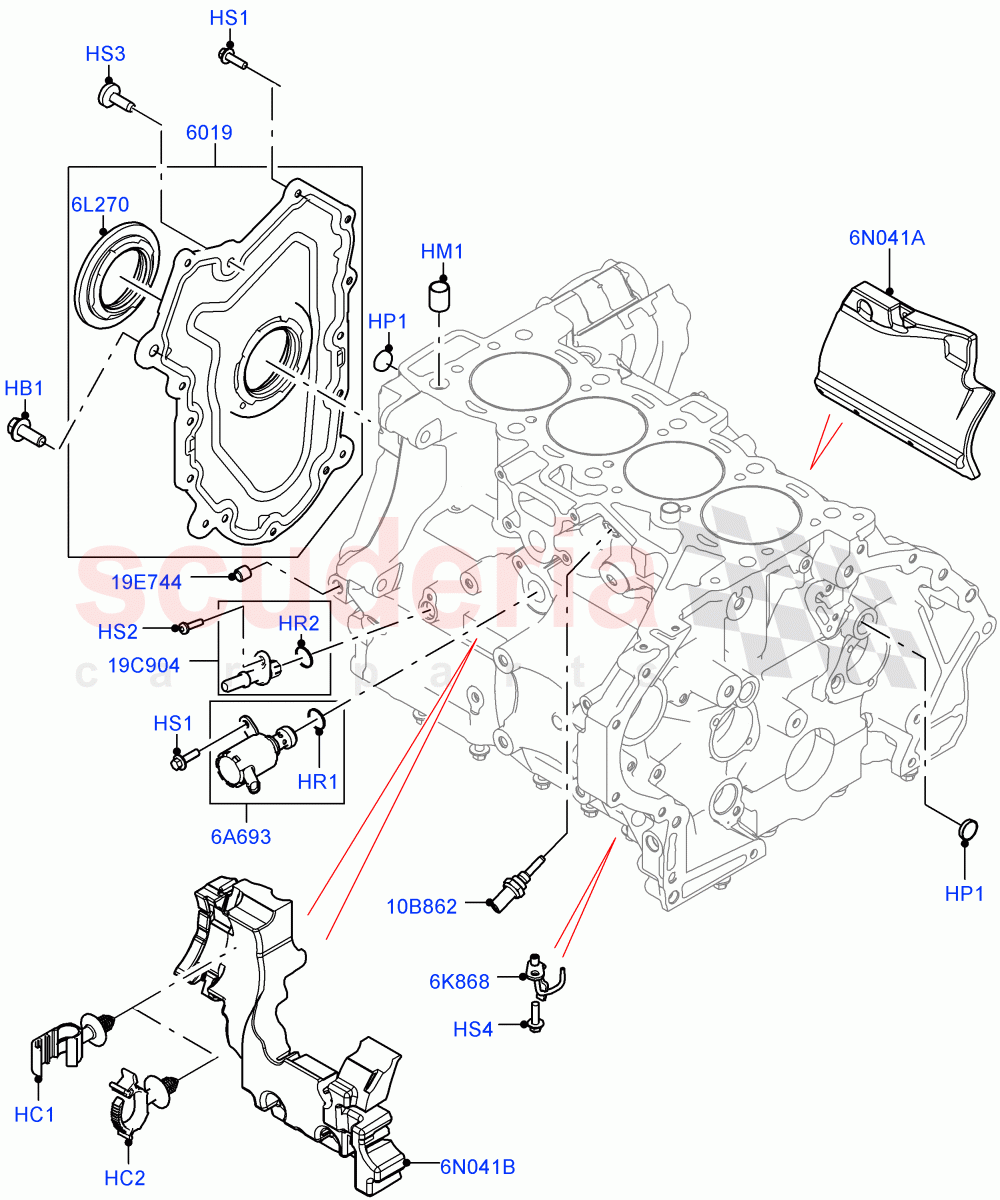

Cylinder Block And Plugs (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073785
BOLT
Cover, Hexagonal Head, M10 X 25MM / From: GT000001 / To: GT999999 		$1.86 1
HB1 LR101794
BOLT
Cover, M10 X 25MM, Torx / From: HT000001 		$1.62 1
HC1 LR073788
CLIP - RETAINING
2.0L I4 DSL HIGH DOHC AJ200 / From: JT000001 		$3.66 1
HC2 LR088516
CLIP - RETAINING
2.0L I4 DSL MID DOHC AJ200 / From: GT000001 		$2.08 1
HM1 LR073637
DOWEL - PIN
16.5 x 20, Pin - Dowell / From: GT000001 		$2.36 2
HP1 LR073636
PLUG - BLANKING
18MM, Blanking / From: GT000001 		$4.24 4
HR1 LR095786
O-RING
15.3MM, Valve - piston oil cooling / From: GT000001
IN STOCK 		$4.47 1
HR2 LR106648
O-RING
Connector, Vacuum / From: GT000001 		$5.83 1
HS1 LR073655
SCREW
Cover, Hexagonal Head, M6 X 20MM / From: GT000001
IN STOCK 		$1.54 12
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM, Valve - piston oil cooling / From: GT000001
IN STOCK 		$1.54 1
HS2 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: GT000001 		$1.36 1
HS3 LR101795
SCREW
Cover, M8X25, Torx / From: GT000001 		$1.16 1
HS4 LR073720
SCREW
M6 X 20MM, Oil Lubrication Jet / From: GT000001 		$1.53 4
6A693 LR073684
VALVE - PISTON OIL COOLNG
From: GT000001
IN STOCK 		$188.42 1
6K868 LR095896
NOZZLE - PISTON COOLING
From: GT000001 		$16.36 4
6L270 LR093852
SEAL - CRANKSHAFT OIL - FRONT
From: GT000001 		$24.97 1
6N041A LR084238
INSULATOR PAD - CYLINDER BLOCK
Cylinder Block / From: GT000001 		$32.88 1
6N041B LR083682
INSULATOR - ENGINE COMPARTMENT
Cylinder Block / From: GT000001 		$51.06 1
10B862 LR074067
SENSOR - ENGINE TEMPERATURE
From: GT000001 		$41.83 1
19C904 LR073665
CONNECTOR - VACUUM TUBE
From: GT000001 		$12.16 1
19E744 LR057802
DOWEL - PIN
IN STOCK 		$3.36 1
6019 LR077985
COVER - CYLINDER FRONT
From: GT000001 / To: GT999999 		$241.15 1
6019 LR095132
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: HT000001 / To: HT999999 		$118.22 1
6019 LR108531
COVER - CYLINDER FRONT
Engine Front, Includes Seal / From: JT000001 		$123.63 1
