Crankshaft/Pistons And Bearings (2.0L I4 Dsl Mid Dohc Aj200, Itatiaia (Brazil), 2.0L I4 Dsl High...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Crankshaft/Pistons And Bearings (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR092624 BOLT - CONNECTING ROD Enquire To Order
Photo Part No Description Price (each) Stock
LR083619 BOLT - BEARING CAP - HEX. HEAD Enquire To Order
LR083619 BOLT - BEARING CAP - HEX. HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR073807 BEARING - CONNECTING ROD Enquire To Order
LR073810 BEARING - CONNECTING ROD Enquire To Order
LR073812 BEARING - CONNECTING ROD Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR073813 BEARING - CONNECTING ROD Enquire To Order
LR073814 BEARING - CONNECTING ROD Enquire To Order
LR073815 BEARING - CONNECTING ROD Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR074091 BEARING - CRANKSHAFT MAIN Enquire To Order
LR074092 BEARING - CRANKSHAFT MAIN Enquire To Order
LR074093 BEARING - CRANKSHAFT MAIN Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR074087 BEARING - CRANKSHAFT MAIN Enquire To Order
LR074088 BEARING - CRANKSHAFT MAIN Enquire To Order
LR074089 BEARING - CRANKSHAFT MAIN Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR074086 WASHER - CRANKSHAFT MAIN BRG THRUST Enquire To Order
LR082353 WASHER - CRANKSHAFT MAIN BRG THRUST Enquire To Order
View All

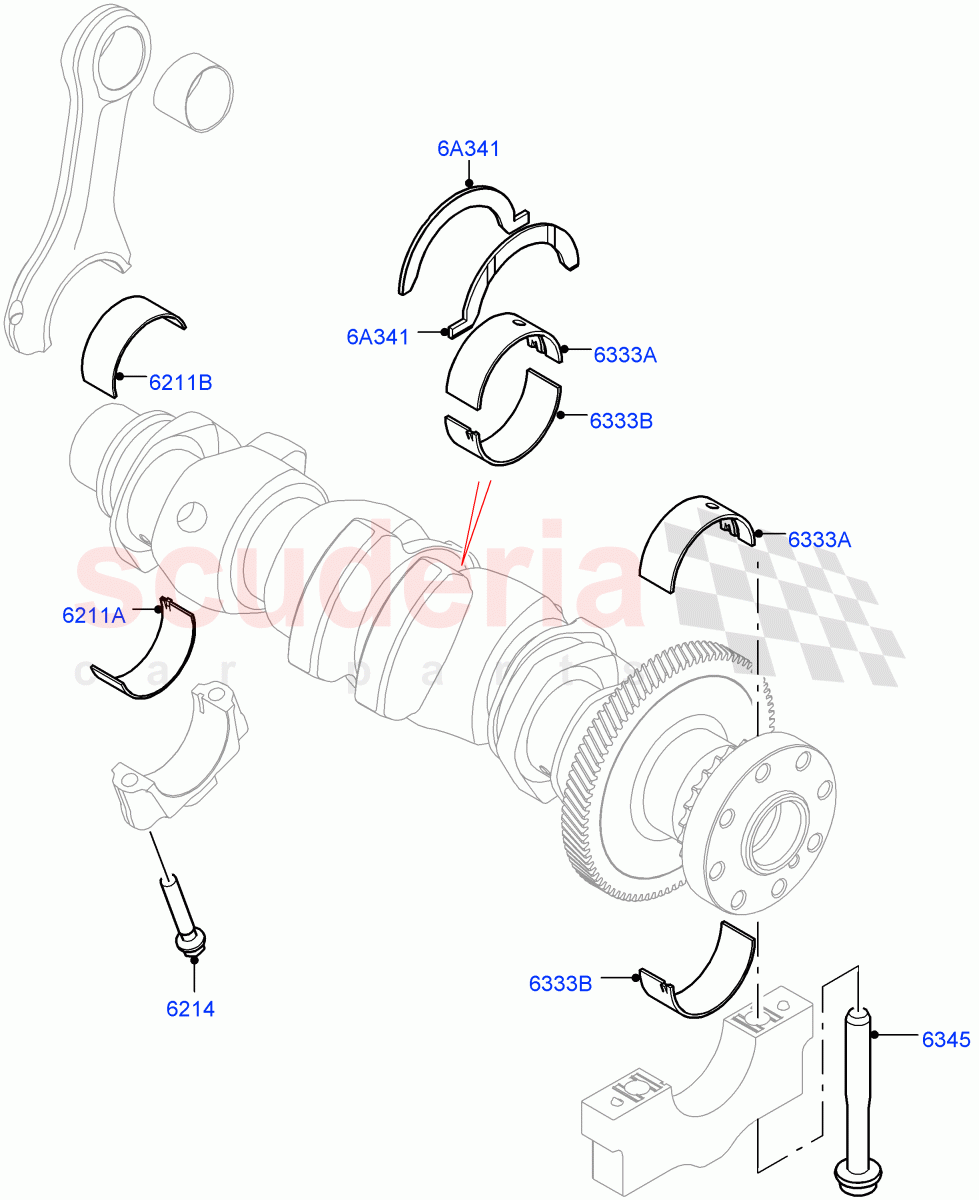

Crankshaft/Pistons And Bearings (2.0L I4 DSL MID DOHC AJ200, Itatiaia (Brazil), 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
6A341 LR074086
WASHER - CRANKSHAFT MAIN BRG THRUST
2.0L I4 DSL MID DOHC AJ200 / From: GT000001 		- 2 Enquire
6A341 LR082353
WASHER - CRANKSHAFT MAIN BRG THRUST
2.0L I4 DSL HIGH DOHC AJ200 / From: JT000001 		- 2 Enquire
6211A LR073807
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Lower, Red / From: GT000001 		- 4 Enquire
6211A LR073810
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Lower, Yellow / From: GT000001 		- 4 Enquire
6211A LR073812
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Blue, Lower / From: GT000001 		- 4 Enquire
6211A LR082377
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Lower, Red / From: JT000001 		- 4 Enquire
6211A LR082378
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Lower, Yellow / From: JT000001 		- 4 Enquire
6211A LR082379
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Blue, Lower / From: JT000001 		- 4 Enquire
6211B LR073813
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Red, Upper / From: GT000001 		- 4 Enquire
6211B LR073814
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Upper, Yellow / From: GT000001 		- 4 Enquire
6211B LR073815
BEARING - CONNECTING ROD
2.0L I4 DSL MID DOHC AJ200 / Blue, Upper / From: GT000001 		- 4 Enquire
6211B LR082380
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Red, Upper / From: JT000001 		- 4 Enquire
6211B LR082381
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Upper, Yellow / From: JT000001 		- 4 Enquire
6211B LR082382
BEARING - CONNECTING ROD
2.0L I4 DSL HIGH DOHC AJ200 / Blue, Upper / From: JT000001 		- 4 Enquire
6214 LR092624
BOLT - CONNECTING ROD
From: GT000001 		- 8 Enquire
6333A LR074091
BEARING - CRANKSHAFT MAIN
Red, Upper / From: GT000001 / To: HT999999 		- 5 Enquire
6333A LR074092
BEARING - CRANKSHAFT MAIN
Upper, Yellow / From: GT000001 / To: HT999999 		- 5 Enquire
6333A LR074093
BEARING - CRANKSHAFT MAIN
Blue, Upper / From: GT000001 / To: HT999999 		- 5 Enquire
6333A LR074094
BEARING - CRANKSHAFT MAIN
Green, Upper / From: GT000001 / To: HT999999 		- 5 Enquire
6333A LR111072
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Red, Upper / From: JT000001 		- 5 Enquire
6333A LR111073
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Upper, Yellow / From: JT000001 		- 5 Enquire
6333A LR111074
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Blue, Upper / From: JT000001 		- 5 Enquire
6333A LR111067
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Red, Upper / From: JT000001 		- 5 Enquire
6333A LR111070
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Upper, Yellow / From: JT000001 		- 5 Enquire
6333A LR111071
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Blue, Upper / From: JT000001 		- 5 Enquire
6333B LR074087
BEARING - CRANKSHAFT MAIN
Lower, Red / From: GT000001 / To: HT999999 		- 5 Enquire
6333B LR074088
BEARING - CRANKSHAFT MAIN
Lower, Yellow / From: GT000001 / To: HT999999 		- 5 Enquire
6333B LR074089
BEARING - CRANKSHAFT MAIN
Blue, Lower / From: GT000001 / To: HT999999 		- 5 Enquire
6333B LR074090
BEARING - CRANKSHAFT MAIN
Green, Lower / From: GT000001 / To: HT999999 		- 5 Enquire
6333B LR111062
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Lower, Red / From: JT000001 		- 5 Enquire
6333B LR111063
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Lower, Yellow / From: JT000001 		- 5 Enquire
6333B LR111064
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL HIGH DOHC AJ200 / Blue, Lower / From: JT000001 		- 5 Enquire
6333B LR110953
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Lower, Red / From: JT000001 		- 5 Enquire
6333B LR110954
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Lower, Yellow / From: JT000001 		- 5 Enquire
6333B LR110955
BEARING - CRANKSHAFT MAIN
2.0L I4 DSL MID DOHC AJ200 / Blue, Lower / From: JT000001 		- 5 Enquire
6345 LR083619
BOLT - BEARING CAP - HEX. HEAD
From: GT000001 / To: GT999999 		- 10 Enquire
6345 LR083619
BOLT - BEARING CAP - HEX. HEAD
From: HT000001 		- 10 Enquire
