Name: Accelerator/Injection Pump Controls (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200, 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA)
Rating: 4.7 (1 reviews)

Accelerator/Injection Pump Controls (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH DOHC AJ200, 2.0L AJ20D4 Diesel High PTA, 2.0L AJ20D4 Diesel Mid PTA, 2.0L AJ20D4 Diesel LF PTA) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Accelerator/Injection Pump Controls (2.0L I4 DSL MID DOHC AJ200, Halewood (UK), 2.0L I4 DSL HIGH...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061005	PEDAL AND BRACKET - ACCELERATOR	$240.37	To Order
	LR061004	PEDAL AND BRACKET - ACCELERATOR	$213.65	To Order
	LR061002	PEDAL AND BRACKET - ACCELERATOR	$241.55	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR105645	PEDAL AND BRACKET - ACCELERATOR	$239.68	To Order
	LR105646	PEDAL AND BRACKET - ACCELERATOR	$247.59	To Order
	LR105647	PEDAL AND BRACKET - ACCELERATOR	$247.59	To Order

...and 5 more part variants. See table on right for more details.

View All

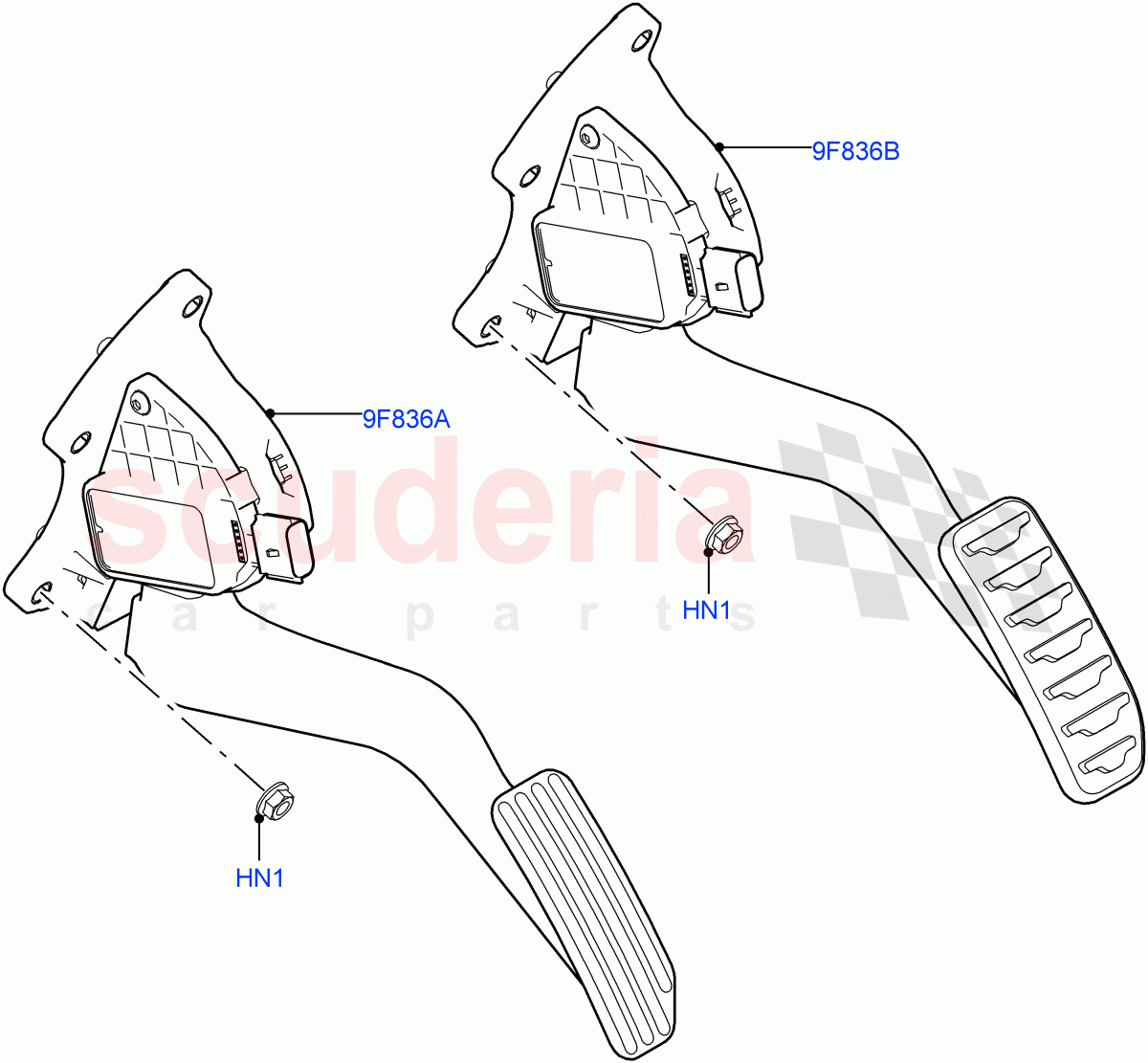

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: GH000001 IN STOCK	$1.45	3
9F836A	LR061005	PEDAL AND BRACKET - ACCELERATOR	LR061005 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans M66 - AWD, RHD, Standard Foot Pedal Pad Design / From: GH000001 / To: JH301832	$240.37	1
9F836A	LR061004	PEDAL AND BRACKET - ACCELERATOR	LR061004 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans-JLR M66 2WD, LHD, Standard Foot Pedal Pad Design / From: GH000001 / To: JH301832	$213.65	1
9F836A	LR061002	PEDAL AND BRACKET - ACCELERATOR	LR061002 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, LHD, Standard Foot Pedal Pad Design / From: GH000001 / To: JH301832	$241.55	1
9F836A	LR061003	PEDAL AND BRACKET - ACCELERATOR	LR061003 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, RHD, Standard Foot Pedal Pad Design / From: GH000001 / To: JH301832	$229.29	1
9F836A	LR113937	PEDAL AND BRACKET - ACCELERATOR	LR113937 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, LHD, Standard Foot Pedal Pad Design / From: JH301833	$224.82	1
9F836A	LR113939	PEDAL AND BRACKET - ACCELERATOR	LR113939 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, RHD, Standard Foot Pedal Pad Design / From: JH301833	$245.88	1
9F836A	LR113867	PEDAL AND BRACKET - ACCELERATOR	LR113867 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans M66 - AWD, LHD, Standard Foot Pedal Pad Design / From: JH301833	$224.45	1
9F836A	LR113874	PEDAL AND BRACKET - ACCELERATOR	LR113874 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans-JLR M66 2WD, RHD, Standard Foot Pedal Pad Design / From: JH301833	$247.59	1
9F836B	LR105645	PEDAL AND BRACKET - ACCELERATOR	LR105645 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, LHD, Unique Met Finish Foot Pedals Pads / From: GH000001 / To: JH301832	$239.68	1
9F836B	LR105646	PEDAL AND BRACKET - ACCELERATOR	LR105646 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, RHD, Unique Met Finish Foot Pedals Pads / From: GH000001 / To: JH301832	$247.59	1
9F836B	LR105647	PEDAL AND BRACKET - ACCELERATOR	LR105647 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans M66 - AWD, LHD, Unique Met Finish Foot Pedals Pads / From: GH000001 / To: JH307131	$247.59	1
9F836B	LR105648	PEDAL AND BRACKET - ACCELERATOR	LR105648 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans-JLR M66 2WD, RHD, Unique Met Finish Foot Pedals Pads / From: GH000001 / To: JH307131	$247.59	1
9F836B	LR113876	PEDAL AND BRACKET - ACCELERATOR	LR113876 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans M66 - AWD, LHD, Unique Met Finish Foot Pedals Pads / From: JH307132	$252.54	1
9F836B	LR113877	PEDAL AND BRACKET - ACCELERATOR	LR113877 PEDAL AND BRACKET - ACCELERATOR 6 Speed Manual Trans-JLR M66 2WD, RHD, Unique Met Finish Foot Pedals Pads / From: JH307132	$240.39	1
9F836B	LR113940	PEDAL AND BRACKET - ACCELERATOR	LR113940 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, LHD, Unique Met Finish Foot Pedals Pads / From: JH301833	$205.15	1
9F836B	LR113941	PEDAL AND BRACKET - ACCELERATOR	LR113941 PEDAL AND BRACKET - ACCELERATOR 9 Speed Auto AWD, RHD, Unique Met Finish Foot Pedals Pads / From: JH301833	$212.00	1
