Steering Column ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Steering Column ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
QRH100030 BOLT $6.02 To Order
Photo Part No Description Price (each) Stock
QYG500021 BOLT $4.50 To Order
QYG500021 BOLT $4.50 To Order
Photo Part No Description Price (each) Stock
QYG500032 BOLT $1.16 To Order
Photo Part No Description Price (each) Stock
QYG500100 BOLT $3.04 To Order
Photo Part No Description Price (each) Stock
QYG500110 BOLT $5.71 To Order
Photo Part No Description Price (each) Stock
DWO500080 GROMMET $1.86 To Order
Photo Part No Description Price (each) Stock
QYH10005L NUT - FLANGED $2.89 To Order
Photo Part No Description Price (each) Stock
QYP500030 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
QMW500030 BOLT $1.00 To Order
Photo Part No Description Price (each) Stock
QYP500100 SCREW $0.80 To Order
Photo Part No Description Price (each) Stock
LR018778 ABSORBER - STEERING COLUMN $78.80 To Order
Photo Part No Description Price (each) Stock
LR014099 LOCK - STEERING COLUMN $579.86 To Order
LR014098 HOUSING - STEERING & IGNITION LOCK $61.59 To Order
LR041673 HOUSING - STEERING & IGNITION LOCK $317.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014078 STEERING COLUMN $1,724.40 To Order
LR025051 STEERING COLUMN $1,730.36 To Order
LR031490 STEERING COLUMN $1,788.38 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014079 STEERING COLUMN $932.11 To Order
LR025052 STEERING COLUMN $935.34 To Order
LR031491 STEERING COLUMN $3,036.11 To Order
Photo Part No Description Price (each) Stock
QLB500070 SHAFT $121.32 To Order
Photo Part No Description Price (each) Stock
QMN500240 SHAFT - STEERING $171.39 To Order
QMN500250 SHAFT - STEERING $171.39 To Order
LR071146 SHAFT - STEERING $386.47 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
QRI500011 INSERT $159.38 To Order
Photo Part No Description Price (each) Stock
LR011512 SENSOR - STEERING ROTATION $371.98 To Order
LR052196 SENSOR - STEERING ROTATION $132.60 To Order
Photo Part No Description Price (each) Stock
QMH500100 SEAL $15.64 To Order
Photo Part No Description Price (each) Stock
QMH500110 SEAL $8.47 To Order
View All

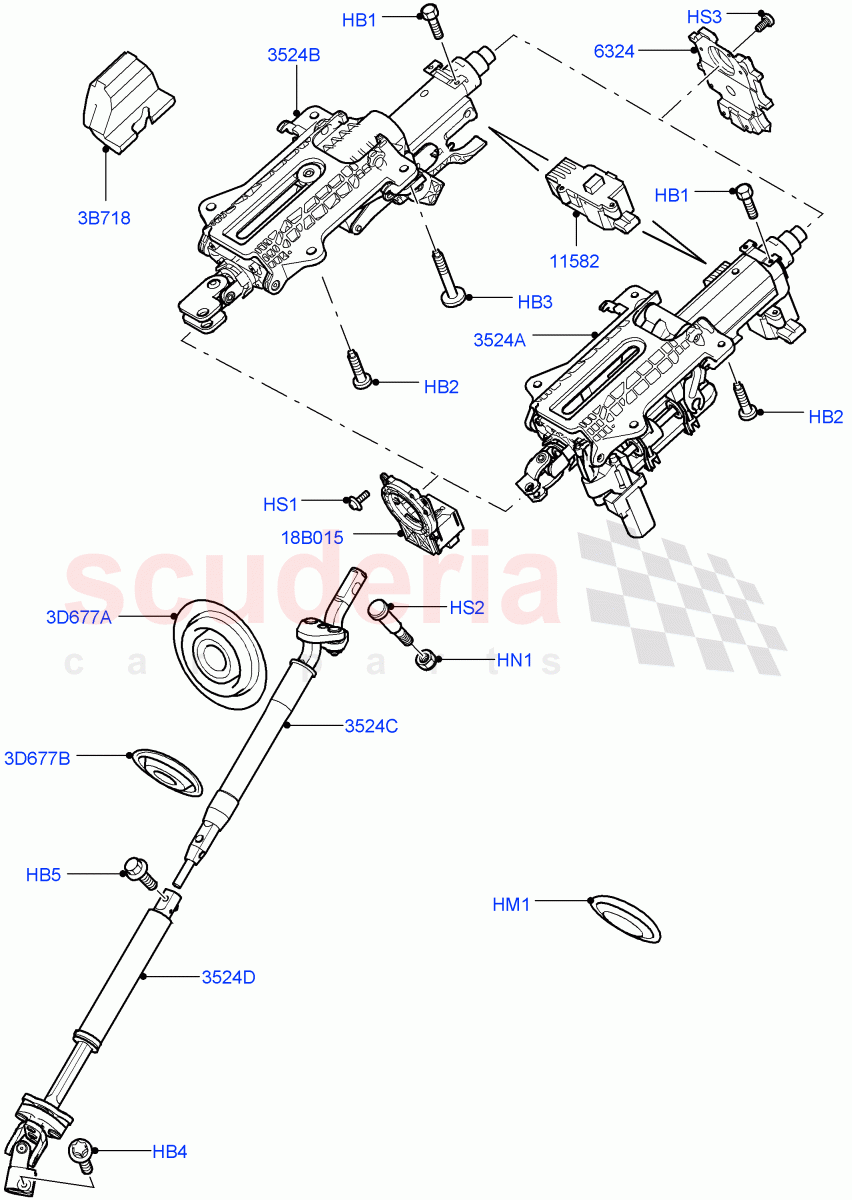

Steering Column ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 QRH100030
BOLT
Lock / From: AA000001 		$6.02 2
HB2 QYG500021
BOLT
Elec. Tilt & Reach Adj Strng Colmn / M8 X 30 / From: AA000001 		$4.50 4
HB2 QYG500021
BOLT
With Manual Tilt & Reach Adj Column / M8 X 30 / From: AA000001 		$4.50 2
HB3 QYG500032
BOLT
With Manual Tilt & Reach Adj Column / M8 x 55MM / From: AA000001 		$1.16 2
HB4 QYG500100
BOLT
M8 X 33MM / From: AA000001 		$3.04 1
HB5 QYG500110
BOLT
Lower, M8 X 1.25, Steering Shaft / From: AA000001 		$5.71 1
HM1 DWO500080
GROMMET
Cap / From: AA000001 		$1.86 1
HN1 QYH10005L
NUT - FLANGED
Flanged, M8 / From: AA000001 		$2.89 1
HS1 QYP500030
SCREW
4 x 14MM, Sensor / From: AA000001 		$0.77 3
HS2 QMW500030
BOLT
M8 x 40MM, Steering Shaft / From: AA000001 		$1.00 1
HS3 QYP500100
SCREW
Absorber Assy, M4 x 8MM / From: AA000001 		$0.80 3
3B718 QRI500011
INSERT
From: AA000001 		$159.38 1
3D677A QMH500100
SEAL
Steering Column To Bulkhead / From: AA000001 		$15.64 1
3D677B QMH500110
SEAL
Steering Joint / From: AA000001 		$8.47 1
18B015 LR011512
SENSOR - STEERING ROTATION
Steering Angle / From: AA000001 / To: DA999999 		$371.98 1
18B015 LR052196
SENSOR - STEERING ROTATION
Steering Angle / From: EA000001 		$132.60 1
3524A LR014078
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn / From: AA000001 / To: AA542770 		$1,724.40 1
3524A LR025051
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn / From: AA542771 / To: BA584522 		$1,730.36 1
3524A LR031490
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn / From: BA584523 / To: GA847269 		$1,788.38 1
3524A LR094612
STEERING COLUMN
Elec. Tilt & Reach Adj Strng Colmn / From: GA847270 		$8,506.01 1
3524B LR014079
STEERING COLUMN
With Manual Tilt & Reach Adj Column / From: AA000001 / To: AA542770 		$932.11 1
3524B LR025052
STEERING COLUMN
With Manual Tilt & Reach Adj Column / From: AA542771 / To: BA584522 		$935.34 1
3524B LR031491
STEERING COLUMN
With Manual Tilt & Reach Adj Column / From: BA584523 		$3,036.11 1
3524C QLB500070
SHAFT
Shaft, Upper / From: AA000001 		$121.32 1
3524D QMN500240
SHAFT - STEERING
RHD / Lower, Shaft / From: AA000001 / To: FA745550 		$171.39 1
3524D QMN500250
SHAFT - STEERING
LHD / Lower, Shaft / From: AA000001 / To: FA745550 		$171.39 1
3524D LR071146
SHAFT - STEERING
RHD / Lower, Shaft / From: FA745551 		$386.47 1
3524D LR071147
SHAFT - STEERING
LHD / Lower, Shaft / From: FA745551 		$386.47 1
6324 LR018778
ABSORBER - STEERING COLUMN
From: AA000001 		$78.80 1
11582 LR014099
LOCK - STEERING COLUMN
Electronic Locking Steering Column / From: AA000001 / To: CA651173 		$579.86 1
11582 LR014098
HOUSING - STEERING & IGNITION LOCK
Less Steering Column Lock / From: AA000001 		$61.59 1
11582 LR041673
HOUSING - STEERING & IGNITION LOCK
Electronic Locking Steering Column / From: CA651174 / To: DA693075 		$317.72 1
11582 LR056315
HOUSING - STEERING & IGNITION LOCK
Electronic Locking Steering Column / From: DA693076 		$373.00 1
