Parking Brake (Brake Shoes) ((V) Fromaa000001, (V) Toba583709)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA583709)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
SYP500020 SCREW $1.97 IN STOCK
LR018509 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR013680 BRAKE - REAR $259.05 To Order
LR013679 BRAKE - REAR $216.99 To Order
Photo Part No Description Price (each) Stock
SXS500011 SCREW - ADJUSTING $18.88 IN STOCK
Photo Part No Description Price (each) Stock
SMN500020 KIT - PARKING BRAKE SPRING REPAIR $40.16 To Order
Photo Part No Description Price (each) Stock
SFS500012 BRAKE SHOE $107.05 To Order
LR025151 KIT - BRAKE LINING $134.04 To Order
Photo Part No Description Price (each) Stock
LR013690 PLATE - BRAKE BACK $116.14 To Order
LR013692 PLATE - BRAKE BACK $106.39 To Order
LR020490 PLATE - BRAKE BACK $107.55 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SXR500010 ROD - PARKING PAWL ACTUATING $16.01 To Order
Photo Part No Description Price (each) Stock
SMN500012 KIT $16.73 To Order
View All

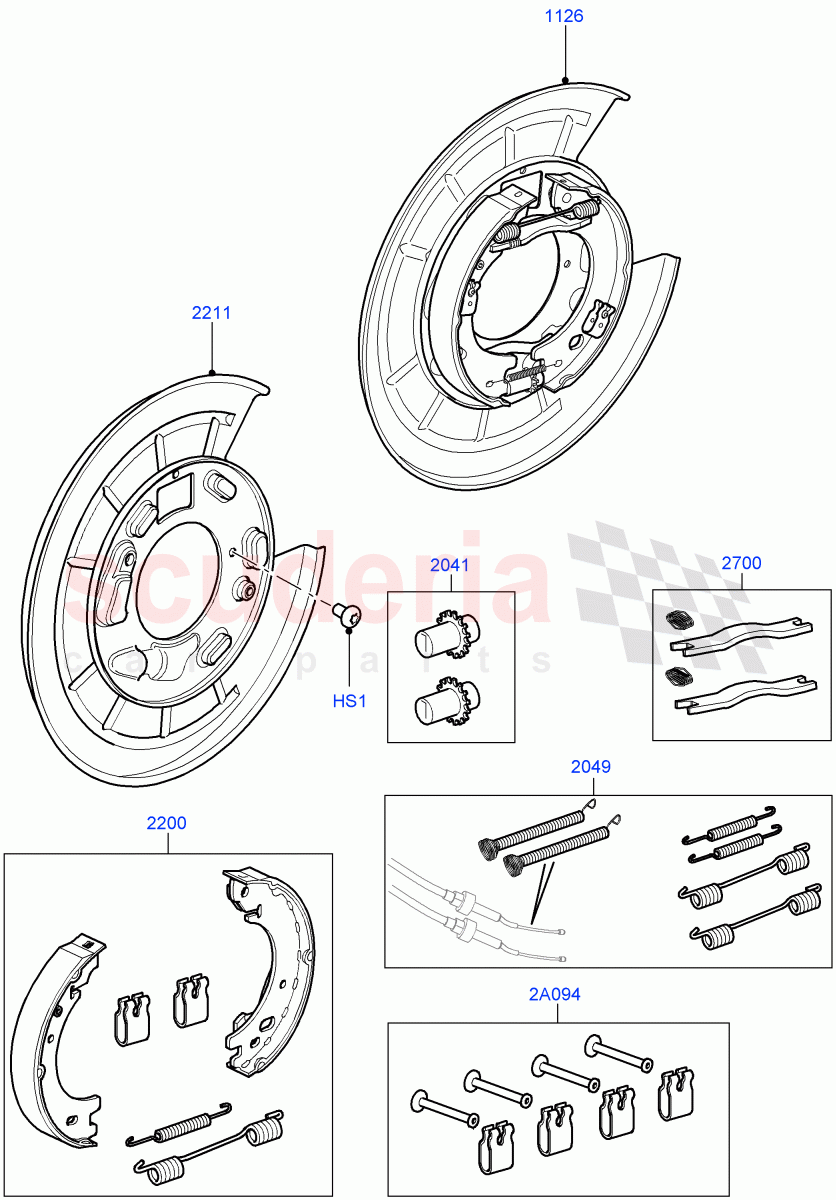

Parking Brake (Brake Shoes) ((V) FROMAA000001, (V) TOBA583709) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 SYP500020
SCREW
M6 X 10MM, Shield, Torx / From: AA000001 / To: AA518769
IN STOCK 		$1.97 6
HS1 LR018509
SCREW
M6 X 10MM, Shield, Torx / From: AA518770
IN STOCK 		$1.19 6
2A094 SMN500012
KIT
From: AA000001 		$16.73 1
1126 LR013680
BRAKE - REAR
LH, Complete Assembly / From: AA000001 		$259.05 1
1126 LR013679
BRAKE - REAR
RH, Complete Assembly / From: AA000001 		$216.99 1
2041 SXS500011
SCREW - ADJUSTING
From: AA000001
IN STOCK 		$18.88 1
2049 SMN500020
KIT - PARKING BRAKE SPRING REPAIR
From: AA000001 		$40.16 1
2200 SFS500012
BRAKE SHOE
From: AA000001 / To: AA546302 		$107.05 2
2200 LR025151
KIT - BRAKE LINING
From: AA546303 		$134.04 2
2211 LR013690
PLATE - BRAKE BACK
RH / From: AA000001 / To: AA536980 		$116.14 1
2211 LR013692
PLATE - BRAKE BACK
LH / From: AA000001 / To: AA536980 		$106.39 1
2211 LR020490
PLATE - BRAKE BACK
RH / From: AA536981 / To: AA546302 		$107.55 1
2211 LR020492
PLATE - BRAKE BACK
LH / From: AA536981 / To: AA546302 		$98.53 1
2211 LR025152
PLATE - BRAKE BACK
RH / From: AA546303 / To: AA547303 		$110.61 1
2211 LR025154
PLATE - BRAKE BACK
LH / From: AA546303 / To: AA547303 		$101.35 1
2211 LR048810
PLATE - BRAKE BACK
RH / From: AA547304 		$115.28 1
2211 LR048812
PLATE - BRAKE BACK
LH / From: AA547304 		$115.28 1
2700 SXR500010
ROD - PARKING PAWL ACTUATING
From: AA000001 		$16.01 1
