Auto Trans Assy & Speedometer Drive (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD) ((V) FROMCA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Auto Trans Assy & Speedometer Drive (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD) ((V)...

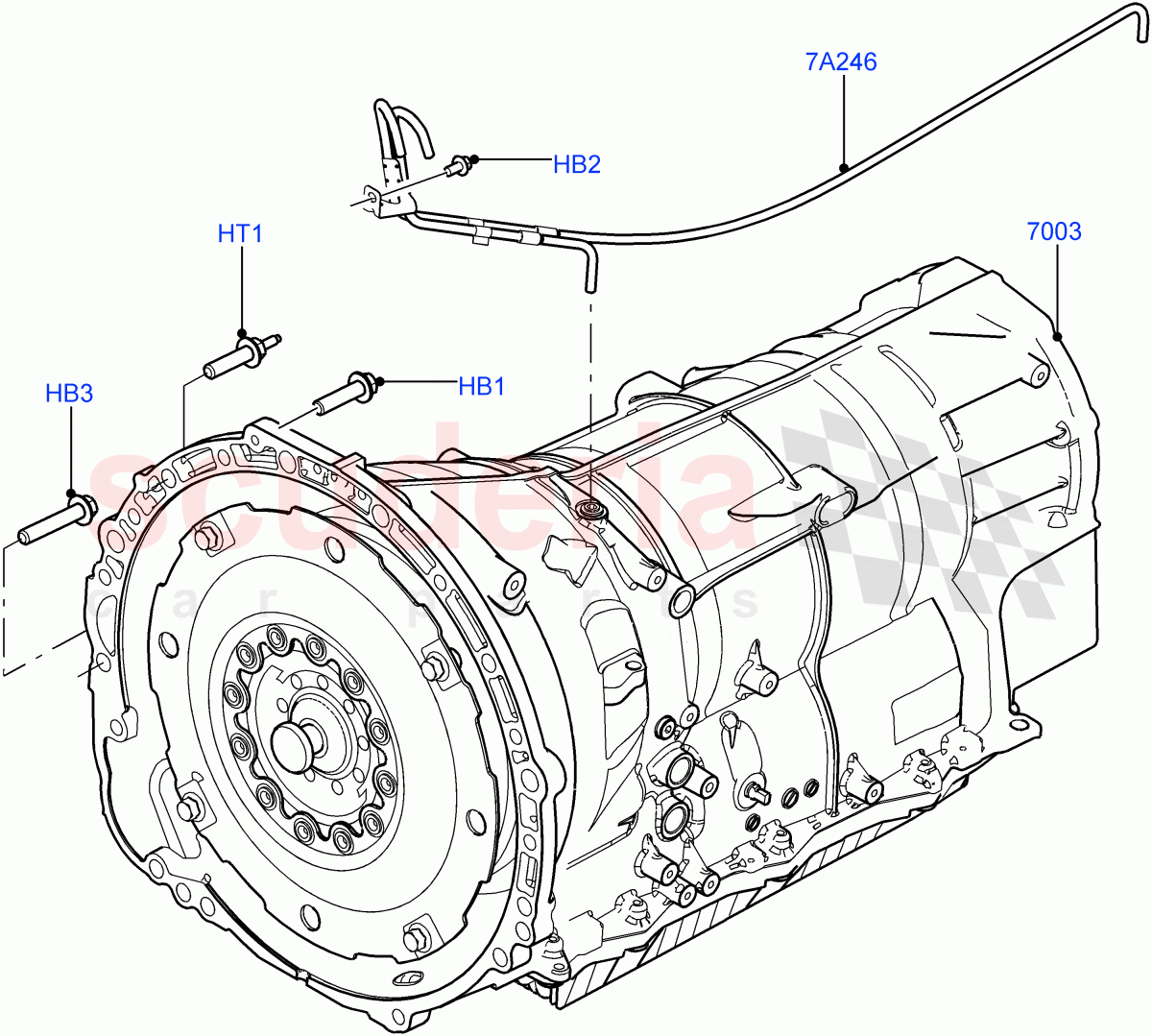

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110086	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110146	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYG500102	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030331	AUTOMATIC TRANSMISSION	Enquire	To Order
	LR029745	AUTOMATIC TRANSMISSION	Enquire	To Order
	LR043325	AUTOMATIC TRANSMISSION	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR023203	TUBE - TRANSMISSION VENTILATION	Enquire	To Order
	LR042384	TUBE - TRANSMISSION VENTILATION	Enquire	To Order
	LR080753	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB110086	BOLT - HEX.HEAD	FB110086 BOLT - HEX.HEAD M10 x 40MM / From: CA000001	-	12	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: CA000001	-	1	Enquire
HB3	FB110146	BOLT - HEX.HEAD	FB110146 BOLT - HEX.HEAD Hexagonal Head, M10 x 70MM / From: CA000001	-	1	Enquire
HT1	TYG500102	STUD	TYG500102 STUD M6 X 16MM + M10 X 38MM, Stud / From: CA000001	-	1	Enquire
7A246	LR023203	TUBE - TRANSMISSION VENTILATION	LR023203 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: CA000001 / To: CA645071	-	1	Enquire
7A246	LR042384	TUBE - TRANSMISSION VENTILATION	LR042384 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: CA645072 / To: GA833368	-	1	Enquire
7A246	LR080753	TUBE - TRANSMISSION VENTILATION	LR080753 TUBE - TRANSMISSION VENTILATION 3.0 V6 Diesel / Gearbox, Includes Bracket, Transfer Box / From: GA833369	-	1	Enquire
7003	LR030331	AUTOMATIC TRANSMISSION	LR030331 AUTOMATIC TRANSMISSION Includes Converter, New Part-Please Check For Reman Version / From: CA000001 / To: CA635555	-	1	Enquire
7003	LR029745	AUTOMATIC TRANSMISSION	LR029745 AUTOMATIC TRANSMISSION (-) Australia, (-) India, For UK and ROW markets except USA, Russia, China, Brazil, Includes Converter, Remanufactured Part / From: CA000001 / To: CA635555	-	1	Enquire
7003	LR043325	AUTOMATIC TRANSMISSION	LR043325 AUTOMATIC TRANSMISSION Includes Converter, New Part-Please Check For Reman Version / From: CA635556 / To: DA999999	-	1	Enquire
7003	LR036585	AUTOMATIC TRANSMISSION	LR036585 AUTOMATIC TRANSMISSION Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version / From: EA000001 / To: FA999999	-	1	Enquire
7003	LR043325	AUTOMATIC TRANSMISSION	LR043325 AUTOMATIC TRANSMISSION Standard Electric Starter Motor / Includes Converter, New Part-Please Check For Reman Version / From: EA000001	-	1	Enquire
7003	LR071402	AUTOMATIC TRANSMISSION	LR071402 AUTOMATIC TRANSMISSION Starter - Stop/Start System / Includes Converter, New Part-Please Check For Reman Version / From: GA000001	-	1	Enquire
7003	LR044435	AUTOMATIC TRANSMISSION	LR044435 AUTOMATIC TRANSMISSION Standard Electric Starter Motor / (-) Australia, (-) India, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: CA635556	-	1	Enquire
7003	LR036588	AUTOMATIC TRANSMISSION	LR036588 AUTOMATIC TRANSMISSION 3.0L 24V V6 Turbo Diesel Std Flow, Starter - Stop/Start System / (-) Australia, (-) India, For UK, ROW And USA Markets Except Russia, China, Brazil, Includes Converter, Remanufactured Part / From: EA000001 / To: FA999999	-	1	Enquire
7003	LR071404	AUTOMATIC TRANSMISSION	LR071404 AUTOMATIC TRANSMISSION Starter - Stop/Start System / Includes Converter, Remanufactured Part / From: GA000001	-	1	Enquire
