Manual Transaxle And Case (6 Speed Man Zf S6-53) ((V) Fromaa000001, (V) Toba999999)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Manual Transaxle And Case (6 Speed Man ZF S6-53) ((V) FROMAA000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB110086 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
TRC500013 TRANSMISSION - NEW Enquire To Order
Photo Part No Description Price (each) Stock
TRG000082 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR017456 BRACKET Enquire To Order
View All

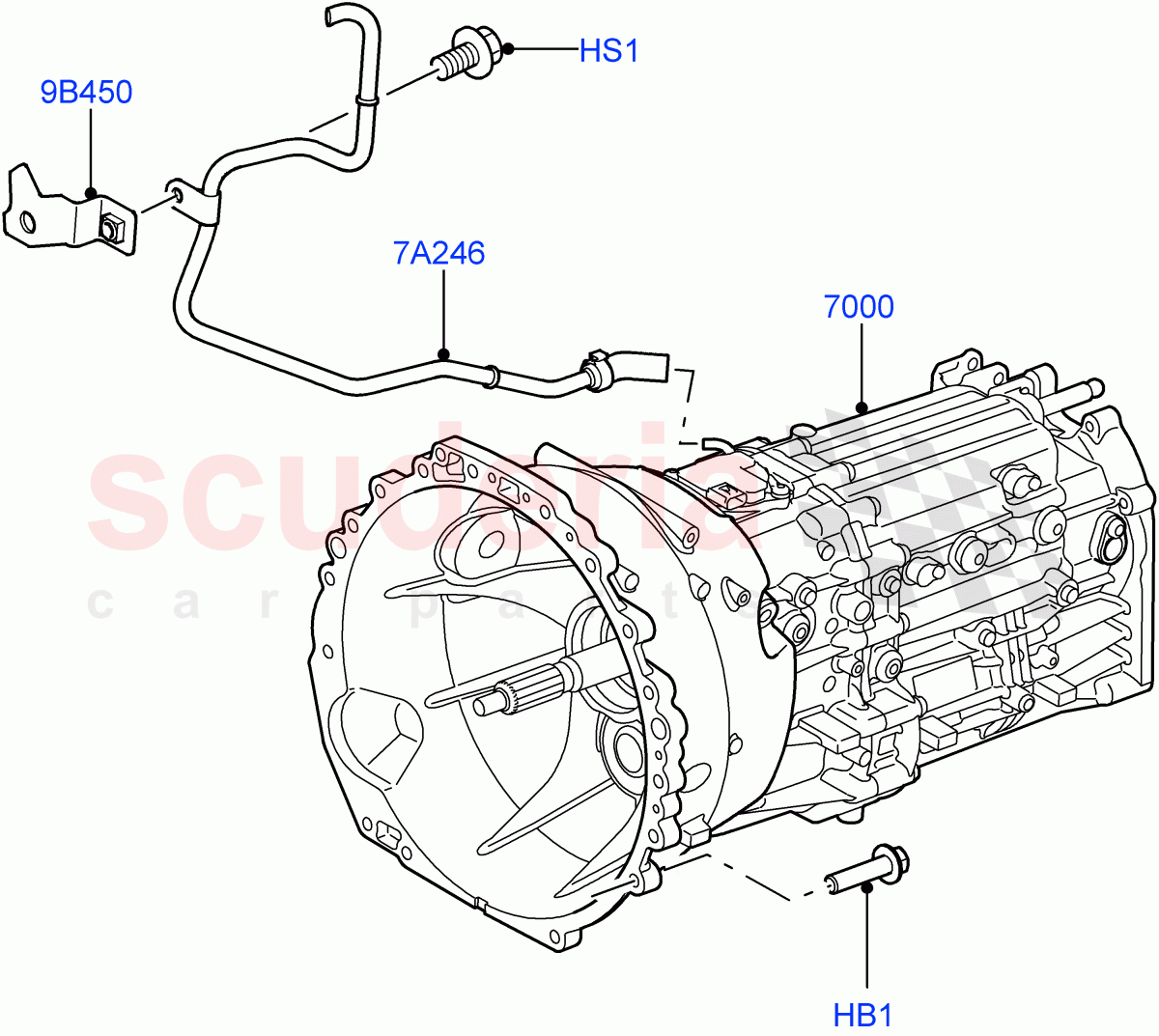

Manual Transaxle And Case (6 Speed Man ZF S6-53) ((V) FROMAA000001, (V) TOBA999999) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB110086
BOLT - HEX.HEAD
M10 x 40MM / From: AA000001 		- 16 Enquire
HS1 FS106127L
SCREW
HEX Flange, M6 x 12MM / From: AA000001 		- 1 Enquire
7A246 TRG000082
TUBE - BREATHER
To Transmission / From: AA000001 		- 1 Enquire
9B450 LR017456
BRACKET
To Vacuum / From: AA000001 		- 1 Enquire
7000 TRC500013
TRANSMISSION - NEW
New Part-Please Check For Reman Version / From: AA000001 		- 1 Enquire
