Heat Shields - Exhaust System (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Heat Shields - Exhaust System (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

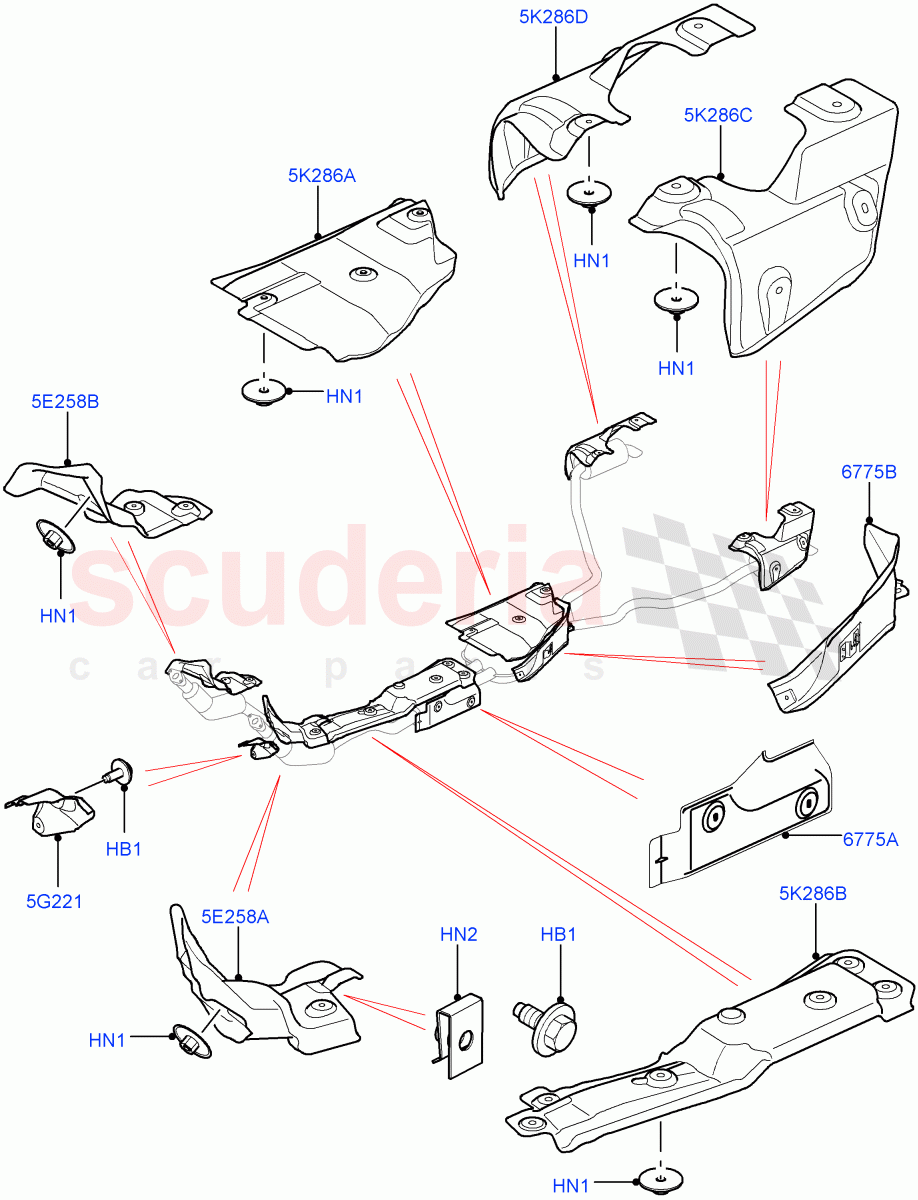

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KQG500300	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500690	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KRO500231	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013545	SHIELD - EXHAUST PIPE	Enquire	To Order
	LR069248	SHIELD - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013150	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500144	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500750	HEAT SHIELD	Enquire	To Order
	LR020125	HEAT SHIELD - EXHAUST	Enquire	To Order
	LR043377	HEAT SHIELD - EXHAUST	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WEB000493	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB000483	HEAT SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD M6 X 16MM / From: AA000001	-	3	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5 / From: AA000001	-	25	Enquire
HN2	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / From: AA000001	-	3	Enquire
5E258A	LR013545	SHIELD - EXHAUST PIPE	LR013545 SHIELD - EXHAUST PIPE LH, Front, Lower / From: AA000001 / To: FA999999	-	1	Enquire
5E258A	LR069248	SHIELD - EXHAUST PIPE	LR069248 SHIELD - EXHAUST PIPE LH, Front, Lower / From: GA000001	-	1	Enquire
5E258B	LR013150	SHIELD	LR013150 SHIELD RH, Front, Lower / From: AA000001	-	1	Enquire
5G221	KQG500300	HEAT SHIELD	KQG500300 HEAT SHIELD LH, Front / From: AA000001	-	1	Enquire
5K286A	WEB500144	HEAT SHIELD	WEB500144 HEAT SHIELD Centre / From: AA000001	-	1	Enquire
5K286B	WEB500750	HEAT SHIELD	WEB500750 HEAT SHIELD Intermediate / From: AA000001 / To: AA522702	-	1	Enquire
5K286B	LR020125	HEAT SHIELD - EXHAUST	LR020125 HEAT SHIELD - EXHAUST Intermediate / From: AA522703 / To: CA620737	-	1	Enquire
5K286B	LR043377	HEAT SHIELD - EXHAUST	LR043377 HEAT SHIELD - EXHAUST Intermediate / From: CA620738 / To: CA999999	-	1	Enquire
5K286B	LR076832	HEAT SHIELD - EXHAUST	LR076832 HEAT SHIELD - EXHAUST Intermediate / From: DA000001 / To: EA709728	-	1	Enquire
5K286B	LR060755	HEAT SHIELD - EXHAUST	LR060755 HEAT SHIELD - EXHAUST Intermediate / From: EA709729 / To: FA765645	-	1	Enquire
5K286B	LR076832	HEAT SHIELD - EXHAUST	LR076832 HEAT SHIELD - EXHAUST Intermediate / From: FA765646 / To: FA999999	-	1	Enquire
5K286B	LR069247	SHIELD - EXHAUST MANIFOLD HEAT	LR069247 SHIELD - EXHAUST MANIFOLD HEAT Intermediate / From: GA000001	-	1	Enquire
5K286C	WEB000493	HEAT SHIELD	WEB000493 HEAT SHIELD Rear LH / From: AA000001	-	1	Enquire
5K286D	WEB000483	HEAT SHIELD	WEB000483 HEAT SHIELD Rear RH / From: AA000001	-	1	Enquire
6775A	WEB500690	SHIELD	WEB500690 SHIELD LH, "Taurus G" Nameplate, Intermediate / From: AA000001	-	1	Enquire
6775B	KRO500231	SHIELD	KRO500231 SHIELD LH / From: AA000001	-	1	Enquire
