Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Fuel Lines (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010546 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
KYP500360 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.45 IN STOCK
Photo Part No Description Price (each) Stock
LR013822 PIPE - FUEL $345.85 To Order
LR021660 PIPE - FUEL $329.31 To Order
Photo Part No Description Price (each) Stock
LR010806 VALVE - FUEL VAPOUR $112.07 To Order
Photo Part No Description Price (each) Stock
LR013820 MANIFOLD - FUEL SUPPLY $235.30 To Order
Photo Part No Description Price (each) Stock
LR015391 TUBE - FUEL VAPOUR SEPARATOR $110.50 To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE $12.22 To Order
Photo Part No Description Price (each) Stock
LR015356 SENSOR - FUEL INJECTOR PRESSURE $106.24 To Order
Photo Part No Description Price (each) Stock
WJU000265 BRACKET $9.02 To Order
View All

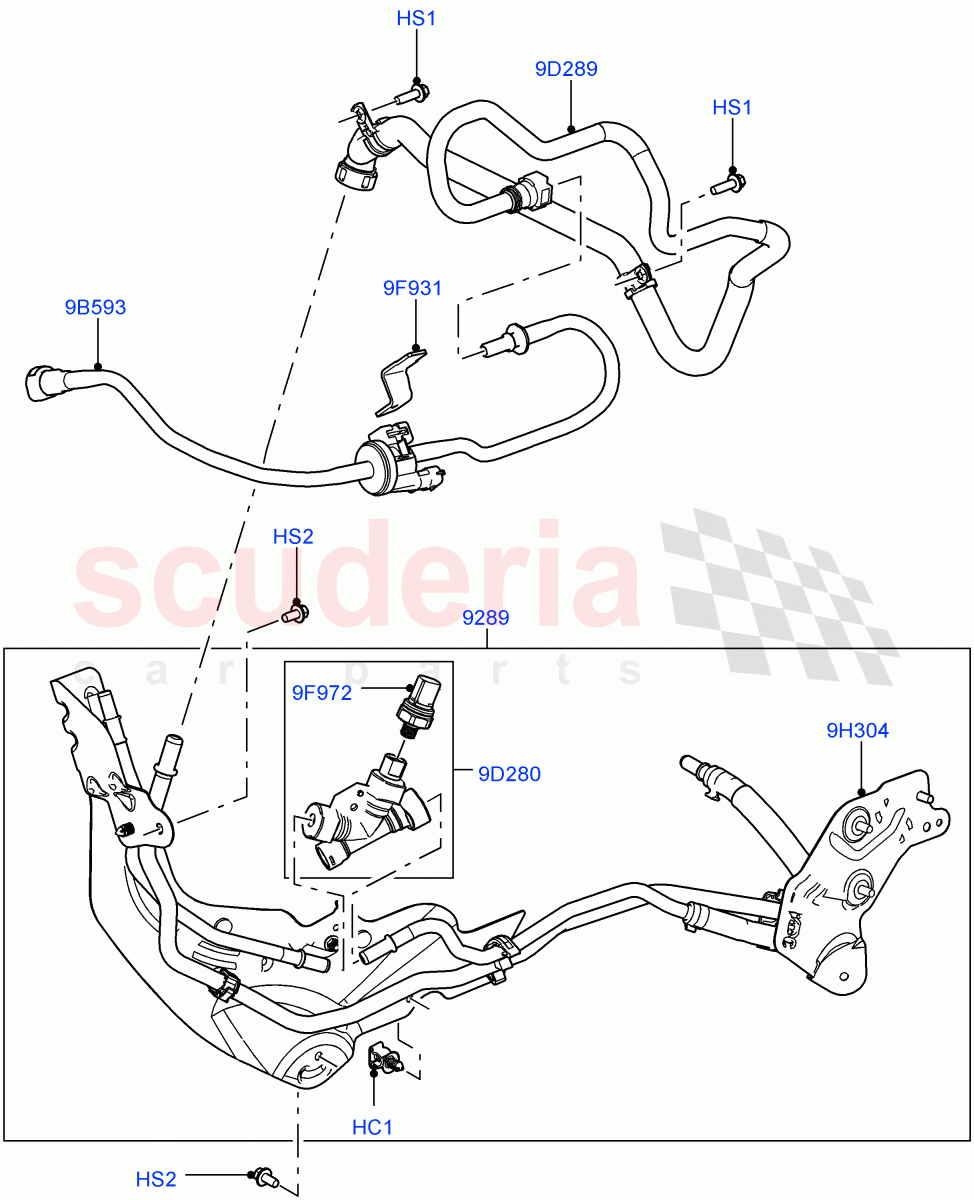

Fuel Lines (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR010546
CLIP
6 -12 X 0.7 / From: AA000001 		$1.00 1
HS1 KYP500360
SCREW
M6 X 20MM / From: AA000001 		$0.76 2
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: AA000001
IN STOCK 		$0.45 2
9B593 LR010806
VALVE - FUEL VAPOUR
To Engine, Vapour Line / From: AA000001 		$112.07 1
9D280 LR013820
MANIFOLD - FUEL SUPPLY
With Sensor / From: AA000001 		$235.30 1
9D289 LR015391
TUBE - FUEL VAPOUR SEPARATOR
From Under Floor Pipes To Vapour Valve, Vapour Line / From: AA000001 		$110.50 1
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE
Fuel Vapour Valve / From: AA000001 		$12.22 1
9F972 LR015356
SENSOR - FUEL INJECTOR PRESSURE
From: AA000001 		$106.24 1
9H304 WJU000265
BRACKET
From: AA000001 		$9.02 1
9289 LR013822
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: AA000001 / To: AA528527 		$345.85 1
9289 LR021660
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: AA528528 		$329.31 1
