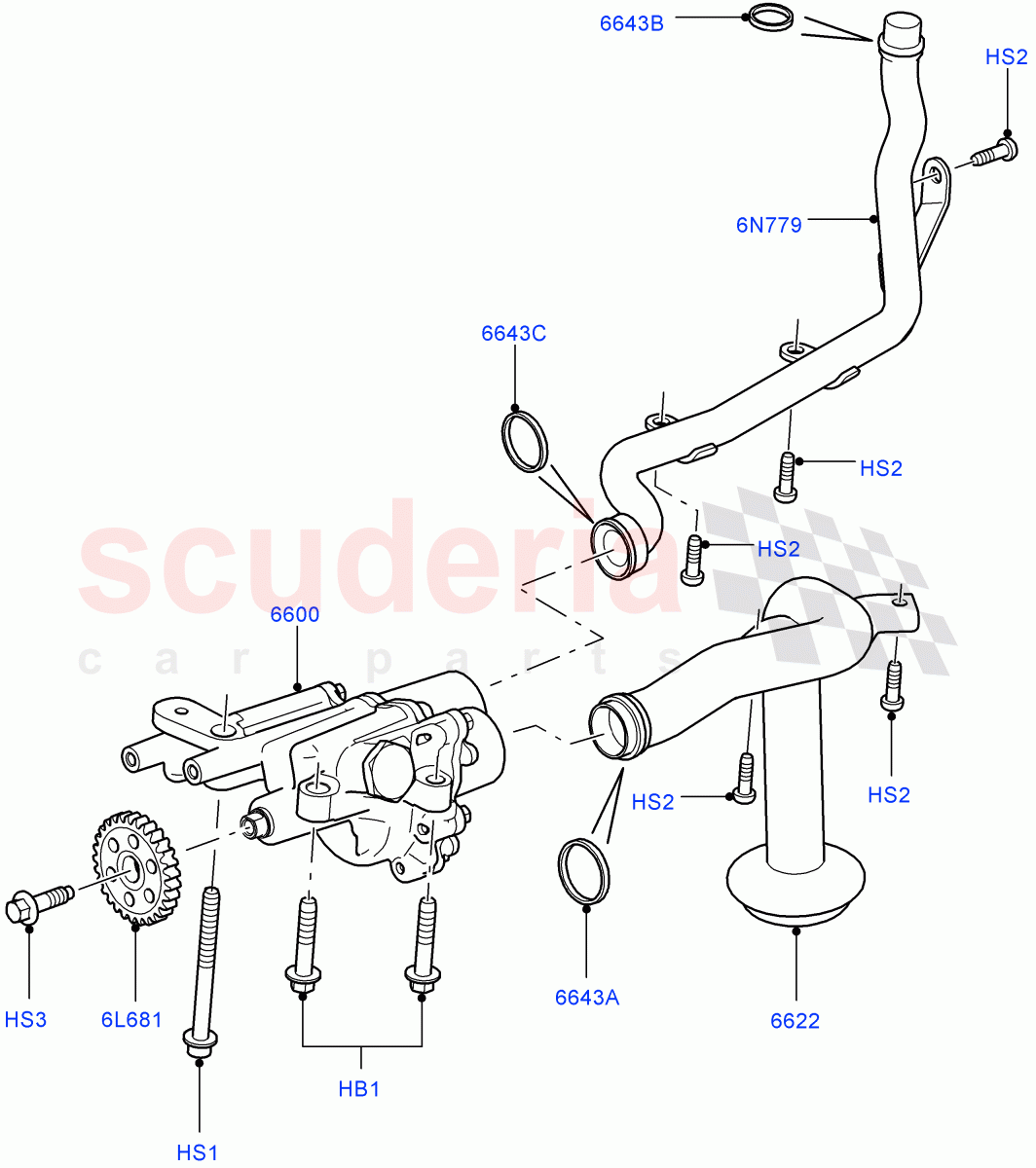

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011274	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4540794	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011311	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011205	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011213	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011214	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011218	SPROCKET - OIL PUMP DRIVE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR010903	BOLT	LR010903 BOLT M8 x 40MM, Oil Pump / From: AA000001	-	2	Enquire
HS1	LR011274	SCREW	LR011274 SCREW Oil Pump / From: AA000001	-	1	Enquire
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM / From: AA000001	-	5	Enquire
HS3	4540794	SCREW	4540794 SCREW M8 X 25MM, Sprocket - Drive / From: AA000001	-	1	Enquire
6L681	LR011218	SPROCKET - OIL PUMP DRIVE	LR011218 SPROCKET - OIL PUMP DRIVE Oil Pump Drive / From: AA000001	-	1	Enquire
6N779	LR011556	TUBE - OIL PUMP OUTLET	LR011556 TUBE - OIL PUMP OUTLET From: AA000001 / To: CA627795	-	1	Enquire
6N779	LR033676	TUBE - OIL PUMP OUTLET	LR033676 TUBE - OIL PUMP OUTLET From: CA627796	-	1	Enquire
6600	LR010703	PUMP - OIL	LR010703 PUMP - OIL From: AA000001 / To: CA627795	-	1	Enquire
6600	LR035118	PUMP - OIL	LR035118 PUMP - OIL From: CA627796 / To: DA683698	-	1	Enquire
6600	LR052436	PUMP - OIL	LR052436 PUMP - OIL From: DA683699	-	1	Enquire
6622	LR011311	TUBE - OIL PUMP INLET	LR011311 TUBE - OIL PUMP INLET From: AA000001	-	1	Enquire
6643A	LR011205	O-RING	LR011205 O-RING Seal Pump Inlet Tube / From: AA000001	-	1	Enquire
6643B	LR011213	O-RING	LR011213 O-RING	-	1	Enquire
6643C	LR011214	O-RING	LR011214 O-RING	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Oil Pump (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]
