Name: Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Vacuum Control And Air Injection (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

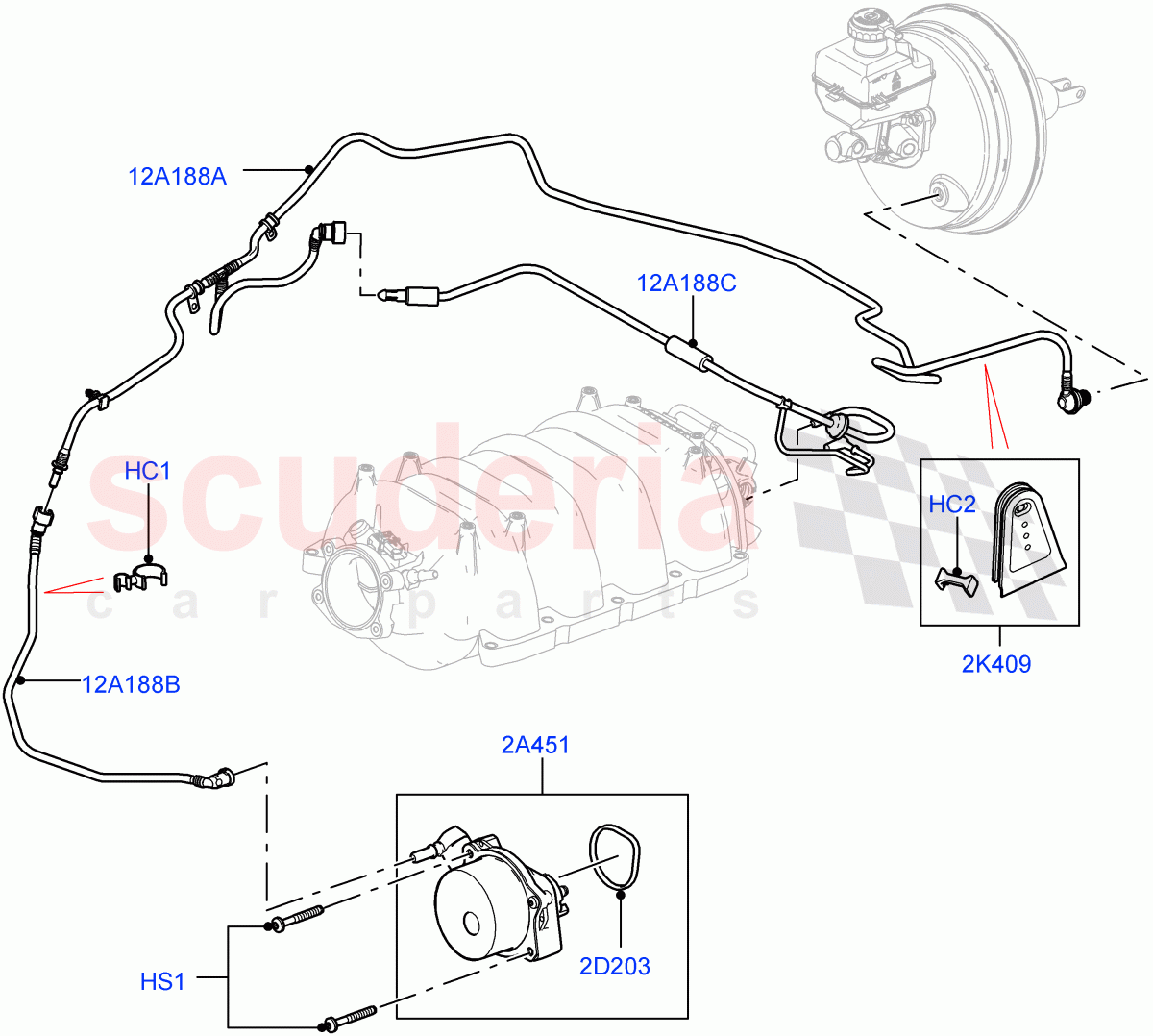

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009660	CLIP	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011273	SCREW	$3.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010690	PUMP - VACUUM	$587.85	To Order
	LR048796	PUMP - VACUUM	$446.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012685	SEAL - VACUUM PUMP	$19.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015539	HOSE - VACUUM	$121.75	To Order
	LR015540	HOSE - VACUUM	$121.75	To Order
	LR020553	HOSE - VACUUM	$116.08	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015541	HOSE - VACUUM	$121.75	To Order
	LR020554	HOSE - VACUUM	$150.22	To Order
	LR048231	HOSE - VACUUM	$58.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025086	HOSE - VACUUM	$59.75	To Order
	LR025086	HOSE - VACUUM	$59.75	To Order
	LR105295	HOSE - VACUUM	$59.75	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR009660	CLIP IN STOCK	LR009660 CLIP Double, Vacuum Pump Hose / From: AA000001 IN STOCK	$1.70	2
HS1	LR011273	SCREW IN STOCK	LR011273 SCREW M6 X 45MM, Pump - Vacuum / From: AA000001 IN STOCK	$3.39	2
2A451	LR010690	PUMP - VACUUM	LR010690 PUMP - VACUUM From: AA000001 / To: DA690192	$587.85	1
2A451	LR048796	PUMP - VACUUM	LR048796 PUMP - VACUUM From: DA690193	$446.75	1
2D203	LR012685	SEAL - VACUUM PUMP	LR012685 SEAL - VACUUM PUMP From: AA000001	$19.94	1
12A188A	LR015539	HOSE - VACUUM	LR015539 HOSE - VACUUM LHD / Brake Vacuum Booster / From: AA000001 / To: AA530156	$121.75	1
12A188A	LR015540	HOSE - VACUUM	LR015540 HOSE - VACUUM RHD / Brake Vacuum Booster / From: AA000001 / To: CA635314	$121.75	1
12A188A	LR020553	HOSE - VACUUM	LR020553 HOSE - VACUUM LHD / Brake Vacuum Booster / From: AA530157 / To: CA627251	$116.08	1
12A188A	LR038330	HOSE - VACUUM	LR038330 HOSE - VACUUM LHD / Brake Vacuum Booster / From: CA627252 / To: DA653235	$121.11	1
12A188A	LR038331	HOSE - VACUUM	LR038331 HOSE - VACUUM RHD / Brake Vacuum Booster / From: CA635315 / To: DA675261	$146.67	1
12A188A	LR048230	HOSE - VACUUM	LR048230 HOSE - VACUUM RHD / Brake Vacuum Booster / From: DA675262	$150.60	1
12A188A	LR046111	HOSE - VACUUM	LR046111 HOSE - VACUUM LHD / Brake Vacuum Booster / From: DA653236	$121.71	1
12A188B	LR015541	HOSE - VACUUM	LR015541 HOSE - VACUUM Pump - Vacuum / From: AA000001 / To: AA533886	$121.75	1
12A188B	LR020554	HOSE - VACUUM	LR020554 HOSE - VACUUM Pump - Vacuum / From: AA533887 / To: DA659152	$150.22	1
12A188B	LR048231	HOSE - VACUUM	LR048231 HOSE - VACUUM Pump - Vacuum / From: DA659153	$58.12	1
12A188C	LR025086	HOSE - VACUUM	LR025086 HOSE - VACUUM From: AA000001 / To: AA999999	$59.75	1
12A188C	LR025086	HOSE - VACUUM	LR025086 HOSE - VACUUM From: BA000001 / To: CA600354	$59.75	1
12A188C	LR105295	HOSE - VACUUM	LR105295 HOSE - VACUUM From: CA600355	$59.75	1
