Radiator/Coolant Overflow Container (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYP500120 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
PYP000221 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AB608068 Screw Enquire To Order
LR020269 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
KGX500020 SPACER Enquire To Order
LR015830 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
LR015560 RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR176861 CAP - OVERFLOW CONTAINER Enquire To Order
Photo Part No Description Price (each) Stock
PCG500090 GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
PCU500091 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR016624 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
PCG500120 INSULATOR - RADIATOR SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
PDI500012 INSULATOR - RADIATOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR016206 SHROUD - RADIATOR FAN Enquire To Order
LR016207 SHROUD - RADIATOR FAN Enquire To Order
Photo Part No Description Price (each) Stock
LR016209 SHROUD - RADIATOR FAN Enquire To Order
LR016210 SHROUD - RADIATOR FAN Enquire To Order
LR026017 SHROUD - RADIATOR FAN Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013663 TANK - RADIATOR OVERFLOW Enquire To Order
LR020367 TANK - RADIATOR OVERFLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR016216 FOAM - SEALING Enquire To Order
LR028946 FOAM - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR007315 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
PDG500045 PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR012645 FAN AND MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR007314 VALVE - BLEEDER SCREW Enquire To Order
Photo Part No Description Price (each) Stock
PCJ500030 SENSOR - COOLANT LEVEL Enquire To Order
Photo Part No Description Price (each) Stock
LR021825 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR016215 SEAL Enquire To Order
View All

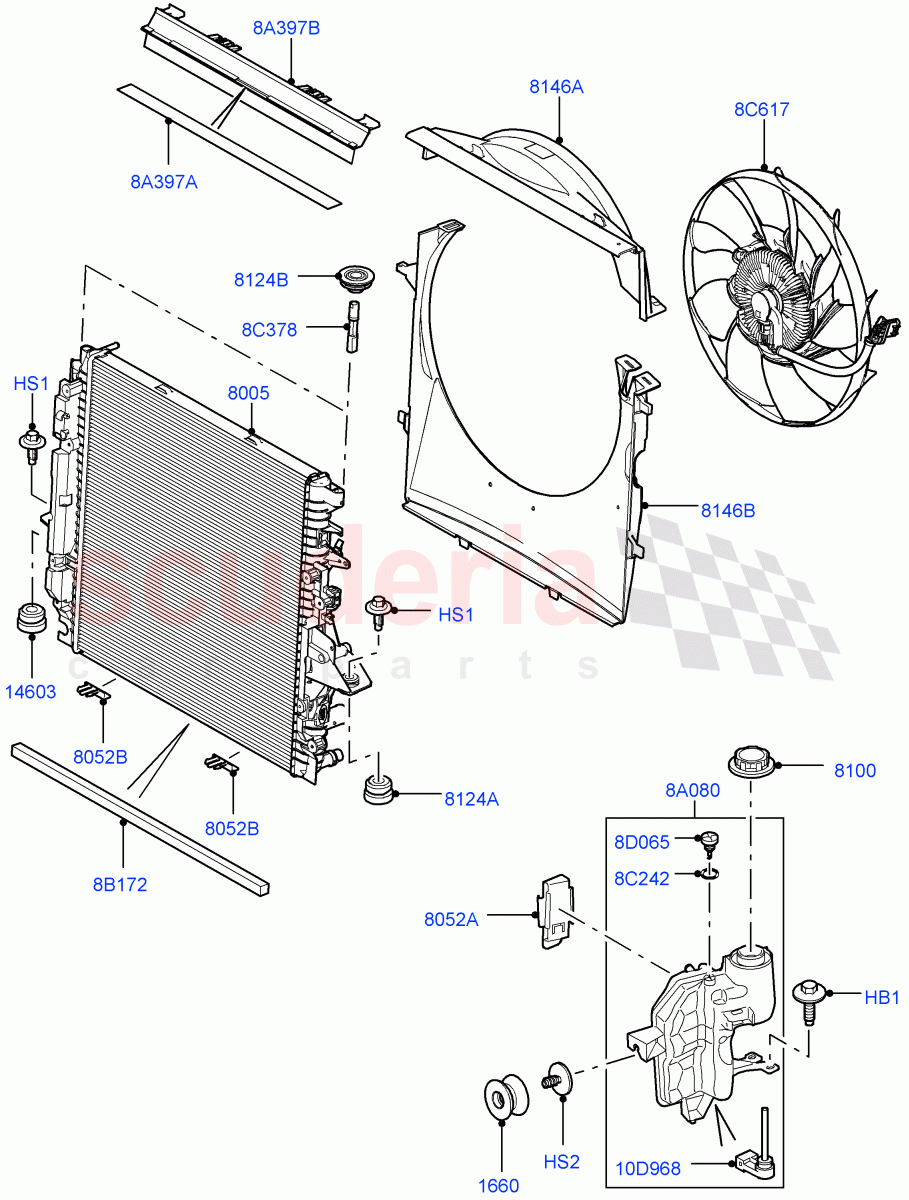

Radiator/Coolant Overflow Container (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 PYP500120
BOLT
M6 X 20MM / From: AA000001 		- 2 Enquire
HS1 PYP000221
SCREW AND WASHER
M8 X 25MM / From: AA000001 		- 2 Enquire
HS2 AB608068
Screw
4.2 X 19MM / From: AA000001 / To: AA523459 		- 1 Enquire
HS2 LR020269
SCREW
4.2 X 19MM / From: AA523460 		- 1 Enquire
8A080 LR013663
TANK - RADIATOR OVERFLOW
With Sensor / From: AA000001 / To: AA520252 		- 1 Enquire
8A080 LR020367
TANK - RADIATOR OVERFLOW
From: AA520253 		- 1 Enquire
8A397A LR021825
SEAL
Upper / From: AA000001 		- 1 Enquire
8A397B LR016215
SEAL
Upper / From: AA000001 		- 1 Enquire
8B172 LR016216
FOAM - SEALING
Lower / From: AA000001 / To: BA567684 		- 1 Enquire
8B172 LR028946
FOAM - SEALING
Lower / From: BA567685 		- 1 Enquire
8C242 LR007315
SEAL
Bleeder Screw / From: AA000001 		- 1 Enquire
8C378 PDG500045
PIN
Top / From: AA000001 		- 2 Enquire
8C617 LR012645
FAN AND MOTOR
From: AA000001 		- 1 Enquire
8D065 LR007314
VALVE - BLEEDER SCREW
Bleeder Screw / From: AA000001 		- 1 Enquire
10D968 PCJ500030
SENSOR - COOLANT LEVEL
From: AA000001 		- 1 Enquire
1660 KGX500020
SPACER
From: AA000001 / To: AA521655 		- 1 Enquire
1660 LR015830
SPACER
From: AA521656 		- 1 Enquire
8005 LR015560
RADIATOR
From: AA000001 		- 1 Enquire
8052A PCU500091
BRACKET
Expansion Reservoir Overflow / From: AA000001 		- 1 Enquire
8052B LR016624
BRACKET
Bottom / From: AA000001 		- 2 Enquire
8100 LR176861
CAP - OVERFLOW CONTAINER
From: AA000001 		- 1 Enquire
8124A PCG500120
INSULATOR - RADIATOR SUPPORT
LH, Lower, Round / From: AA000001 		- 1 Enquire
8124B PDI500012
INSULATOR - RADIATOR MOUNTING
Radiator Mounting, Top / From: AA000001 		- 2 Enquire
8146A LR016206
SHROUD - RADIATOR FAN
For Normal Temperature Zones / Upper / From: AA000001 		- 1 Enquire
8146A LR016207
SHROUD - RADIATOR FAN
For Hot Climate Zones / Upper / From: AA000001 		- 1 Enquire
8146B LR016209
SHROUD - RADIATOR FAN
For Normal Temperature Zones / Lower / From: AA000001 / To: BA552247 		- 1 Enquire
8146B LR016210
SHROUD - RADIATOR FAN
For Hot Climate Zones / Lower / From: AA000001 / To: BA552247 		- 1 Enquire
8146B LR026017
SHROUD - RADIATOR FAN
For Normal Temperature Zones / Lower / From: BA552248 / To: BA575735 		- 1 Enquire
8146B LR026018
SHROUD - RADIATOR FAN
For Hot Climate Zones / Lower / From: BA552248 / To: BA575735 		- 1 Enquire
8146B LR030052
SHROUD - RADIATOR FAN
For Normal Temperature Zones / Lower / From: BA575736 		- 1 Enquire
8146B LR030053
SHROUD - RADIATOR FAN
For Hot Climate Zones / Lower / From: BA575736 		- 1 Enquire
14603 PCG500090
GROMMET
RH, Lower, Round / From: AA000001 		- 1 Enquire
