Air Cleaner (5.0L Ohc Sgdi Na V8 Petrol - Aj133) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Air Cleaner (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR013711 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR013709 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR013710 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR012073 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR012666 DUCT - AIR Enquire To Order
LR023451 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR013706 DUCT - AIR Enquire To Order
LR023811 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR013705 DUCT - AIR Enquire To Order
LR023806 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR013712 DUCT - AIR Enquire To Order
LR020022 DUCT - AIR INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
PHD000714 DUCT - AIR Enquire To Order
LR020024 DUCT - AIR Enquire To Order
View All

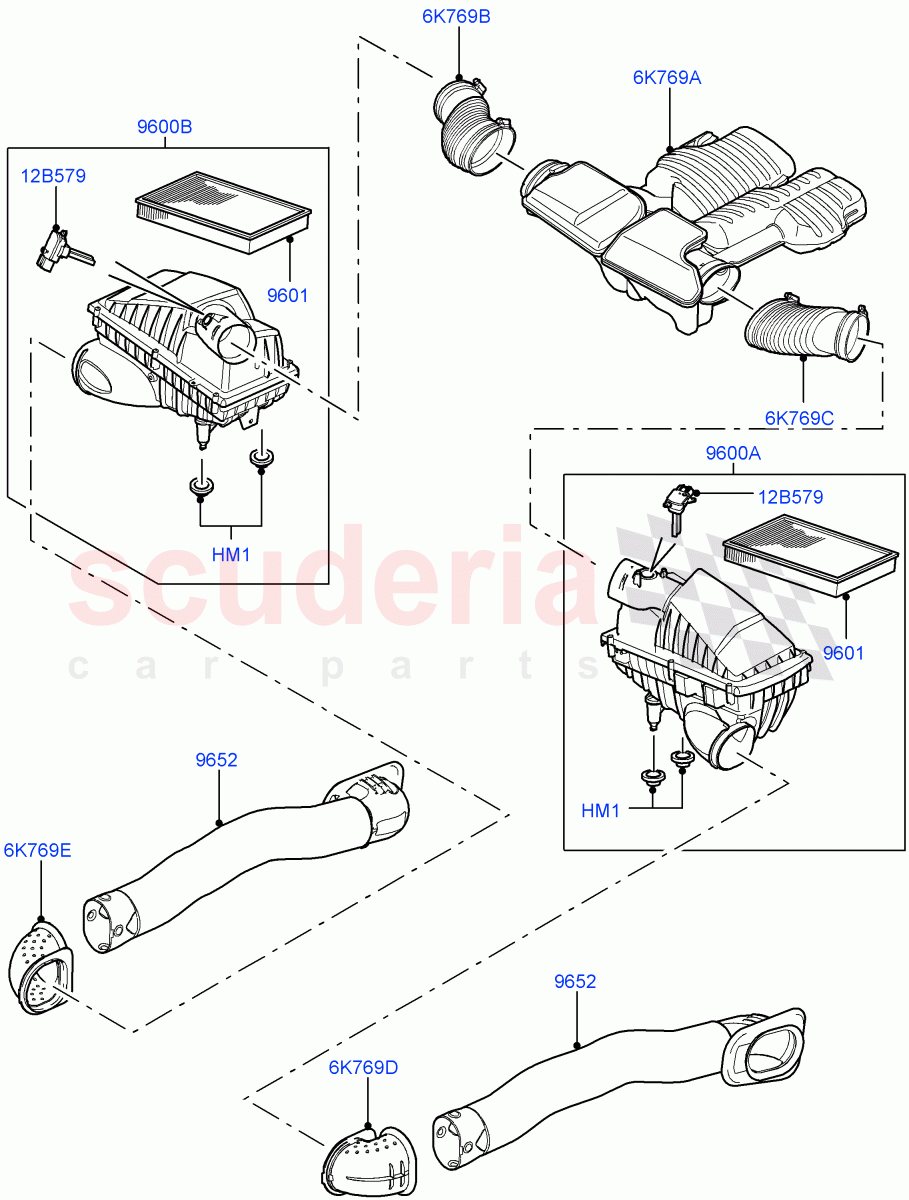

Air Cleaner (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 PJQ500012
MOUNTING - RUBBER
Mounting Rubber / From: AA000001 		- 4 Enquire
6K769A LR012666
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA000001 / To: AA531950 		- 1 Enquire
6K769A LR023451
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: AA531951 		- 1 Enquire
6K769B LR013706
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA000001 / To: AA546216 		- 1 Enquire
6K769B LR023811
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: AA546217 		- 1 Enquire
6K769C LR013705
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA000001 / To: AA546216 		- 1 Enquire
6K769C LR023806
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: AA546217 		- 1 Enquire
6K769D LR013712
DUCT - AIR
LH, Elbow Connector / From: AA000001 / To: AA524285 		- 1 Enquire
6K769D LR020022
DUCT - AIR INTAKE
LH, Elbow Connector / From: AA524286 		- 1 Enquire
6K769E PHD000714
DUCT - AIR
RH, Elbow Connector / From: AA000001 / To: AA521655 		- 1 Enquire
6K769E LR020024
DUCT - AIR
RH, Elbow Connector / From: AA521656 		- 1 Enquire
12B579 LR012073
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: AA000001 		- 2 Enquire
9600A LR013709
CLEANER - AIR
LH / From: AA000001 		- 1 Enquire
9600B LR013710
CLEANER - AIR
RH / From: AA000001 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER
From: AA000001 		- 2 Enquire
9652 LR013711
TUBE - AIR CLEANER INTAKE
From: AA000001 		- 2 Enquire
