Inlet Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Inlet Manifold (5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001)

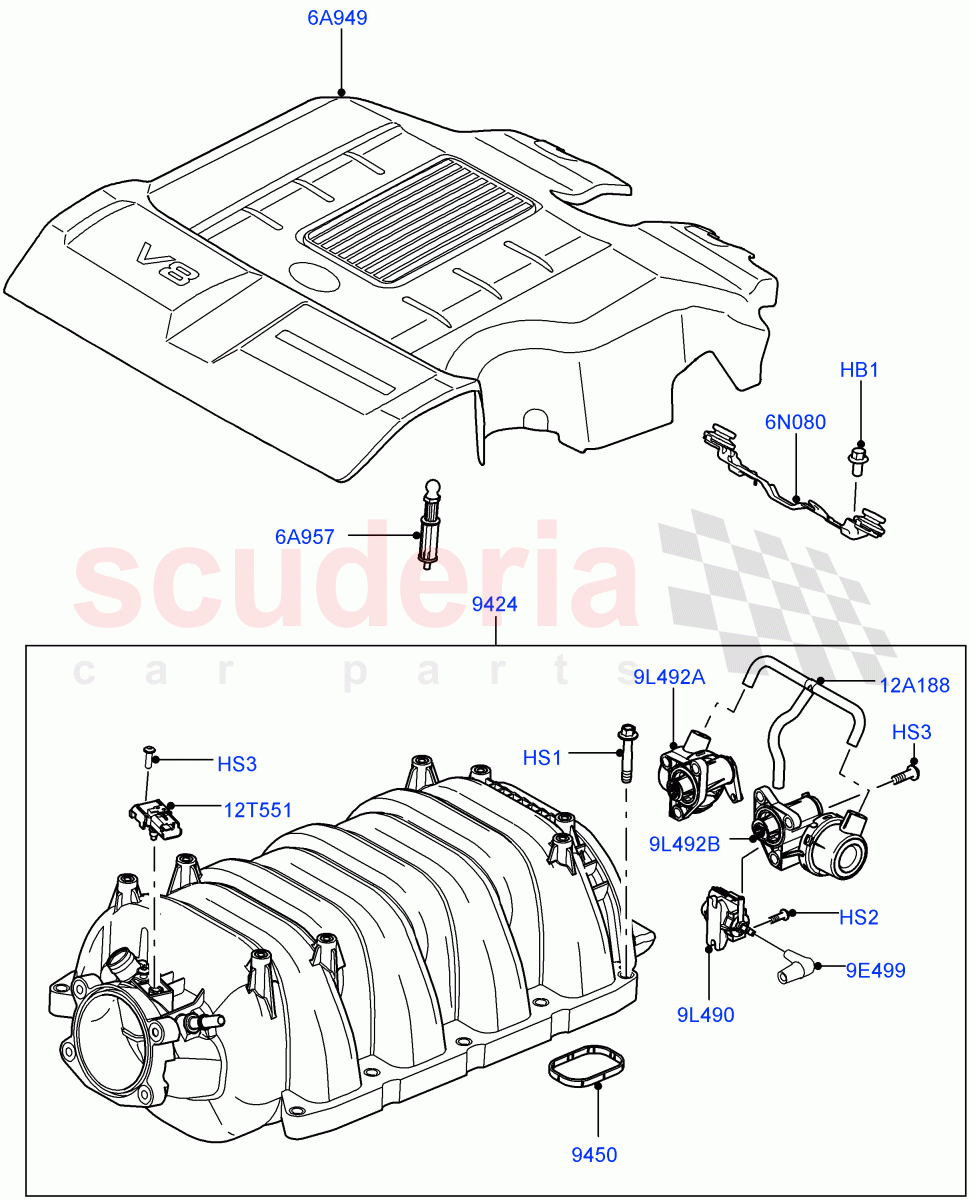

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011067	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008868	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000815	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011956	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010881	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010875	COVER	Enquire	To Order
	LR046911	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011564	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037684	CONNECTOR - VACUUM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011982	VALVE - VACUUM CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012284	HOSE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order
	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010877	ACTUATOR - VARIABLE INTAKE SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010878	ACTUATOR - VARIABLE INTAKE SYSTEM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT	FS106126 BOLT Bracket, Hexagonal Head, M6 x 12MM / From: AA000001	-	2	Enquire
HS1	LR011067	SCREW	LR011067 SCREW M8 X 45MM, Manifold To Cylinder Head / From: AA000001	-	10	Enquire
HS2	LR008868	SCREW	LR008868 SCREW 5 X 16MM / From: AA000001	-	2	Enquire
HS3	LR000815	SCREW	LR000815 SCREW M6 X 20MM / From: AA000001	-	7	Enquire
6A949	LR010875	COVER	LR010875 COVER Engine / From: AA000001 / To: DA681536	-	1	Enquire
6A949	LR046911	COVER - ENGINE TOP	LR046911 COVER - ENGINE TOP Engine / From: DA681537	-	1	Enquire
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Cover / From: AA000001	-	2	Enquire
6N080	LR011564	BRACKET - ENGINE COVER	LR011564 BRACKET - ENGINE COVER Engine Cover / From: AA000001	-	1	Enquire
9E499	LR037684	CONNECTOR - VACUUM HOSE	LR037684 CONNECTOR - VACUUM HOSE From: AA000001	-	1	Enquire
9L490	LR011982	VALVE - VACUUM CONTROL	LR011982 VALVE - VACUUM CONTROL From: AA000001	-	1	Enquire
9L492A	LR010877	ACTUATOR - VARIABLE INTAKE SYSTEM	LR010877 ACTUATOR - VARIABLE INTAKE SYSTEM RH, Variable Intake System / From: AA000001	-	1	Enquire
9L492B	LR010878	ACTUATOR - VARIABLE INTAKE SYSTEM	LR010878 ACTUATOR - VARIABLE INTAKE SYSTEM LH, Variable Intake System / From: AA000001	-	1	Enquire
12A188	LR012284	HOSE - VACUUM	LR012284 HOSE - VACUUM From: AA000001	-	1	Enquire
12T551	LR008881	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR008881 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: AA000001 / To: EA999999	-	1	Enquire
12T551	LR087236	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR087236 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: FA000001	-	1	Enquire
9424	LR011956	MANIFOLD - INLET	LR011956 MANIFOLD - INLET From: AA000001	-	1	Enquire
9450	LR010881	GASKET - INTAKE MANIFOLD	LR010881 GASKET - INTAKE MANIFOLD Attaches to intake manifold / From: AA000001	-	8	Enquire
