Front Brake Pipes (Rhd) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Front Brake Pipes (RHD) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
LR000385 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR019897 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
SYC101141 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR013757 CLIP - SPECIAL Enquire To Order
LR013757 CLIP - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
SYC500040 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR057807 CLIP - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
FS108146 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR013736 HOSE - BRAKE Enquire To Order
LR044356 HOSE - BRAKE Enquire To Order
LR020006 HOSE - BRAKE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013741 HOSE - BRAKE Enquire To Order
LR044357 HOSE - BRAKE Enquire To Order
LR020007 HOSE - BRAKE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013752 TUBE Enquire To Order
LR052203 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
ADU780051 BRACKET Enquire To Order
LR052197 BRACKET - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR013748 TUBE - BRAKE Enquire To Order
LR048450 TUBE - BRAKE Enquire To Order
LR052201 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR014218 TUBE - BRAKE Enquire To Order
LR052211 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR014220 TUBE - BRAKE Enquire To Order
LR052213 TUBE - BRAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR013734 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
EJP7813 CLIP - HOSE Enquire To Order
View All

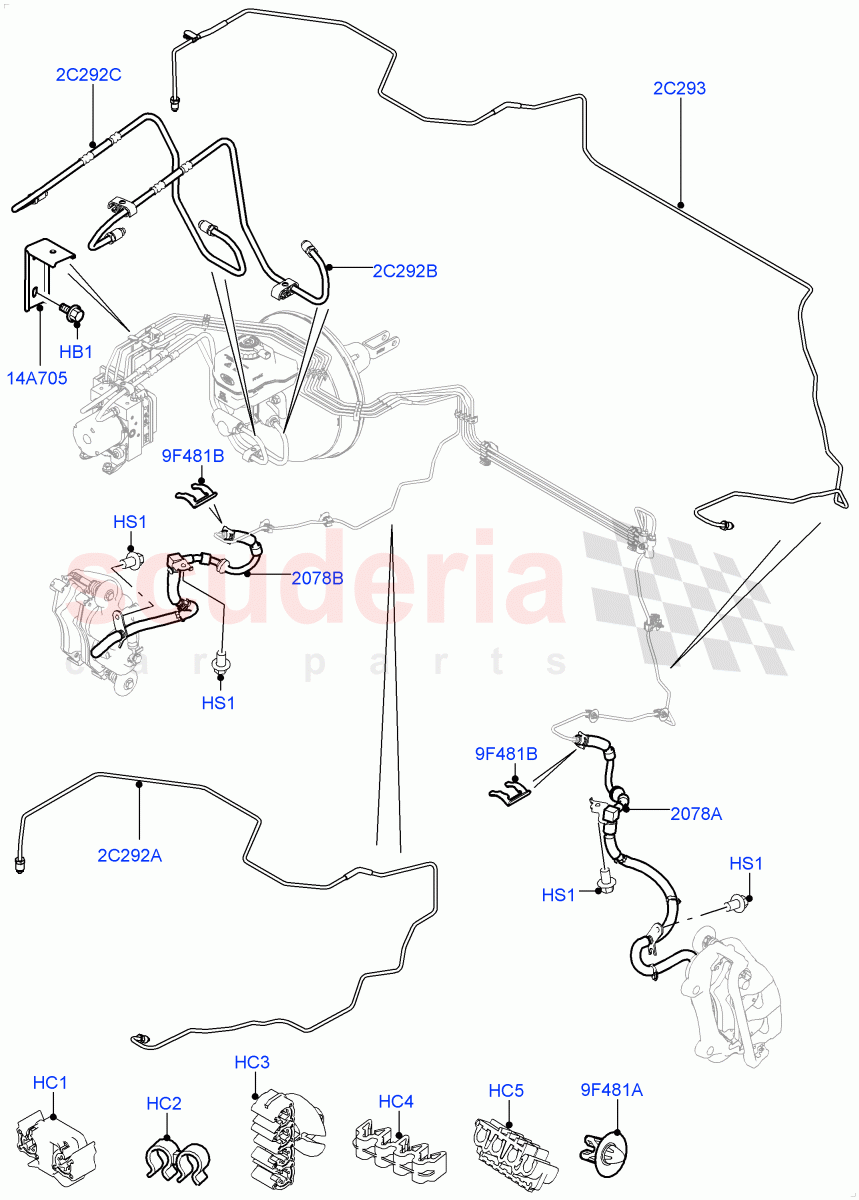

Front Brake Pipes (RHD) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: AA000001 / To: DA999999 		- 2 Enquire
HB1 LR000385
BOLT
Hexagonal Head, M6 x 12MM / From: EA000001 		- 2 Enquire
HC1 LR019897
CLIP - SPECIAL
Double / From: EA000001 		- 1 Enquire
HC2 SYC101141
CLIP
Double / From: AA000001 		- 2 Enquire
HC3 LR013757
CLIP - SPECIAL
4 Way / From: EA000001 		- 2 Enquire
HC3 LR013757
CLIP - SPECIAL
4 Way / From: AA000001 / To: DA999999 		- 3 Enquire
HC4 SYC500040
CLIP
4 Way / From: AA000001 		- 3 Enquire
HC5 LR057807
CLIP - BRAKE PIPE
4 Way / From: EA000001 		- 1 Enquire
HS1 FS108146
SCREW
M8 X 14MM / From: AA000001 		- 4 Enquire
2C292A LR013748
TUBE - BRAKE
Modulator To Front Hose (RH) / From: AA000001 / To: DA665693 		- 1 Enquire
2C292A LR048450
TUBE - BRAKE
Modulator To Front Hose (RH) / From: DA665694 / To: DA999999 		- 1 Enquire
2C292A LR052201
TUBE - BRAKE
Modulator To Front Hose (RH) / From: EA000001 		- 1 Enquire
2C292B LR014218
TUBE - BRAKE
Master Cylinder Primary / From: AA000001 / To: DA999999 		- 1 Enquire
2C292B LR052211
TUBE - BRAKE
Master Cylinder Primary / From: EA000001 		- 1 Enquire
2C292C LR014220
TUBE - BRAKE
Master Cylinder Secondary / From: AA000001 / To: DA999999 		- 1 Enquire
2C292C LR052213
TUBE - BRAKE
Master Cylinder Secondary / From: EA000001 		- 1 Enquire
2C293 LR013752
TUBE
Modulator To LH Front / From: AA000001 / To: DA999999 		- 1 Enquire
2C293 LR052203
TUBE - BRAKE
Modulator To LH Front / From: EA000001 		- 1 Enquire
9F481A LR013734
CLIP
Clip / From: AA000001 		- 4 Enquire
9F481B EJP7813
CLIP - HOSE
Brake Hose / From: AA000001 		- 2 Enquire
14A705 ADU780051
BRACKET
From: AA000001 / To: DA999999 		- 1 Enquire
14A705 LR052197
BRACKET - BRAKE PIPE
From: EA000001 		- 1 Enquire
2078A LR013736
HOSE - BRAKE
LH, Flexible / From: AA000001 / To: AA522611 		- 1 Enquire
2078A LR044356
HOSE - BRAKE
LH, Flexible / From: DA652767 / To: DA999999 		- 1 Enquire
2078A LR020006
HOSE - BRAKE
LH, Flexible / From: AA522612 / To: DA652766 		- 1 Enquire
2078A LR052214
TUBE - BRAKE
LH, Flexible / From: EA000001 / To: EA705309 		- 1 Enquire
2078A LR058049
TUBE - BRAKE
LH, Flexible / From: EA705310 		- 1 Enquire
2078B LR013741
HOSE - BRAKE
RH, Flexible / From: AA000001 / To: AA522611 		- 1 Enquire
2078B LR044357
HOSE - BRAKE
RH, Flexible / From: DA652767 / To: DA999999 		- 1 Enquire
2078B LR020007
HOSE - BRAKE
RH, Flexible / From: AA522612 / To: DA652766 		- 1 Enquire
2078B LR052215
HOSE - BRAKE
RH, Flexible / From: EA000001 / To: EA705309 		- 1 Enquire
2078B LR058048
TUBE - BRAKE
RH, Flexible / From: EA705310 		- 1 Enquire
