Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Front Knuckle And Hub ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FC112147 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RFD500020 NUT - HEX. Enquire To Order
LR024151 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR048083 HUB AND BEARING - WHEEL Enquire To Order
LR076692 HUB AND BEARING - WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
LR014140 KNUCKLE - FRONT WHEEL Enquire To Order
LR014142 KNUCKLE - FRONT WHEEL Enquire To Order
LR056468 KNUCKLE - FRONT WHEEL Enquire To Order
...and 1 more part variants. See table on right for more details.
View All

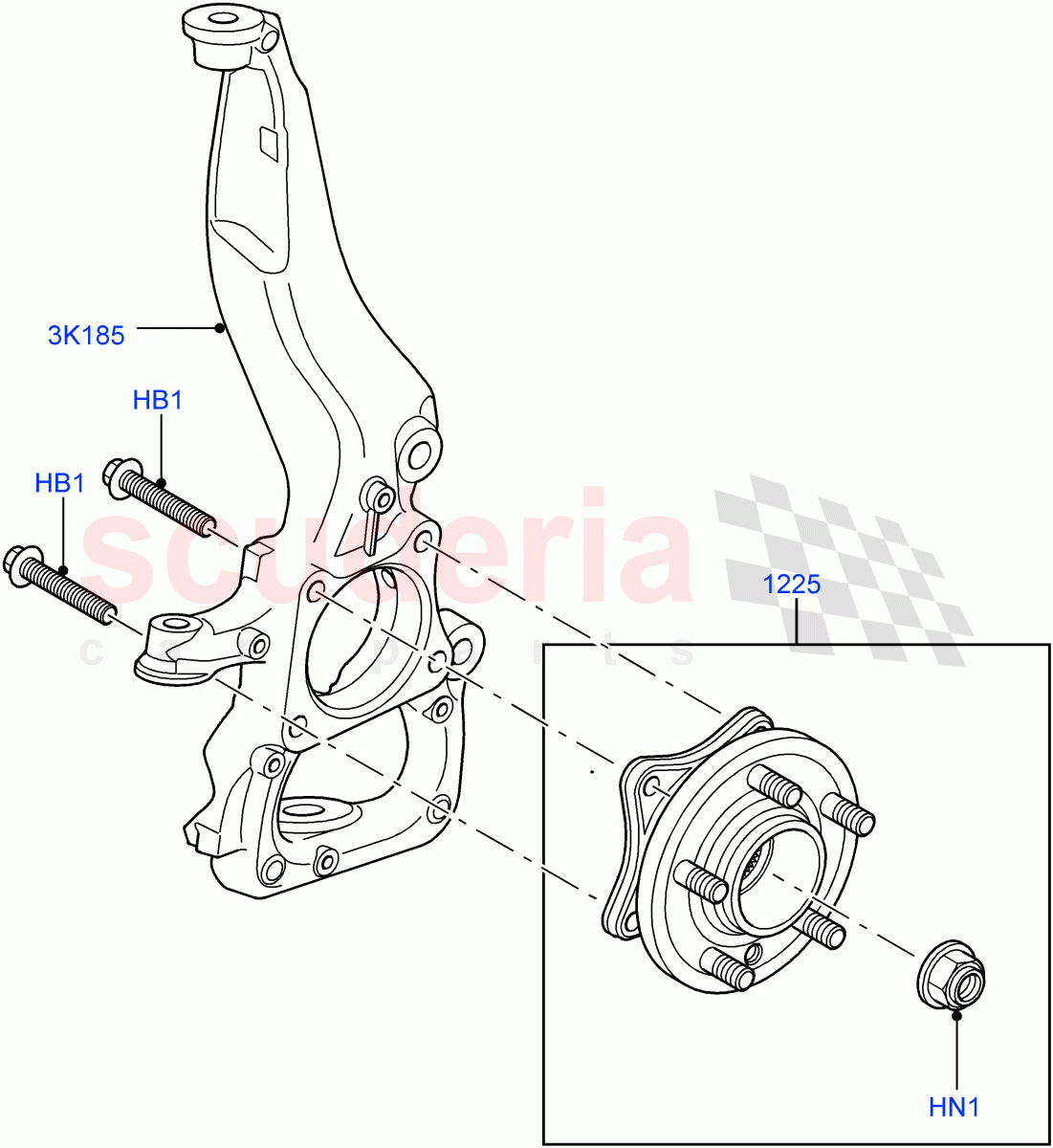

Front Knuckle And Hub ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FC112147
BOLT
HEX Flange, M12 x 70MM / From: AA000001 		- 8 Enquire
HN1 RFD500020
NUT - HEX.
Hex Nut Type, Inspect The Thread Lead Before Ordering, M24 X 1.5MM / From: AA000001 		- 2 Enquire
HN1 LR024151
NUT AND WASHER - HEX.
Inspect The Thread Lead Before Ordering, M24X2.0 / From: AA000001 		- 2 Enquire
3K185 LR014140
KNUCKLE - FRONT WHEEL
RH / From: AA000001 / To: DA695703 		- 1 Enquire
3K185 LR014142
KNUCKLE - FRONT WHEEL
LH / From: AA000001 / To: DA695703 		- 1 Enquire
3K185 LR056468
KNUCKLE - FRONT WHEEL
RH / From: DA695704 		- 1 Enquire
3K185 LR056469
KNUCKLE - FRONT WHEEL
LH / From: DA695704 		- 1 Enquire
1225 LR048083
HUB AND BEARING - WHEEL
Complete Assembly, Hub And Bearing / From: AA000001 / To: FA775021 		- 2 Enquire
1225 LR076692
HUB AND BEARING - WHEEL
Complete Assembly, Hub And Bearing / From: FA775022 		- 1 Enquire
