Timing Gear (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Timing Gear (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3045334 BOLT $0.65 To Order
Photo Part No Description Price (each) Stock
1025420 BOLT $27.68 To Order
Photo Part No Description Price (each) Stock
LR010930 TENSIONER - TIMING BELT $25.78 To Order
Photo Part No Description Price (each) Stock
4564923 CASSETTE - TIMING CHAIN $113.44 To Order
Photo Part No Description Price (each) Stock
4615307 BOLT - SPECIAL $1.84 To Order
View All

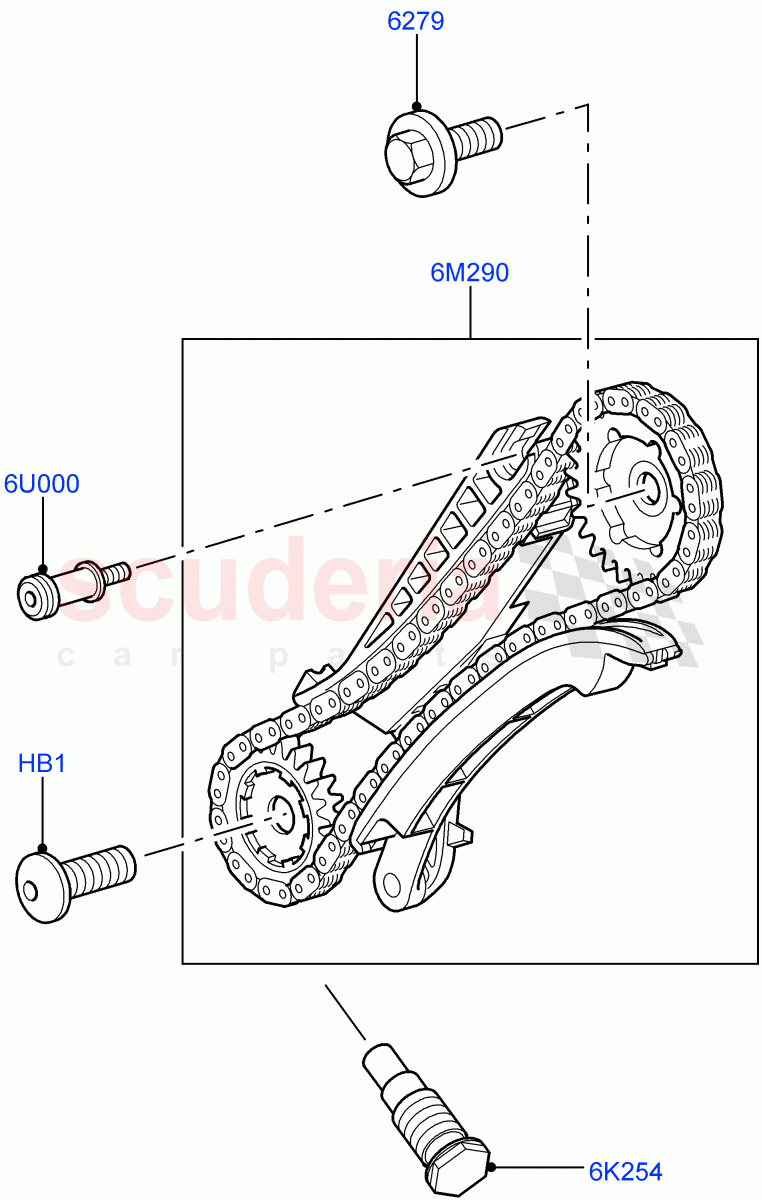

Timing Gear (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 3045334
BOLT
M10 X 34MM / From: AA000001 		$0.65 1
6K254 LR010930
TENSIONER - TIMING BELT
From: AA000001 		$25.78 1
6M290 4564923
CASSETTE - TIMING CHAIN
From: AA000001 		$113.44 1
6U000 4615307
BOLT - SPECIAL
Lower Cassette Bolt Assembly With O-Ring; Bolts Through Head, M6 x 35MM / From: AA000001 		$1.84 1
6279 1025420
BOLT
LH Threads, M10 X 45 / From: AA000001 		$27.68 1
