Find Your Part

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR016187	BRACKET	$159.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050538	CONNECTOR - CABLE	$2.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015940	FLOAT	$140.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014999	FLOAT-SENDER	$140.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015937	BRACKET - FUEL TANK	$107.03	To Order

Photo	Part No	Description	Price (each)	Stock
	WQM500020	CONTROL - FUEL PUMP DRIVE	$254.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016845	SENDER AND PUMP	$475.15	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: AA000001 IN STOCK	$1.45	5
9A760	LR015937	BRACKET - FUEL TANK	LR015937 BRACKET - FUEL TANK With Fuel Sender / From: AA000001 / To: CA625262	$107.03	1
9D370	WQM500020	CONTROL - FUEL PUMP DRIVE	WQM500020 CONTROL - FUEL PUMP DRIVE For Fuel Pump / From: AA000001	$254.59	1
9D372	LR016845	SENDER AND PUMP	LR016845 SENDER AND PUMP From: AA000001	$475.15	1
9180	LR016187	BRACKET	LR016187 BRACKET From: AA000001	$159.37	1
9202A	LR015940	FLOAT	LR015940 FLOAT Front / From: AA000001 / To: CA625262	$140.21	1
9202B	LR014999	FLOAT-SENDER	LR014999 FLOAT-SENDER Rear / From: AA000001 / To: CA625262	$140.13	1
14488	LR050538	CONNECTOR - CABLE IN STOCK	LR050538 CONNECTOR - CABLE Fuel Level Sender Harness Connector Repair Kit / From: AA510742 / To: BA595923 IN STOCK	$2.15	6

Haven't found what you're looking for?

View Cart / Checkout

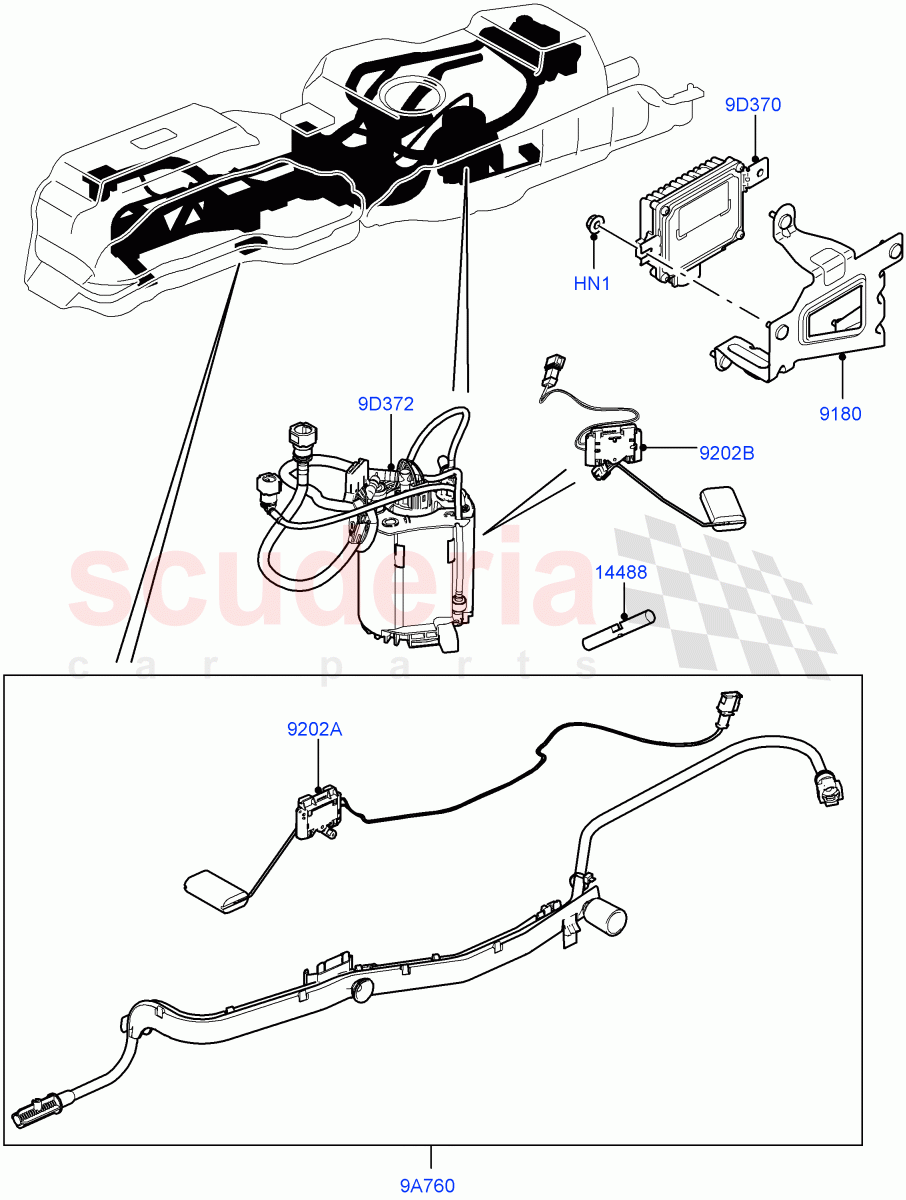

Fuel Pump And Sender Unit (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]
