Ignition Coil And Wires/Spark Plugs (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Ignition Coil And Wires/Spark Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005771 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
NGD500010 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR020228 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
4597799 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR002427 COIL - IGNITION Enquire To Order
Photo Part No Description Price (each) Stock
LR020229 WIRE - IGNITION Enquire To Order
Photo Part No Description Price (each) Stock
LR000604 SPARK PLUG Enquire To Order
1349269 SPARK PLUG Enquire To Order
Photo Part No Description Price (each) Stock
NEC500091 CAPACITOR - RADIO SUPPRESSION Enquire To Order
LR025249 CAPACITOR Enquire To Order
View All

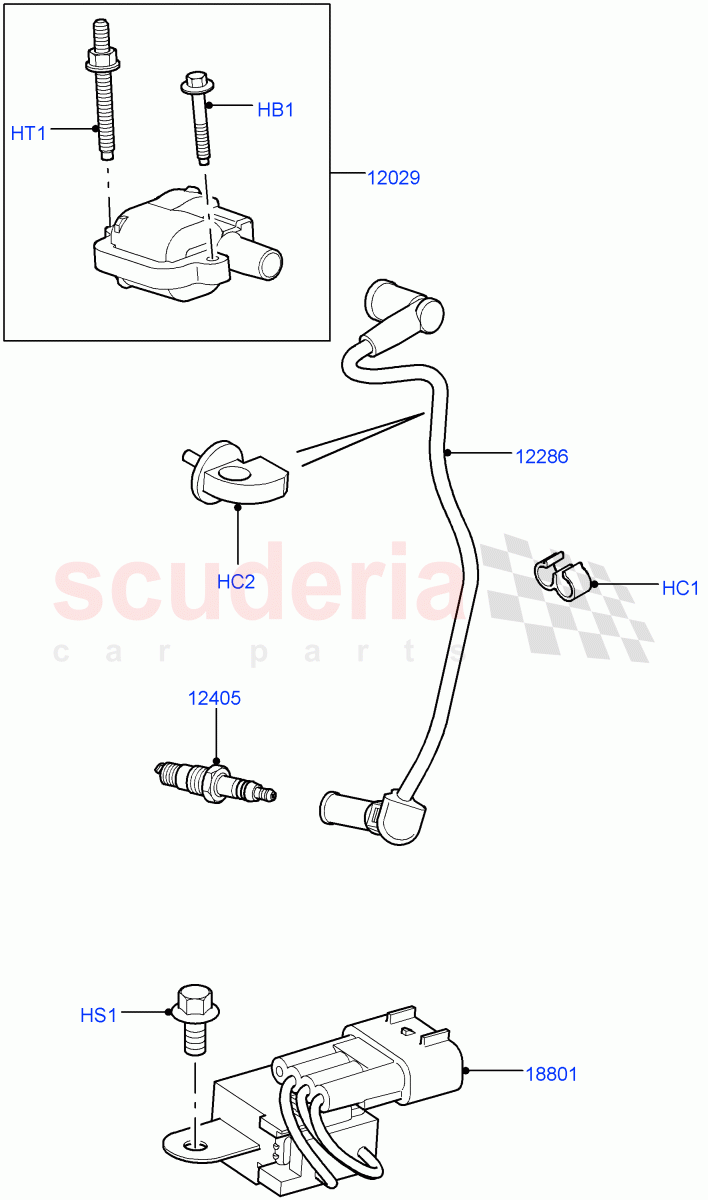

Ignition Coil And Wires/Spark Plugs (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR005771
BOLT
Bolt And Washer, M5 x 30MM / From: AA000001 		- 1 Enquire
HC1 NGD500010
CLIP
8 + 8 Pipe Spacer Plastic / From: AA000001 		- 1 Enquire
HC2 LR020228
CLIP
Spacer / From: AA000001 		- 6 Enquire
HS1 FS106127L
SCREW
M6 x 12MM / From: AA000001 		- 2 Enquire
HT1 4597799
STUD
M5 X 30 + M5 X 10.5 / From: AA000001 		- 6 Enquire
12029 LR002427
COIL - IGNITION
From: AA000001 		- 6 Enquire
12286 LR020229
WIRE - IGNITION
From: AA000001 		- 6 Enquire
12405 LR000604
SPARK PLUG
For Unleaded Fuel / From: AA000001 		- 6 Enquire
12405 1349269
SPARK PLUG
For Leaded Fuel / From: AA000001 		- 6 Enquire
18801 NEC500091
CAPACITOR - RADIO SUPPRESSION
From: AA000001 / To: AA551386 		- 1 Enquire
18801 LR025249
CAPACITOR
From: AA551387 		- 1 Enquire
