Name: Steering Wheel ((V) FROMAA000001)
Rating: 4.1 (1 reviews)

Steering Wheel ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Steering Wheel ((V) FROMAA000001)

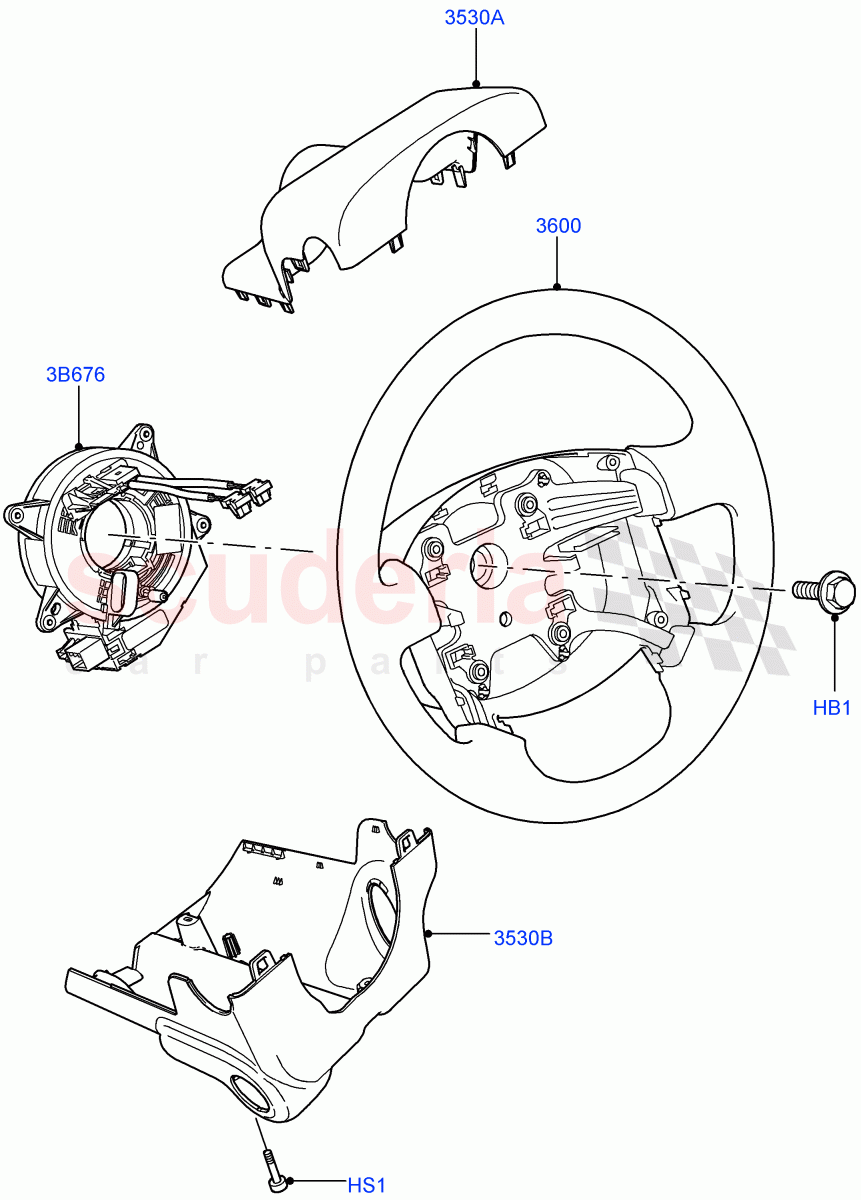

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	QTM100000L	BOLT - FLANGED HEX.	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	QYP500100	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014297	WHEEL - STEERING	$965.97	To Order
	LR014298	WHEEL - STEERING	$1,275.71	To Order
	LR024056	WHEEL - STEERING	$1,275.71	To Order

...and 24 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	QRB500250PVJ	SHROUD - STEERING COLUMN	$171.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013469	SHROUD - STEERING COLUMN	$162.30	To Order
	LR013470	SHROUD - STEERING COLUMN	$148.13	To Order
	LR023694	SHROUD - STEERING COLUMN	$150.24	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR018556	COUPLING AND UJ - STEERING SHAFT	$431.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	QTM100000L	BOLT - FLANGED HEX.	QTM100000L BOLT - FLANGED HEX. M14 X 25MM / From: AA000001	$1.26	2
HS1	QYP500100	SCREW	QYP500100 SCREW M4 x 8MM / From: AA000001	$0.80	3
3B676	LR018556	COUPLING AND UJ - STEERING SHAFT	LR018556 COUPLING AND UJ - STEERING SHAFT Rotary Type / From: AA000001	$431.63	1
3530A	QRB500250PVJ	SHROUD - STEERING COLUMN	QRB500250PVJ SHROUD - STEERING COLUMN Ebony Black, Upper / From: AA000001	$171.86	1
3530B	LR013469	SHROUD - STEERING COLUMN	LR013469 SHROUD - STEERING COLUMN With Manual Tilt & Reach Adj Column / Lower / From: AA000001 / To: BA557097	$162.30	1
3530B	LR013470	SHROUD - STEERING COLUMN	LR013470 SHROUD - STEERING COLUMN Elec. Tilt & Reach Adj Strng Colmn / Lower / From: AA000001 / To: BA557097	$148.13	1
3530B	LR023694	SHROUD - STEERING COLUMN	LR023694 SHROUD - STEERING COLUMN With Manual Tilt & Reach Adj Column / Lower / From: BA557098	$150.24	1
3530B	LR023695	SHROUD - STEERING COLUMN	LR023695 SHROUD - STEERING COLUMN Elec. Tilt & Reach Adj Strng Colmn / Lower / From: BA557098	$118.81	1
3600	LR014297	WHEEL - STEERING	LR014297 WHEEL - STEERING Leather Steering Wheel / From: AA000001 / To: AA513325	$965.97	1
3600	LR014298	WHEEL - STEERING	LR014298 WHEEL - STEERING With Heated Leather Steering Wheel / From: AA000001 / To: AA513325	$1,275.71	1
3600	LR024056	WHEEL - STEERING	LR024056 WHEEL - STEERING With Heated Leather Steering Wheel / From: AA513326 / To: BA999999	$1,275.71	1
3600	LR024057	WHEEL - STEERING	LR024057 WHEEL - STEERING Steering Wheel - Gloss Black / From: AA513326 / To: BA999999	$414.24	1
3600	LR030681	WHEEL - STEERING	LR030681 WHEEL - STEERING 8 Speed Auto Trans ZF 8HP70 4WD, Leather Steering Wheel, Less Heated Steering Wheel / From: CA000001 / To: CA999999	$831.54	1
3600	LR030682	WHEEL - STEERING	LR030682 WHEEL - STEERING 8 Speed Auto Trans ZF 8HP70 4WD, With Heated Leather Steering Wheel, With Heated Steering Wheel / From: CA000001 / To: CA999999	$1,209.63	1
3600	LR024057	WHEEL - STEERING	LR024057 WHEEL - STEERING 6 Speed Auto ZF 6HP26 Steptronic, Leather Steering Wheel, Less Heated Steering Wheel / From: CA000001 / To: CA999999	$414.24	1
3600	LR024056	WHEEL - STEERING	LR024056 WHEEL - STEERING 6 Speed Auto Transmission ZF 6HP28, With Heated Leather Steering Wheel / From: CA000001 / To: CA999999	$1,275.71	1
3600	LR024056	WHEEL - STEERING	LR024056 WHEEL - STEERING 6 Speed Auto Transmission ZF 6HP28, Leather Steering Wheel, With Heated Steering Wheel / From: DA000001 / To: DA999999	$1,275.71	1
3600	LR030682	WHEEL - STEERING	LR030682 WHEEL - STEERING 8 Speed Auto Trans ZF 8HP70 4WD, Leather Steering Wheel, With Heated Steering Wheel / From: DA000001 / To: DA999999	$1,209.63	1
3600	LR030681	WHEEL - STEERING	LR030681 WHEEL - STEERING 8 Speed Auto Trans ZF 8HP70 4WD, Leather Steering Wheel, Less Heated Steering Wheel / From: DA000001 / To: DA999999	$831.54	1
3600	LR024057	WHEEL - STEERING	LR024057 WHEEL - STEERING 6 Speed Auto Transmission ZF 6HP28, Leather Steering Wheel, Less Heated Steering Wheel / From: DA000001 / To: DA999999	$414.24	1
3600	LR052231	WHEEL - STEERING	LR052231 WHEEL - STEERING Less Heated Steering Wheel, Steering Wheel - Gloss Black / From: EA000001	$1,008.11	1
3600	LR064505	WHEEL - STEERING	LR064505 WHEEL - STEERING Interior Satin Blk Wlnt Veneer, Less Heated Steering Wheel, Steering Wheel - Wood/Leather / From: FA000001 / To: GA799551	$1,163.24	1
3600	LR064506	WHEEL - STEERING	LR064506 WHEEL - STEERING Interior Satin Blk Wlnt Veneer, Steering Wheel - Wood/Leather, With Heated Steering Wheel / From: FA000001 / To: GA799551	$1,369.37	1
3600	LR058057	WHEEL - STEERING	LR058057 WHEEL - STEERING Interior Piano Black Veneer, Less Heated Steering Wheel, Steering Wheel - Wood/Leather / From: FA000001	$1,531.22	1
3600	LR058058	WHEEL - STEERING	LR058058 WHEEL - STEERING Interior Piano Black Veneer, Steering Wheel - Wood/Leather, With Heated Steering Wheel / From: FA000001	$1,131.26	1
3600	LR079243	WHEEL - STEERING	LR079243 WHEEL - STEERING Interior Satin Blk Wlnt Veneer, Less Heated Steering Wheel, Steering Wheel - Wood/Leather / From: GA799552	$1,531.22	1
3600	LR079244	WHEEL - STEERING	LR079244 WHEEL - STEERING Interior Satin Blk Wlnt Veneer, Steering Wheel - Wood/Leather, With Heated Steering Wheel / From: GA799552	$1,233.45	1
3600	LR052231	WHEEL - STEERING	LR052231 WHEEL - STEERING Leather Steering Wheel, Less Heated Steering Wheel, Mute Activation, Paddle Shift / From: GA799413	$1,008.11	1
3600	LR030682	WHEEL - STEERING	LR030682 WHEEL - STEERING Paddle Shift, Steering Wheel - Gloss Black, With Heated Steering Wheel, With Manual Speed Control, With Personal Telephone Integration / From: FA000001 / To: FA999999	$1,209.63	1
3600	LR052229	WHEEL - STEERING	LR052229 WHEEL - STEERING Leather Steering Wheel, Less Telephone, Voice Input System, With Heated Steering Wheel, With Manual Speed Control / From: EA000001 / To: EA999999	$903.09	1
3600	LR052229	WHEEL - STEERING	LR052229 WHEEL - STEERING Leather Steering Wheel, Less Telephone, Paddle Shift, Voice Input System, With Heated Steering Wheel, With Manual Speed Control / From: FA000001	$903.09	1
3600	LR052229	WHEEL - STEERING	LR052229 WHEEL - STEERING Leather Steering Wheel, Paddle Shift, With Heated Steering Wheel, With Manual Speed Control, With Personal Telephone Integration / From: FA000001 / To: FA999999	$903.09	1
3600	LR052229	WHEEL - STEERING	LR052229 WHEEL - STEERING Leather Steering Wheel, Less Telephone, Mute Activation, Paddle Shift, With Adaptive Speed Control, With Heated Steering Wheel / From: GA000001	$903.09	1
3600	LR030682	WHEEL - STEERING	LR030682 WHEEL - STEERING Mute Activation, Paddle Shift, Steering Wheel - Gloss Black, With Heated Steering Wheel, With Manual Speed Control, With Personal Telephone Integration / From: GA000001	$1,209.63	1
3600	LR030682	WHEEL - STEERING	LR030682 WHEEL - STEERING Steering Wheel - Gloss Black, With Heated Steering Wheel, With Manual Speed Control / From: EA000001 / To: EA999999	$1,209.63	1
