Rear Seat Frame (Finishers) (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Rear Seat Frame (Finishers) (With 35/30/35 Split Fold Rear Seat) ((V) FROMAA000001)

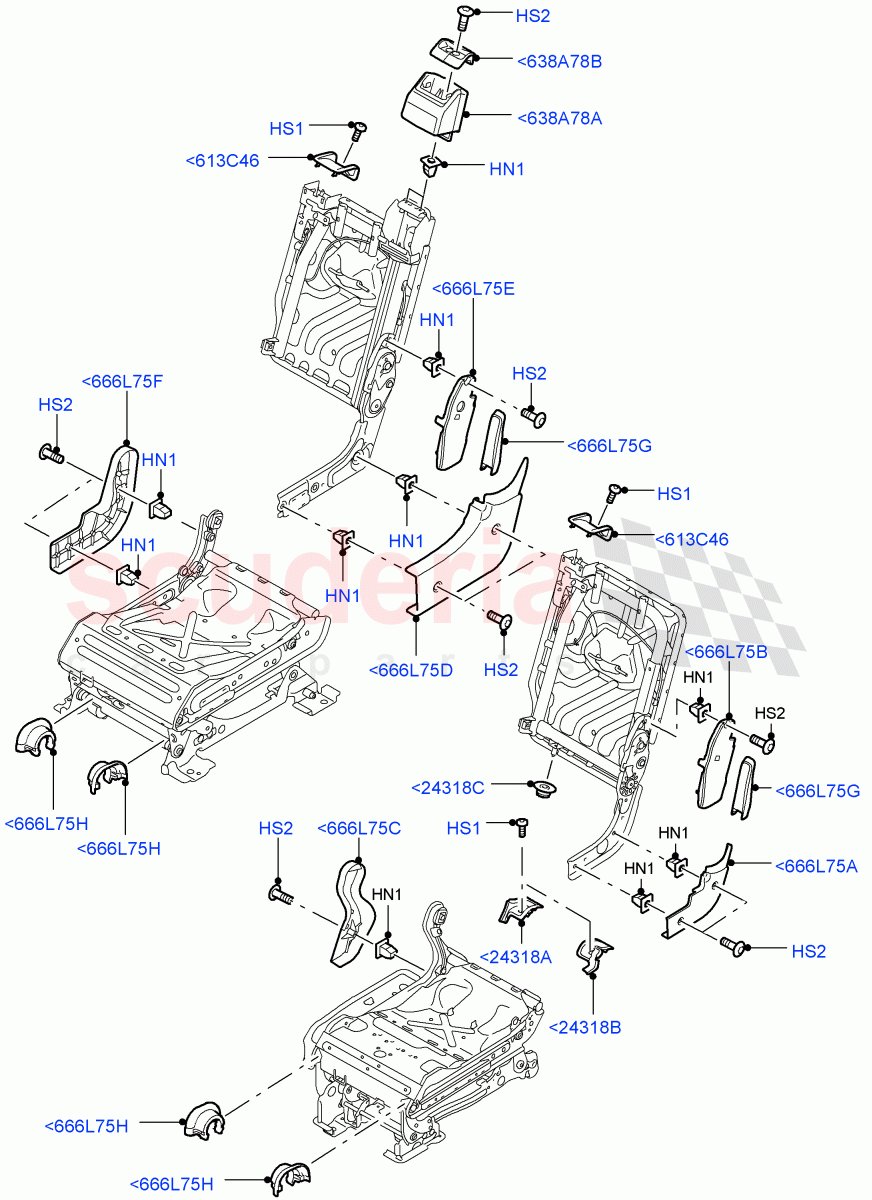

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYH000090	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DA608044L	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYP500140	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXH500060PVJ	MOULDING - FRAME - SEATBACK	Enquire	To Order
	HXH500070PVJ	MOULDING - FRAME - SEATBACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXH500080PVJ	MOULDING - FRAME - SEATBACK	Enquire	To Order
	HXH500090PVJ	MOULDING - FRAME - SEATBACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXM500220	ESCUTCHEON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXM500061PVJ	COVER - SEAT BACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXM500131PVJ	COVER - REAR SEAT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXM500111PVJ	COVER - REAR SEAT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500441PVJ	COVER - HINGE	Enquire	To Order
	HXT500451PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500301PVJ	COVER - HINGE	Enquire	To Order
	HXT500311PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500960PVJ	COVER - HINGE	Enquire	To Order
	HXT500970PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500930PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500471PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT500920PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT501000PVJ	COVER - HINGE	Enquire	To Order
	HXT501010PVJ	COVER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HXT501100PVJ	COVER - SEAT PIVOT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<613C46	HXM500061PVJ	COVER - SEAT BACK	HXM500061PVJ COVER - SEAT BACK From: AA000001	-	3	Enquire
<638A78A	HXM500131PVJ	COVER - REAR SEAT SURROUND	HXM500131PVJ COVER - REAR SEAT SURROUND From: AA000001	-	1	Enquire
<638A78B	HXM500111PVJ	COVER - REAR SEAT SURROUND	HXM500111PVJ COVER - REAR SEAT SURROUND From: AA000001	-	1	Enquire
<666L75A	HXT500441PVJ	COVER - HINGE	HXT500441PVJ COVER - HINGE Inner, RH Seat Inboard / From: AA000001	-	1	Enquire
<666L75A	HXT500451PVJ	COVER - HINGE	HXT500451PVJ COVER - HINGE Inner, LH Seat Inboard / From: AA000001	-	1	Enquire
<666L75B	HXT500301PVJ	COVER - HINGE	HXT500301PVJ COVER - HINGE RH Seat Inboard, Side, Upper / From: AA000001	-	1	Enquire
<666L75B	HXT500311PVJ	COVER - HINGE	HXT500311PVJ COVER - HINGE LH Seat Inboard, Side, Upper / From: AA000001	-	1	Enquire
<666L75C	HXT500960PVJ	COVER - HINGE	HXT500960PVJ COVER - HINGE RH Seat Outboard / From: AA000001	-	1	Enquire
<666L75C	HXT500970PVJ	COVER - HINGE	HXT500970PVJ COVER - HINGE LH Seat Outboard / From: AA000001	-	1	Enquire
<666L75D	HXT500930PVJ	COVER - HINGE	HXT500930PVJ COVER - HINGE Centre, Inboard, Lower / From: AA000001	-	1	Enquire
<666L75E	HXT500471PVJ	COVER - HINGE	HXT500471PVJ COVER - HINGE Outboard, Side, Upper / From: AA000001	-	1	Enquire
<666L75F	HXT500920PVJ	COVER - HINGE	HXT500920PVJ COVER - HINGE Outboard / From: AA000001	-	1	Enquire
<666L75G	HXT501000PVJ	COVER - HINGE	HXT501000PVJ COVER - HINGE RH, LH Seat, Upper Front / From: AA000001	-	1	Enquire
<666L75G	HXT501010PVJ	COVER - HINGE	HXT501010PVJ COVER - HINGE LH, RH Seat, Upper Front / From: AA000001	-	1	Enquire
<666L75H	HXT501100PVJ	COVER - SEAT PIVOT	HXT501100PVJ COVER - SEAT PIVOT Hinge Cover / From: AA000001	-	4	Enquire
<24318A	HXH500060PVJ	MOULDING - FRAME - SEATBACK	HXH500060PVJ MOULDING - FRAME - SEATBACK RH Seat Outboard / From: AA000001	-	1	Enquire
<24318A	HXH500070PVJ	MOULDING - FRAME - SEATBACK	HXH500070PVJ MOULDING - FRAME - SEATBACK LH Seat Outboard / From: AA000001	-	1	Enquire
<24318B	HXH500080PVJ	MOULDING - FRAME - SEATBACK	HXH500080PVJ MOULDING - FRAME - SEATBACK RH Seat Inboard / From: AA000001	-	1	Enquire
<24318B	HXH500090PVJ	MOULDING - FRAME - SEATBACK	HXH500090PVJ MOULDING - FRAME - SEATBACK LH Seat Inboard / From: AA000001	-	1	Enquire
<24318C	HXM500220	ESCUTCHEON	HXM500220 ESCUTCHEON From: AA000001	-	2	Enquire
HN1	HYH000090	NUT - FLANGED	HYH000090 NUT - FLANGED Plastic, Rear Seat / From: AA000001	-	15	Enquire
HS1	DA608044L	SCREW - SELF-TAPPING	DA608044L SCREW - SELF-TAPPING Size 8 - Self Tapping / From: AA000001	-	7	Enquire
HS2	HYP500140	SCREW	HYP500140 SCREW 4 X 12MM / From: AA000001	-	15	Enquire
