Electrical Wiring - Body And Rear (Front And Rear Doors) ((V) FROMCA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Electrical Wiring - Body And Rear (Front And Rear Doors) ((V) FROMCA000001)

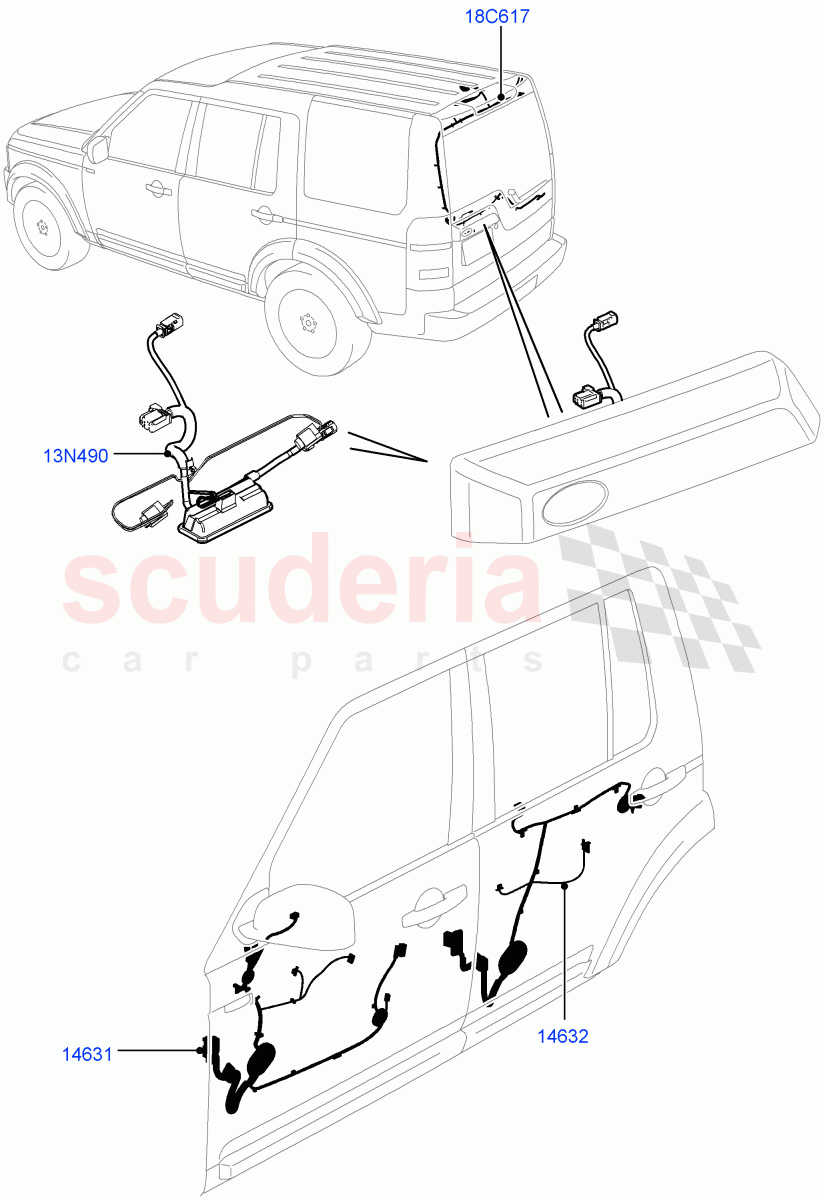

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029868	WIRING - DOOR	$177.38	To Order
	LR029869	WIRING - DOOR	$214.55	To Order
	LR029871	WIRING - DOOR	$304.87	To Order

...and 69 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR029885	WIRING - DOOR	$78.73	To Order
	LR029886	WIRING - DOOR	$57.78	To Order
	LR029887	WIRING - DOOR	$99.19	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015457	SOCKET AND WIRE - LAMP	$102.81	To Order
	LR015458	SOCKET AND WIRE - LAMP	$123.83	To Order
	LR015459	SOCKET AND WIRE - LAMP	$116.54	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR021099	WIRING - TAILGATE	$93.26	To Order
	LR021100	WIRING - TAILGATE	$100.73	To Order
	LR021101	WIRING - TAILGATE	$155.02	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
13N490	LR015457	SOCKET AND WIRE - LAMP	LR015457 SOCKET AND WIRE - LAMP Less Camera System / For Tailgate, Handle, With Microswitch / From: CA000001 / To: DA676571	$102.81	1
13N490	LR015458	SOCKET AND WIRE - LAMP	LR015458 SOCKET AND WIRE - LAMP Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: CA000001 / To: DA676571	$123.83	1
13N490	LR015459	SOCKET AND WIRE - LAMP	LR015459 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: CA000001 / To: CA634120	$116.54	1
13N490	LR043266	SOCKET AND WIRE - LAMP	LR043266 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: CA634121 / To: DA676571	$126.49	1
13N490	LR053163	SOCKET AND WIRE - LAMP	LR053163 SOCKET AND WIRE - LAMP Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: EA000001	$357.77	1
13N490	LR053164	SOCKET AND WIRE - LAMP	LR053164 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: EA000001	$425.84	1
13N490	LR053165	SOCKET AND WIRE - LAMP	LR053165 SOCKET AND WIRE - LAMP Less Camera System / For Tailgate, Handle, With Microswitch / From: EA000001	$179.69	1
13N490	LR071910	SOCKET AND WIRE - LAMP	LR071910 SOCKET AND WIRE - LAMP Less Camera System / For Tailgate, Handle, With Microswitch / From: DA676572 / To: DA999999	$165.85	1
13N490	LR071911	SOCKET AND WIRE - LAMP	LR071911 SOCKET AND WIRE - LAMP Rear View Camera-Fixed / For Tailgate, Handle, With Microswitch / From: DA676572 / To: DA999999	$390.72	1
13N490	LR071912	SOCKET AND WIRE - LAMP	LR071912 SOCKET AND WIRE - LAMP Surround Camera System / For Tailgate, Handle, With Microswitch / From: DA676572 / To: DA999999	$369.62	1
18C617	LR021099	WIRING - TAILGATE	LR021099 WIRING - TAILGATE Less Camera System / Upper Tailgate / From: CA000001 / To: DA999999	$93.26	1
18C617	LR021100	WIRING - TAILGATE	LR021100 WIRING - TAILGATE Rear View Camera-Fixed / Upper Tailgate / From: CA000001 / To: DA999999	$100.73	1
18C617	LR021101	WIRING - TAILGATE	LR021101 WIRING - TAILGATE Surround Camera System / Upper Tailgate / From: CA000001 / To: DA999999	$155.02	1
18C617	LR052995	WIRING - TAILGATE	LR052995 WIRING - TAILGATE Less Camera System / Upper Tailgate / From: EA000001	$267.28	1
18C617	LR052996	WIRING - TAILGATE	LR052996 WIRING - TAILGATE Rear View Camera-Fixed / Upper Tailgate / From: EA000001	$267.28	1
18C617	LR052997	WIRING - TAILGATE	LR052997 WIRING - TAILGATE Surround Camera System / Upper Tailgate / From: EA000001	$237.53	1
14631	LR029868	WIRING - DOOR	LR029868 WIRING - DOOR Keyless Start - Japanese Script, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: CA000001 / To: DA999999	$177.38	1
14631	LR029869	WIRING - DOOR	LR029869 WIRING - DOOR Keyless Entry/Start - Passive, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Drivers Door / From: CA000001 / To: DA999999	$214.55	1
14631	LR029871	WIRING - DOOR	LR029871 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Strt-Pass-Jap Script, RHD, Surround Camera System / Drivers Door / From: CA000001 / To: DA999999	$304.87	1
14631	LR029864	WIRING - DOOR	LR029864 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Rear View Camera-Fixed, With Keyless Start / Drivers Door / From: CA000001 / To: DA999999	$186.58	1
14631	LR029866	WIRING - DOOR	LR029866 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Surround Camera System, With Keyless Start / Drivers Door / From: CA000001 / To: DA999999	$265.54	1
14631	LR029870	WIRING - DOOR	LR029870 WIRING - DOOR Hi Line Audio System - 600 W, RHD, Rear View Camera-Fixed, With Keyless Start / Drivers Door / From: CA000001 / To: DA999999	$169.68	1
14631	LR029872	WIRING - DOOR	LR029872 WIRING - DOOR Hi Line Audio System - 600 W, RHD, Surround Camera System, With Keyless Start / Drivers Door / From: CA000001 / To: DA999999	$253.78	1
14631	LR029861	WIRING - DOOR	LR029861 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: CA000001 / To: DA999999	$214.03	1
14631	LR029862	WIRING - DOOR	LR029862 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Drivers Door / From: CA000001 / To: DA999999	$176.52	1
14631	LR029863	WIRING - DOOR	LR029863 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed / Drivers Door / From: CA000001 / To: DA999999	$214.70	1
14631	LR029865	WIRING - DOOR	LR029865 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Surround Camera System / Drivers Door / From: CA000001 / To: DA999999	$305.64	1
14631	LR029867	WIRING - DOOR	LR029867 WIRING - DOOR Keyless Entry/Start - Passive, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: CA000001 / To: DA999999	$213.97	1
14631	LR029880	WIRING - DOOR	LR029880 WIRING - DOOR Keyless Start - Japanese Script, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: CA000001 / To: DA999999	$182.14	1
14631	LR029881	WIRING - DOOR	LR029881 WIRING - DOOR Keyless Entry/Start - Passive, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Passengers Door / From: CA000001 / To: DA999999	$227.44	1
14631	LR029883	WIRING - DOOR	LR029883 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Strt-Pass-Jap Script, RHD, Surround Camera System / Passengers Door / From: CA000001 / To: DA999999	$298.54	1
14631	LR029876	WIRING - DOOR	LR029876 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Rear View Camera-Fixed, With Keyless Start / Passengers Door / From: CA000001 / To: DA999999	$188.95	1
14631	LR029878	WIRING - DOOR	LR029878 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Surround Camera System, With Keyless Start / Passengers Door / From: CA000001 / To: DA999999	$268.27	1
14631	LR029882	WIRING - DOOR	LR029882 WIRING - DOOR Hi Line Audio System - 600 W, RHD, Rear View Camera-Fixed, With Keyless Start / Passengers Door / From: CA000001 / To: DA999999	$191.74	1
14631	LR029873	WIRING - DOOR	LR029873 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: CA000001 / To: DA999999	$216.40	1
14631	LR029874	WIRING - DOOR	LR029874 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Passengers Door / From: CA000001 / To: DA999999	$180.13	1
14631	LR029875	WIRING - DOOR	LR029875 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed / Passengers Door / From: CA000001 / To: DA999999	$200.37	1
14631	LR029877	WIRING - DOOR	LR029877 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Surround Camera System / Passengers Door / From: CA000001 / To: DA999999	$307.43	1
14631	LR029884	WIRING - DOOR	LR029884 WIRING - DOOR Hi Line Audio System - 600 W, RHD, Surround Camera System, With Keyless Start / Passengers Door / From: CA000001 / To: DA999999	$268.89	1
14631	LR029879	WIRING - DOOR	LR029879 WIRING - DOOR Keyless Entry/Start - Passive, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: CA000001 / To: DA999999	$218.51	1
14631	LR053069	WIRING - DOOR	LR053069 WIRING - DOOR RHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Passengers Door / From: EA000001	$243.96	1
14631	LR053070	WIRING - DOOR	LR053070 WIRING - DOOR Keyless Entry/Start - Passive, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Passengers Door / From: EA000001	$243.96	1
14631	LR053071	WIRING - DOOR	LR053071 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, RHD, Surround Camera System / Passengers Door / From: EA000001	$235.65	1
14631	LR053072	WIRING - DOOR	LR053072 WIRING - DOOR LHD, Premium Audio 1280 W, Rear View Camera-Fixed, With Keyless Start / Passengers Door / From: EA000001	$240.33	1
14631	LR053073	WIRING - DOOR	LR053073 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Surround Camera System, With Keyless Start / Passengers Door / From: EA000001	$243.96	1
14631	LR053074	WIRING - DOOR	LR053074 WIRING - DOOR Keyless Start - Japanese Script, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Passengers Door / From: EA000001	$240.33	1
14631	LR053075	WIRING - DOOR	LR053075 WIRING - DOOR Keyless Start - Japanese Script, Premium Audio 1280 W, RHD, Surround Camera System / Passengers Door / From: EA000001	$243.96	1
14631	LR053076	WIRING - DOOR	LR053076 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: EA000001	$243.96	1
14631	LR053077	WIRING - DOOR	LR053077 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Passengers Door / From: EA000001	$243.96	1
14631	LR053078	WIRING - DOOR	LR053078 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Rear View Camera-Fixed / Passengers Door / From: EA000001	$232.30	1
14631	LR053079	WIRING - DOOR	LR053079 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Surround Camera System / Passengers Door / From: EA000001	$243.96	1
14631	LR053080	WIRING - DOOR	LR053080 WIRING - DOOR Keyless Entry/Start - Passive, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: EA000001	$243.96	1
14631	LR053057	WIRING - DOOR	LR053057 WIRING - DOOR RHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Drivers Door / From: EA000001	$243.96	1
14631	LR053058	WIRING - DOOR	LR053058 WIRING - DOOR Keyless Entry/Start - Passive, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Drivers Door / From: EA000001	$243.96	1
14631	LR053059	WIRING - DOOR	LR053059 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, RHD, Surround Camera System / Drivers Door / From: EA000001	$235.65	1
14631	LR053060	WIRING - DOOR	LR053060 WIRING - DOOR LHD, Premium Audio 1280 W, Rear View Camera-Fixed, With Keyless Start / Drivers Door / From: EA000001	$239.14	1
14631	LR053061	WIRING - DOOR	LR053061 WIRING - DOOR Hi Line Audio System - 600 W, LHD, Surround Camera System, With Keyless Start / Drivers Door / From: EA000001	$243.96	1
14631	LR053062	WIRING - DOOR	LR053062 WIRING - DOOR Keyless Start - Japanese Script, Premium Audio 1280 W, RHD, Rear View Camera-Fixed / Drivers Door / From: EA000001	$224.44	1
14631	LR053063	WIRING - DOOR	LR053063 WIRING - DOOR Keyless Start - Japanese Script, Premium Audio 1280 W, RHD, Surround Camera System / Drivers Door / From: EA000001	$243.96	1
14631	LR053064	WIRING - DOOR	LR053064 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: EA000001	$243.96	1
14631	LR053065	WIRING - DOOR	LR053065 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Drivers Door / From: EA000001	$243.96	1
14631	LR053066	WIRING - DOOR	LR053066 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Rear View Camera-Fixed / Drivers Door / From: EA000001	$243.96	1
14631	LR053067	WIRING - DOOR	LR053067 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Surround Camera System / Drivers Door / From: EA000001	$243.96	1
14631	LR053068	WIRING - DOOR	LR053068 WIRING - DOOR Keyless Entry/Start - Passive, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: EA000001	$243.96	1
14631	LR062198	WIRING - DOOR	LR062198 WIRING - DOOR RHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Passengers Door / From: FA000001	$232.83	1
14631	LR062199	WIRING - DOOR	LR062199 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Strt-Pass-Jap Script, RHD, Rear View Camera-Fixed / Passengers Door / From: FA000001	$221.78	1
14631	LR062201	WIRING - DOOR	LR062201 WIRING - DOOR Keyless Entry/Strt-Pass-Jap Script, Premium Audio 1280 W, RHD, Surround Camera System / Passengers Door / From: FA000001	$232.83	1
14631	LR062194	WIRING - DOOR	LR062194 WIRING - DOOR LHD, Premium Audio 1280 W, Rear View Camera-Fixed, With Keyless Start / Passengers Door / From: FA000001	$221.63	1
14631	LR062196	WIRING - DOOR	LR062196 WIRING - DOOR LHD, Premium Audio 1280 W, Surround Camera System, With Keyless Start / Passengers Door / From: FA000001	$214.27	1
14631	LR062200	WIRING - DOOR	LR062200 WIRING - DOOR Premium Audio 1280 W, RHD, Rear View Camera-Fixed, With Keyless Start / Passengers Door / From: FA000001	$232.83	1
14631	LR062202	WIRING - DOOR	LR062202 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Start - Japanese Script, RHD, Surround Camera System / Passengers Door / From: FA000001	$232.83	1
14631	LR062191	WIRING - DOOR	LR062191 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: FA000001	$232.83	1
14631	LR062192	WIRING - DOOR	LR062192 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Passengers Door / From: FA000001	$232.83	1
14631	LR062193	WIRING - DOOR	LR062193 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Rear View Camera-Fixed / Passengers Door / From: FA000001	$232.83	1
14631	LR062195	WIRING - DOOR	LR062195 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Surround Camera System / Passengers Door / From: FA000001	$206.96	1
14631	LR062197	WIRING - DOOR	LR062197 WIRING - DOOR Keyless Entry/Strt-Pass-Jap Script, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Passengers Door / From: FA000001	$232.83	1
14631	LR062186	WIRING - DOOR	LR062186 WIRING - DOOR RHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Drivers Door / From: FA000001	$232.83	1
14631	LR062187	WIRING - DOOR	LR062187 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Strt-Pass-Jap Script, RHD, Rear View Camera-Fixed / Drivers Door / From: FA000001	$232.83	1
14631	LR062189	WIRING - DOOR	LR062189 WIRING - DOOR Keyless Entry/Strt-Pass-Jap Script, Premium Audio 1280 W, RHD, Surround Camera System / Drivers Door / From: FA000001	$221.78	1
14631	LR062182	WIRING - DOOR	LR062182 WIRING - DOOR LHD, Premium Audio 1280 W, Rear View Camera-Fixed, With Keyless Start / Drivers Door / From: FA000001	$232.83	1
14631	LR062184	WIRING - DOOR	LR062184 WIRING - DOOR LHD, Premium Audio 1280 W, Surround Camera System, With Keyless Start / Drivers Door / From: FA000001	$197.44	1
14631	LR062188	WIRING - DOOR	LR062188 WIRING - DOOR Premium Audio 1280 W, RHD, Rear View Camera-Fixed, With Keyless Start / Drivers Door / From: FA000001	$232.83	1
14631	LR062190	WIRING - DOOR	LR062190 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Start - Japanese Script, RHD, Surround Camera System / Drivers Door / From: FA000001	$232.83	1
14631	LR062179	WIRING - DOOR	LR062179 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: FA000001	$232.83	1
14631	LR062180	WIRING - DOOR	LR062180 WIRING - DOOR LHD, Rear View Camera-Fixed, Standard Audio (Base), With Keyless Start / Drivers Door / From: FA000001	$232.83	1
14631	LR062181	WIRING - DOOR	LR062181 WIRING - DOOR Keyless Entry/Start - Passive, LHD, Premium Audio 1280 W, Rear View Camera-Fixed / Drivers Door / From: FA000001	$214.27	1
14631	LR062183	WIRING - DOOR	LR062183 WIRING - DOOR Hi Line Audio System - 600 W, Keyless Entry/Start - Passive, LHD, Surround Camera System / Drivers Door / From: FA000001	$224.97	1
14631	LR062185	WIRING - DOOR	LR062185 WIRING - DOOR Keyless Entry/Strt-Pass-Jap Script, RHD, Rear View Camera-Fixed, Standard Audio (Base) / Drivers Door / From: FA000001	$232.83	1
14632	LR029885	WIRING - DOOR	LR029885 WIRING - DOOR Standard Audio (Base), With Keyless Entry/Start - Passive / RH, Rear Door / From: CA000001	$78.73	1
14632	LR029886	WIRING - DOOR	LR029886 WIRING - DOOR Standard Audio (Base), With Keyless Start / RH, Rear Door / From: CA000001	$57.78	1
14632	LR029887	WIRING - DOOR	LR029887 WIRING - DOOR Hi Line Audio System - 600 W, With Keyless Entry/Start - Passive / RH, Rear Door / From: CA000001	$99.19	1
14632	LR029888	WIRING - DOOR	LR029888 WIRING - DOOR Premium Audio 1280 W, With Keyless Start / RH, Rear Door / From: CA000001	$65.62	1
14632	LR029889	WIRING - DOOR	LR029889 WIRING - DOOR Standard Audio (Base), With Keyless Entry/Start - Passive / LH, Rear Door / From: CA000001	$78.15	1
14632	LR029890	WIRING - DOOR	LR029890 WIRING - DOOR Standard Audio (Base), With Keyless Start / LH, Rear Door / From: CA000001	$58.40	1
14632	LR029891	WIRING - DOOR	LR029891 WIRING - DOOR Hi Line Audio System - 600 W, With Keyless Entry/Start - Passive / LH, Rear Door / From: CA000001	$92.60	1
14632	LR029892	WIRING - DOOR	LR029892 WIRING - DOOR Premium Audio 1280 W, With Keyless Start / LH, Rear Door / From: CA000001	$60.56	1
