Drive Shaft - Rear Axle Drive (Propshaft) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Drive Shaft - Rear Axle Drive (Propshaft) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TYP500180 SCREW $5.94 To Order
Photo Part No Description Price (each) Stock
TYG500130 BOLT $2.98 To Order
Photo Part No Description Price (each) Stock
RYG500980 SCREW AND WASHER $1.32 To Order
Photo Part No Description Price (each) Stock
TYF500020 WASHER - SEALING $2.82 To Order
Photo Part No Description Price (each) Stock
TVB500360 PROPELLER SHAFT $1,001.77 To Order
LR037027 PROPELLER SHAFT $848.64 To Order
LR050890 PROPELLER SHAFT $1,167.36 To Order
...and 1 more part variants. See table on right for more details.
View All

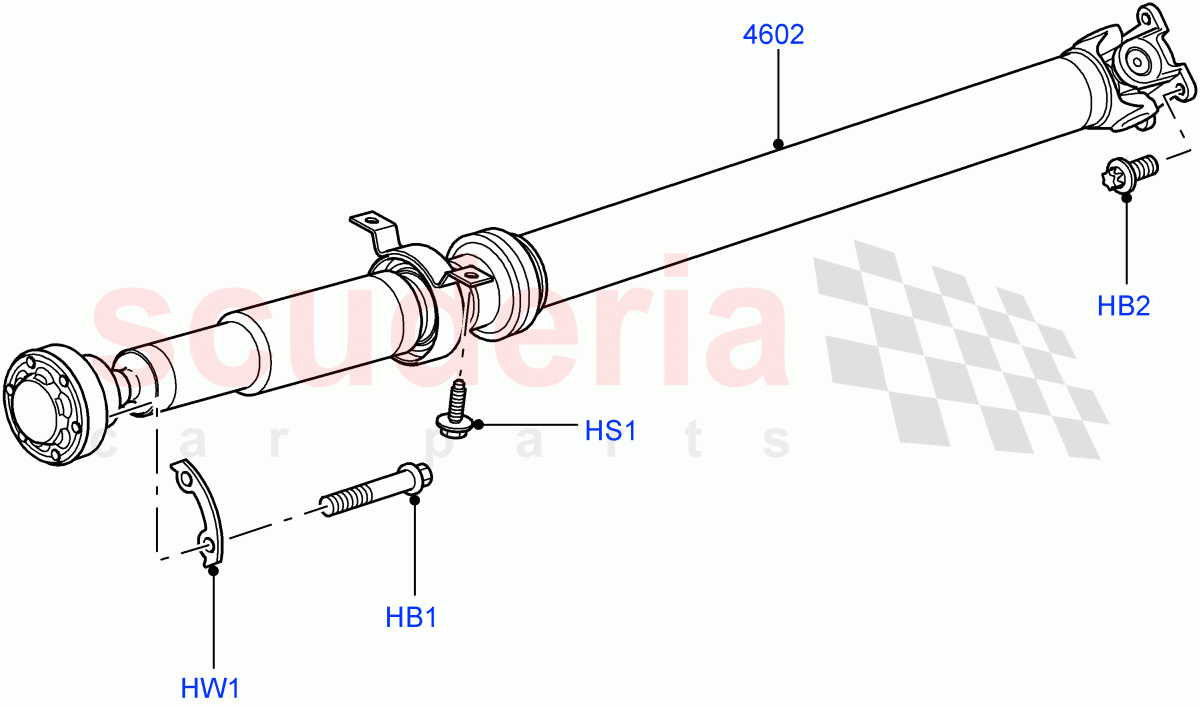

Drive Shaft - Rear Axle Drive (Propshaft) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 TYP500180
SCREW
M10 X 1.5, Service Fit - Flange Type Propshaft Connection / From: AA000001 		$5.94 6
HB2 TYG500130
BOLT
External Torx Head, M12 x 25MM / From: AA000001 		$2.98 4
HS1 RYG500980
SCREW AND WASHER
M8 x 24MM / From: AA000001 		$1.32 2
HW1 TYF500020
WASHER - SEALING
Link, M10, Service Fit - Flange Type Propshaft Connection / From: AA000001 		$2.82 3
4602 TVB500360
PROPELLER SHAFT
From: AA000001 / To: CA612816 		$1,001.77 1
4602 LR037027
PROPELLER SHAFT
From: CA612817 / To: DA999999 		$848.64 1
4602 LR050890
PROPELLER SHAFT
With 1 Speed Transfer Case / From: EA000001 		$1,167.36 1
4602 LR037027
PROPELLER SHAFT
With 2 Spd Trans Case With Ctl Trac / From: EA000001 		$848.64 1
