Find Your Part

Gear Change-Automatic Transmission (Floor) (Cologne V6 4.0 EFI (SOHC), 6 Speed Auto ZF 6HP26 Steptronic, Lion Diesel 2.7 V6 (140KW), 3.6L V8 32V DOHC EFi Diesel Lion) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Gear Change-Automatic Transmission (Floor) (Cologne V6 4.0 EFI (SOHC), 6 Speed Auto ZF 6HP26...

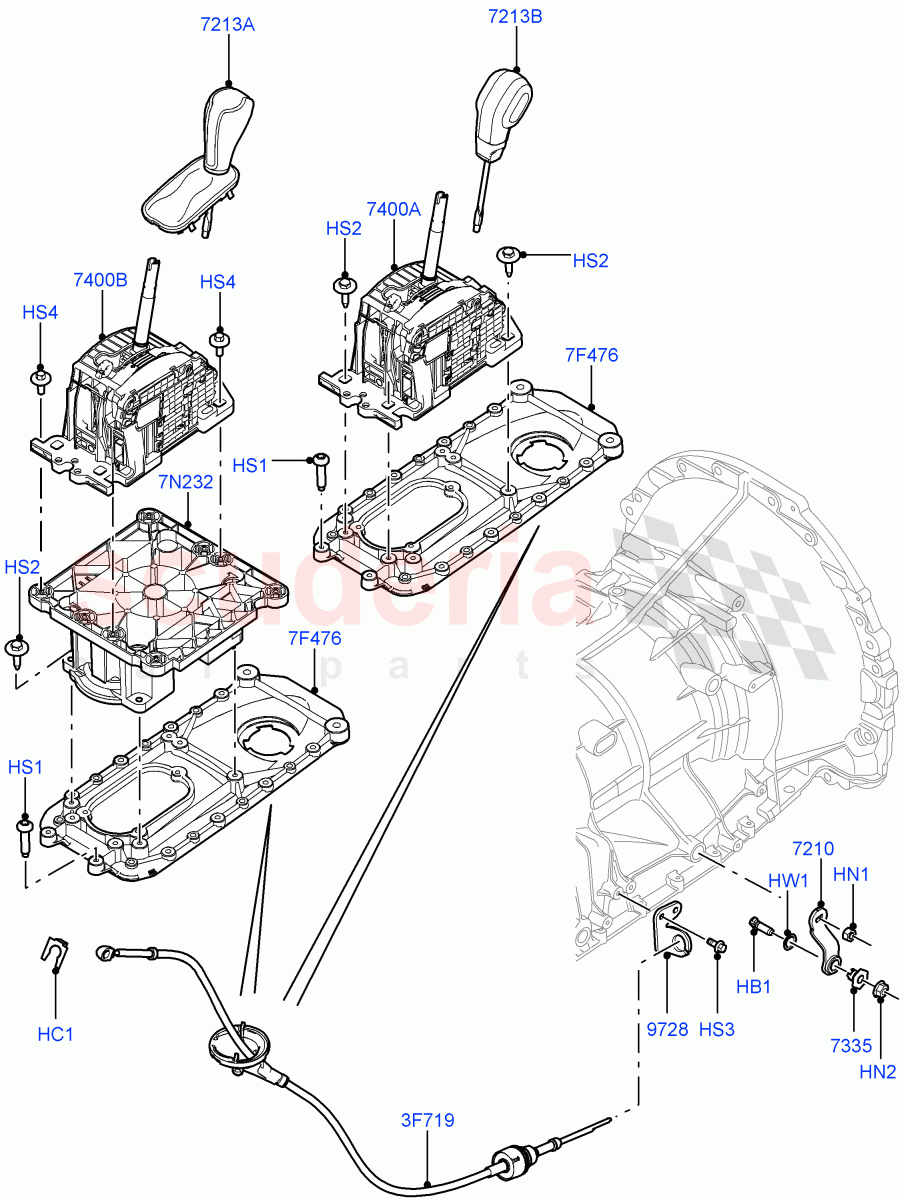

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TYG000050	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYC500030	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500020	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYP500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDG500030	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYF000060	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012704	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TZT500040	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCU500011	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCV500060	CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013873	KNOB - GEAR CHANGE LEVER	Enquire	To Order
	LR013871	KNOB - GEAR CHANGE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013863	CONTROL - GEAR SHIFT	Enquire	To Order
	LR021516	CONTROL - GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UCC500081	COVER PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	TYG000050	BOLT	TYG000050 BOLT M8 X 22MM / From: AA000001	-	1	Enquire
HC1	UYC500030	CLIP	UYC500030 CLIP Attaches Selector Cable / From: AA000001	-	1	Enquire
HN1	VYH500020	NUT - HEX.	VYH500020 NUT - HEX. M8 x 1.0MM / From: AA000001	-	1	Enquire
HN2	FN108046	NUT - HEX.	FN108046 NUT - HEX. HEX Flange, Hexagonal Head, M8 / From: AA000001	-	1	Enquire
HS1	UYP500030	SCREW	UYP500030 SCREW M6 x 25MM, Torx / From: AA000001	-	8	Enquire
HS2	SDG500030	SCREW	SDG500030 SCREW M6 x 27MM, Screw And Washer / From: AA000001	-	4	Enquire
HS3	FS106166	SCREW	FS106166 SCREW HEX Flange, Hexagonal Head, M6 X 16MM / From: AA000001	-	2	Enquire
HW1	TYF000060	WASHER - SPRING	TYF000060 WASHER - SPRING 8MM, WASHERS / From: AA000001	-	1	Enquire
3F719	UCV500060	CABLE	UCV500060 CABLE From: AA000001	-	1	Enquire
7F476	UCC500081	COVER PLATE	UCC500081 COVER PLATE From: AA000001	-	1	Enquire
7210	LR012704	LEVER	LR012704 LEVER From: AA000001	-	1	Enquire
7213B	LR013873	KNOB - GEAR CHANGE LEVER	LR013873 KNOB - GEAR CHANGE LEVER With Leather Gear Shift Knob / Jet / Noble / From: AA000001	-	1	Enquire
7213B	LR013871	KNOB - GEAR CHANGE LEVER	LR013871 KNOB - GEAR CHANGE LEVER With Moulded Gearshift Knob / Ebony / Noble / From: AA000001	-	1	Enquire
7335	TZT500040	BUSH	TZT500040 BUSH From: AA000001	-	1	Enquire
7400A	LR013863	CONTROL - GEAR SHIFT	LR013863 CONTROL - GEAR SHIFT From: AA000001 / To: AA528380	-	1	Enquire
7400A	LR021516	CONTROL - GEAR SHIFT	LR021516 CONTROL - GEAR SHIFT From: AA528381	-	1	Enquire
9728	UCU500011	BRACKET	UCU500011 BRACKET From: AA000001	-	1	Enquire
