Timing Gear (Auxiliary Drive, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Timing Gear (Auxiliary Drive, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

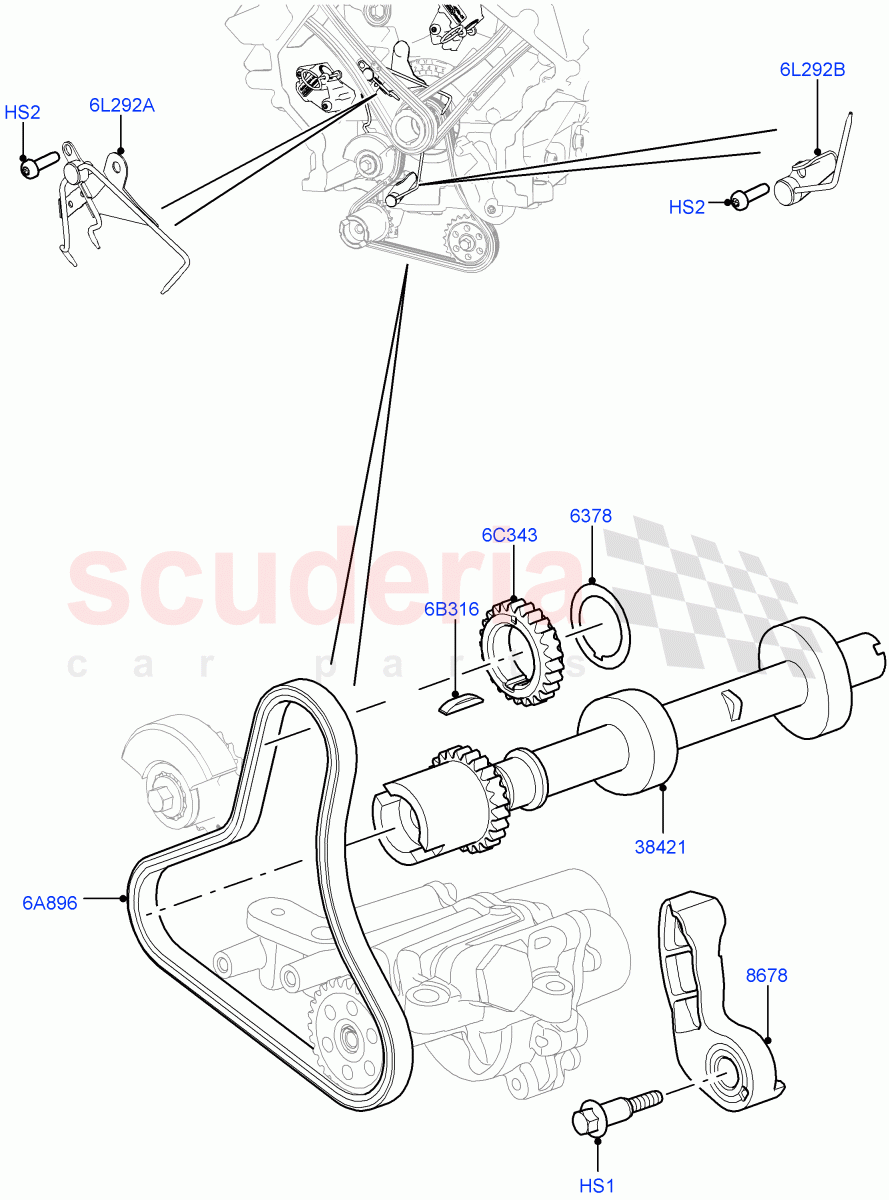

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011522	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010696	WASHER - CRANKSHAFT SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052911	TENSIONER - DRIVE CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037021	SHAFT - FUEL PUMP DRIVE	Enquire	To Order
	LR067417	SHAFT - FUEL PUMP DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032087	CHAIN - AUXILIARY DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010691	KEY - WOODRUFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015236	SPROCKET - CRANKSHAFT	Enquire	To Order
	LR072611	SPROCKET - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041774	JET - CHAIN LUBRICATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042667	JET - CHAIN LUBRICATING	Enquire	To Order
	LR059161	JET - CHAIN LUBRICATING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR011522	SCREW	LR011522 SCREW Auxiliary Drive, M8 X 45MM, Tensioner / From: EA000001	-	1	Enquire
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Washer Nozzle / From: EA000001	-	2	Enquire
6A896	LR032087	CHAIN - AUXILIARY DRIVE	LR032087 CHAIN - AUXILIARY DRIVE From: EA000001	-	1	Enquire
6B316	LR010691	KEY - WOODRUFF	LR010691 KEY - WOODRUFF From: EA000001	-	1	Enquire
6C343	LR015236	SPROCKET - CRANKSHAFT	LR015236 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft / From: EA000001 / To: FA999999	-	1	Enquire
6C343	LR072611	SPROCKET - CRANKSHAFT	LR072611 SPROCKET - CRANKSHAFT Auxiliary Drive, Crankshaft / From: GA000001	-	1	Enquire
6L292A	LR041774	JET - CHAIN LUBRICATING	LR041774 JET - CHAIN LUBRICATING Chain Lubricating, Upper / From: EA000001	-	1	Enquire
6L292B	LR042667	JET - CHAIN LUBRICATING	LR042667 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA000001 / To: EA720633	-	1	Enquire
6L292B	LR059161	JET - CHAIN LUBRICATING	LR059161 JET - CHAIN LUBRICATING Chain Lubricating, Lower / From: EA720634	-	1	Enquire
6378	LR010696	WASHER - CRANKSHAFT SPROCKET	LR010696 WASHER - CRANKSHAFT SPROCKET Crankshaft, Sprocket - Drive / From: EA000001	-	1	Enquire
8678	LR052911	TENSIONER - DRIVE CHAIN	LR052911 TENSIONER - DRIVE CHAIN Auxiliary Drive Chain / From: EA000001	-	1	Enquire
38421	LR037021	SHAFT - FUEL PUMP DRIVE	LR037021 SHAFT - FUEL PUMP DRIVE With Sprocket / From: EA000001 / To: FA741302	-	1	Enquire
38421	LR067417	SHAFT - FUEL PUMP DRIVE	LR067417 SHAFT - FUEL PUMP DRIVE With Sprocket / From: FA741303	-	1	Enquire
