Fuel Lines (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Fuel Lines (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106122 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FX105042 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
FS110206 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FS106256 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR052757 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR050915 PIPE - FUEL Enquire To Order
LR060393 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR010749 VALVE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR050852 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR051740 TUBE - FUEL VAPOUR SEPARATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR011563 BRACKET - FUEL VAPOUR VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR015356 SENSOR - FUEL INJECTOR PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR050851 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR048475 BRACKET - FUEL LINES Enquire To Order
View All

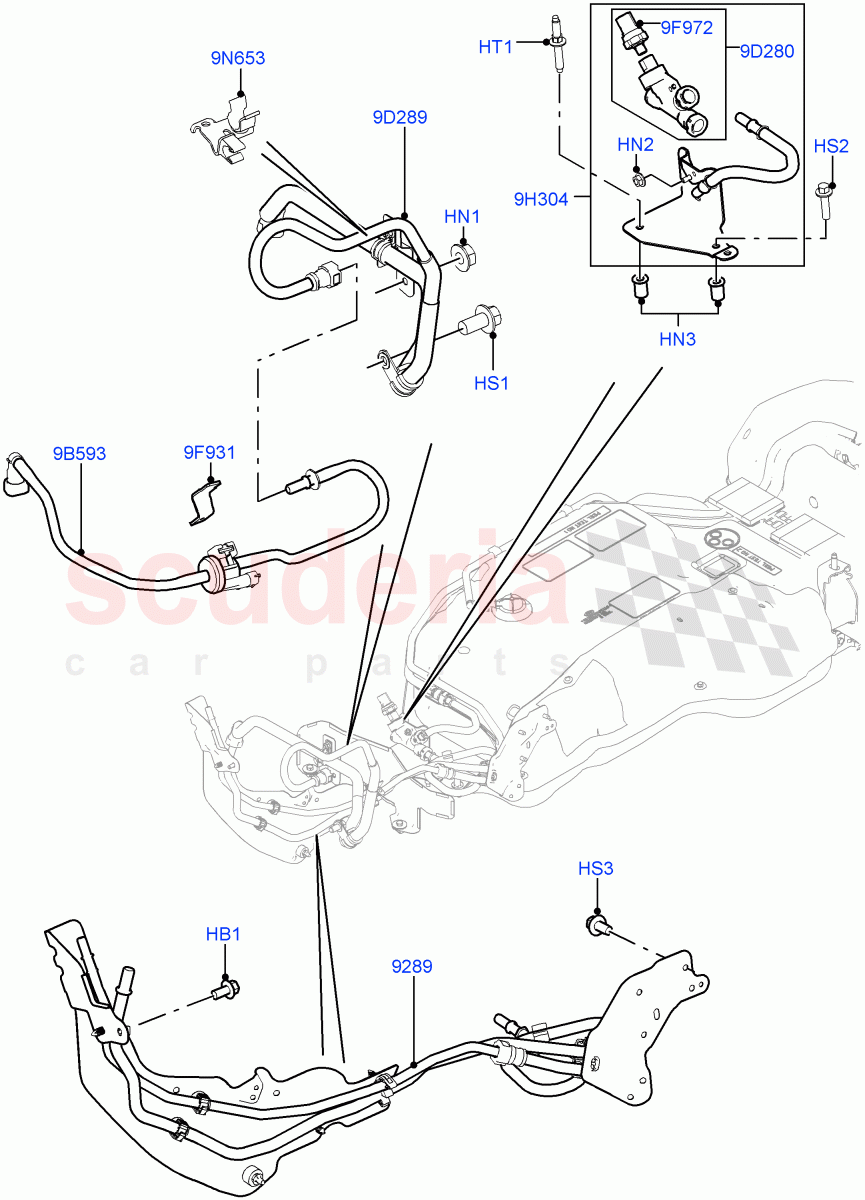

Fuel Lines (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106122
BOLT
M6 x 12MM / From: EA000001 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: EA000001 		- 1 Enquire
HN2 FX105042
NUT - HEX.
M5 X 0.8 / From: EA000001 		- 1 Enquire
HN3 AWR6715
NUT - SPECIAL
M6 / From: EA000001 		- 2 Enquire
HS1 FS110206
BOLT - HEX.HEAD
Hexagonal Head, M10 X 20MM / From: EA000001 		- 1 Enquire
HS2 FS106256
SCREW
M6 x 25MM / From: EA000001 		- 1 Enquire
HS3 FA106126
SCREW
Hexagonal Head, M6 x 12MM / From: EA000001 		- 1 Enquire
HT1 LR052757
STUD
M6 X 25 / M6 X 15 / From: EA000001 		- 1 Enquire
9B593 LR010749
VALVE - FUEL VAPOUR
To Engine, Vapour Line / From: EA000001 		- 1 Enquire
9D280 LR050852
MANIFOLD - FUEL SUPPLY
From: EA000001 		- 1 Enquire
9D289 LR051740
TUBE - FUEL VAPOUR SEPARATOR
From Under Floor Pipes To Vapour Valve, Vapour Line / From: EA000001 		- 1 Enquire
9F931 LR011563
BRACKET - FUEL VAPOUR VALVE
Fuel Vapour Valve / From: EA000001 		- 1 Enquire
9F972 LR015356
SENSOR - FUEL INJECTOR PRESSURE
From: EA000001 		- 1 Enquire
9H304 LR050851
BRACKET - FUEL TUBE SUPPORT
From: EA000001 		- 1 Enquire
9N653 LR048475
BRACKET - FUEL LINES
From: EA000001 		- 1 Enquire
9289 LR050915
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: EA000001 / To: EA354920 		- 1 Enquire
9289 LR060393
PIPE - FUEL
Feed, From Fuel Tank To Under Floor Pipes, Under Floor, Vapour Line / From: EA354921 		- 1 Enquire
