Vacuum Control And Air Injection (3.0L Dohc Gdi Sc V6 Petrol, Rhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, RHD) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009660 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR000395 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR011273 SCREW Enquire To Order
LR060479 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR048796 PUMP - VACUUM Enquire To Order
LR082226 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR012685 SEAL - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR052584 MANIFOLD - VACUUM SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR052586 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR041668 HOSE - VACUUM Enquire To Order
LR105285 HOSE - VACUUM Enquire To Order
View All

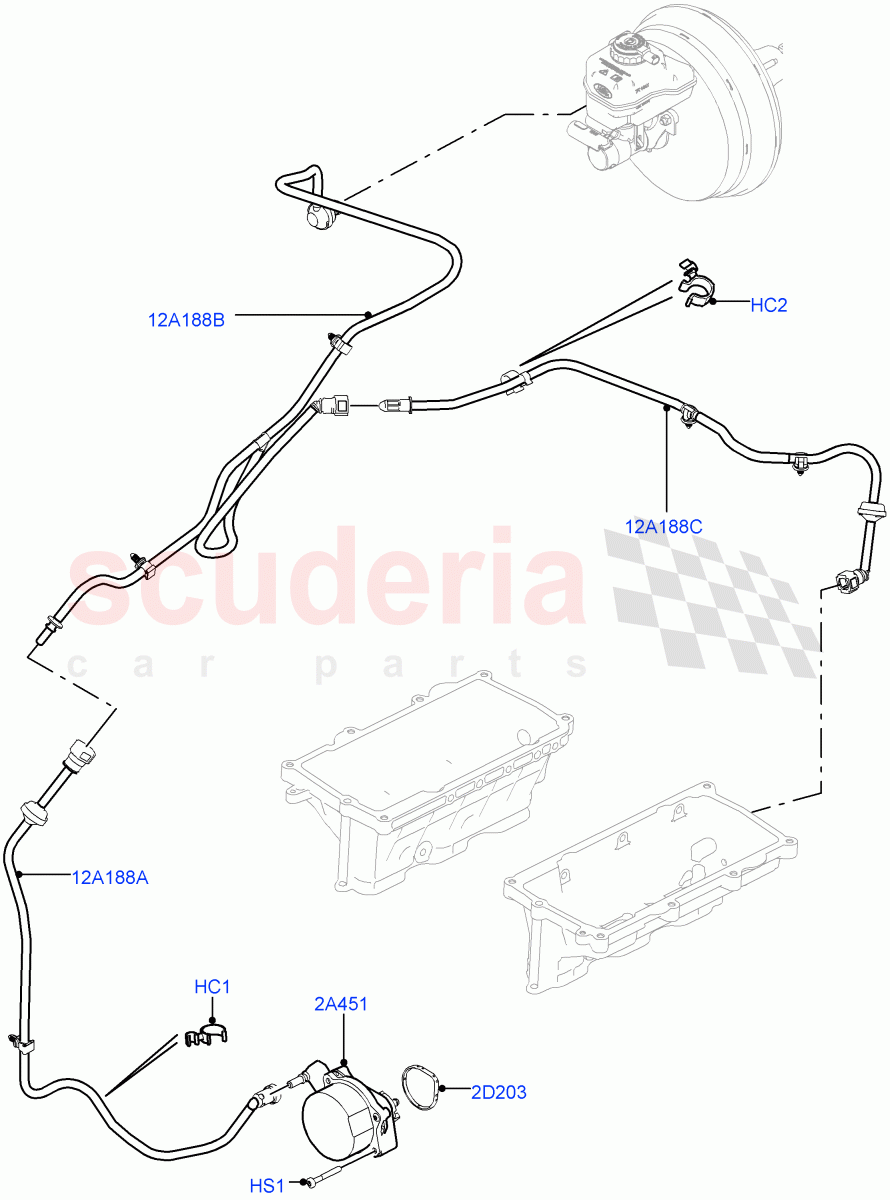

Vacuum Control And Air Injection (3.0L DOHC GDI SC V6 PETROL, RHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR009660
CLIP
Double / From: EA000001 		- 1 Enquire
HC2 LR000395
CLIP - DOUBLE
Double / From: EA000001 		- 1 Enquire
HS1 LR011273
SCREW
M6 X 45MM, Pump - Vacuum / From: EA000001 / To: EA999999 		- 2 Enquire
HS1 LR060479
SCREW
M6 X 65MM, Pump - Vacuum / From: FA000001 		- 2 Enquire
2A451 LR048796
PUMP - VACUUM
From: EA000001 / To: EA999999 		- 1 Enquire
2A451 LR082226
PUMP - VACUUM
From: FA000001 		- 1 Enquire
2D203 LR012685
SEAL - VACUUM PUMP
From: EA000001 		- 1 Enquire
12A188A LR052584
MANIFOLD - VACUUM SUPPLY
Pump - Vacuum / From: EA000001 		- 1 Enquire
12A188B LR052586
HOSE - VACUUM
To Brake Booster / From: EA000001 		- 1 Enquire
12A188C LR041668
HOSE - VACUUM
Vacuum Pump To Inlet Manifold / From: EA000001 / To: EA999999 		- 1 Enquire
12A188C LR105285
HOSE - VACUUM
Vacuum Pump To Inlet Manifold / From: FA000001 		- 1 Enquire
