Air Cleaner (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Air Cleaner (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
PJQ500012 MOUNTING - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR161843 FILTER - AIR CLEANER Enquire To Order
Photo Part No Description Price (each) Stock
LR014311 BRACKET - AIR DUCT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR013711 TUBE - AIR CLEANER INTAKE Enquire To Order
Photo Part No Description Price (each) Stock
LR051105 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR051106 CLEANER - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR035726 SENSOR - MASS AIR FLOW Enquire To Order
Photo Part No Description Price (each) Stock
LR044457 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR051133 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR051138 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR020024 DUCT - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR020022 DUCT - AIR INTAKE Enquire To Order
View All

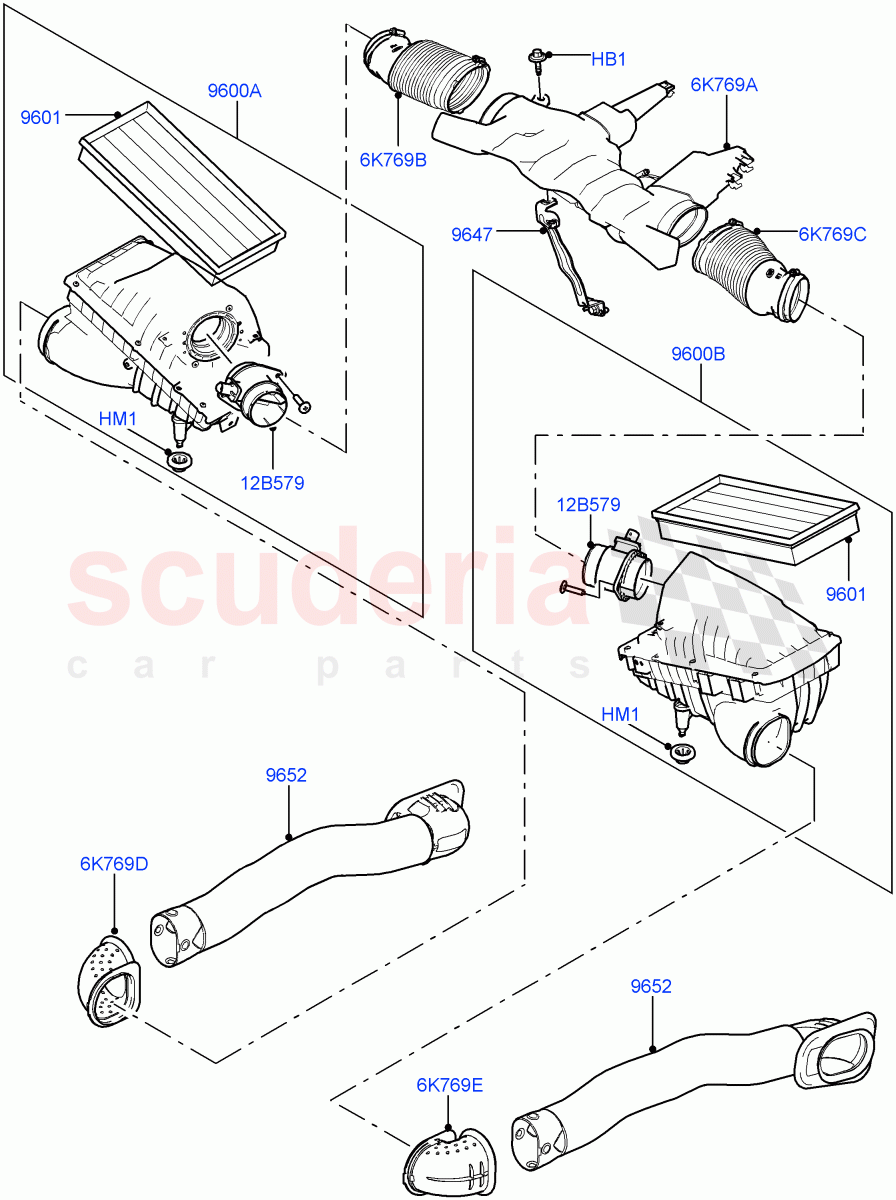

Air Cleaner (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: EA000001 		- 1 Enquire
HM1 PJQ500012
MOUNTING - RUBBER
Air Cleaner Box Holdown, Mounting Rubber / From: EA000001 		- 4 Enquire
6K769A LR044457
DUCT - AIR
Air Cleaner To Throttle Body, Centre / From: EA000001 		- 1 Enquire
6K769B LR051133
DUCT - AIR
RH, Air Cleaner To Throttle Body / From: EA000001 		- 1 Enquire
6K769C LR051138
DUCT - AIR
LH, Air Cleaner To Throttle Body / From: EA000001 		- 1 Enquire
6K769D LR020024
DUCT - AIR
RH, Elbow Connector / From: EA000001 		- 1 Enquire
6K769E LR020022
DUCT - AIR INTAKE
LH, Elbow Connector / From: EA000001 		- 1 Enquire
12B579 LR035726
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor / From: EA000001 		- 2 Enquire
9600A LR051105
CLEANER - AIR
RH / From: EA000001 		- 1 Enquire
9600B LR051106
CLEANER - AIR
LH / From: EA000001 		- 1 Enquire
9601 LR161843
FILTER - AIR CLEANER
From: EA000001 		- 2 Enquire
9647 LR014311
BRACKET - AIR DUCT SUPPORT
Air Duct Support / From: EA000001 		- 1 Enquire
9652 LR013711
TUBE - AIR CLEANER INTAKE
From: EA000001 		- 2 Enquire
