Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 4WD, With 2 Spd Trans Case With Ctl Trac) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Transfer Drive Components (8 Speed Auto Trans ZF 8HP70 4WD, With 2 Spd Trans Case With Ctl Trac)...

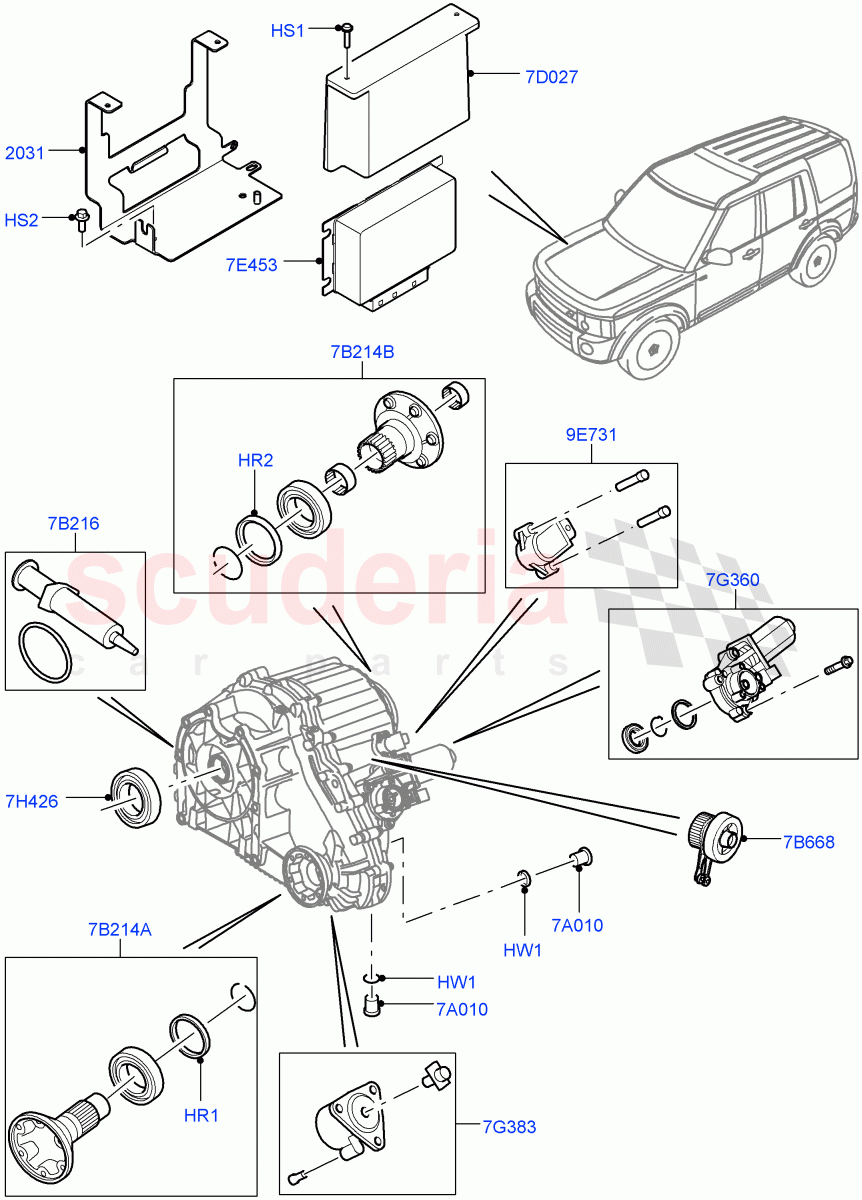

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	XYP500230	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYF500030	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051738	BRACKET - ELECTRICAL UNIT	Enquire	To Order
	LR051739	BRACKET - ELECTRICAL UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYB500020	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105429	KIT - TRANSFER CASE CLUTCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052217	COVER - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053307	MODULE - TRANSFER SHIFT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGH500040	MOTOR - TRANSFER CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500030	SEAL - TRANSFER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IAB500191	SENSOR - TRIPMINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order
	LR086059	FLANGE - PROPSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal / From: EA000001	-	1	Enquire
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal / From: EA000001	-	1	Enquire
HS1	XYP500230	SCREW	XYP500230 SCREW 4 X 16MM / From: EA000001	-	2	Enquire
HS2	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: EA000001	-	2	Enquire
HW1	IYF500030	WASHER	IYF500030 WASHER M16, Plug - Oil Drain / From: EA000001	-	2	Enquire
7A010	IYB500020	PLUG - OIL DRAIN	IYB500020 PLUG - OIL DRAIN Filler Plug, M16, Plug - Oil Drain / From: EA000001	-	2	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: EA000001 / To: GA820873	-	1	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: GA820874	-	1	Enquire
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear / From: EA000001	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit / From: EA000001	-	1	Enquire
7B668	LR105429	KIT - TRANSFER CASE CLUTCH	LR105429 KIT - TRANSFER CASE CLUTCH From: EA000001	-	1	Enquire
7D027	LR052217	COVER - MODULE	LR052217 COVER - MODULE Module - Transfer Case Shift Control / From: EA000001	-	1	Enquire
7E453	LR053307	MODULE - TRANSFER SHIFT CONTROL	LR053307 MODULE - TRANSFER SHIFT CONTROL From: EA000001	-	1	Enquire
7G360	IGH500040	MOTOR - TRANSFER CASE	IGH500040 MOTOR - TRANSFER CASE Transfer Case Shifter / From: EA000001	-	1	Enquire
7G383	IGF500011	SOLENOID - ELECTRONIC PRESSURE CTL	IGF500011 SOLENOID - ELECTRONIC PRESSURE CTL Transfer Box / From: EA000001	-	1	Enquire
7H426	IZB500030	SEAL - TRANSFER BOX	IZB500030 SEAL - TRANSFER BOX Input Shaft / From: EA000001	-	1	Enquire
9E731	IAB500191	SENSOR - TRIPMINDER	IAB500191 SENSOR - TRIPMINDER High/Low Position Sensor / From: EA000001	-	1	Enquire
2031	LR051738	BRACKET - ELECTRICAL UNIT	LR051738 BRACKET - ELECTRICAL UNIT LHD / Module - Transfer Case Shift Control / From: EA000001	-	1	Enquire
2031	LR051739	BRACKET - ELECTRICAL UNIT	LR051739 BRACKET - ELECTRICAL UNIT RHD / Module - Transfer Case Shift Control / From: EA000001	-	1	Enquire
