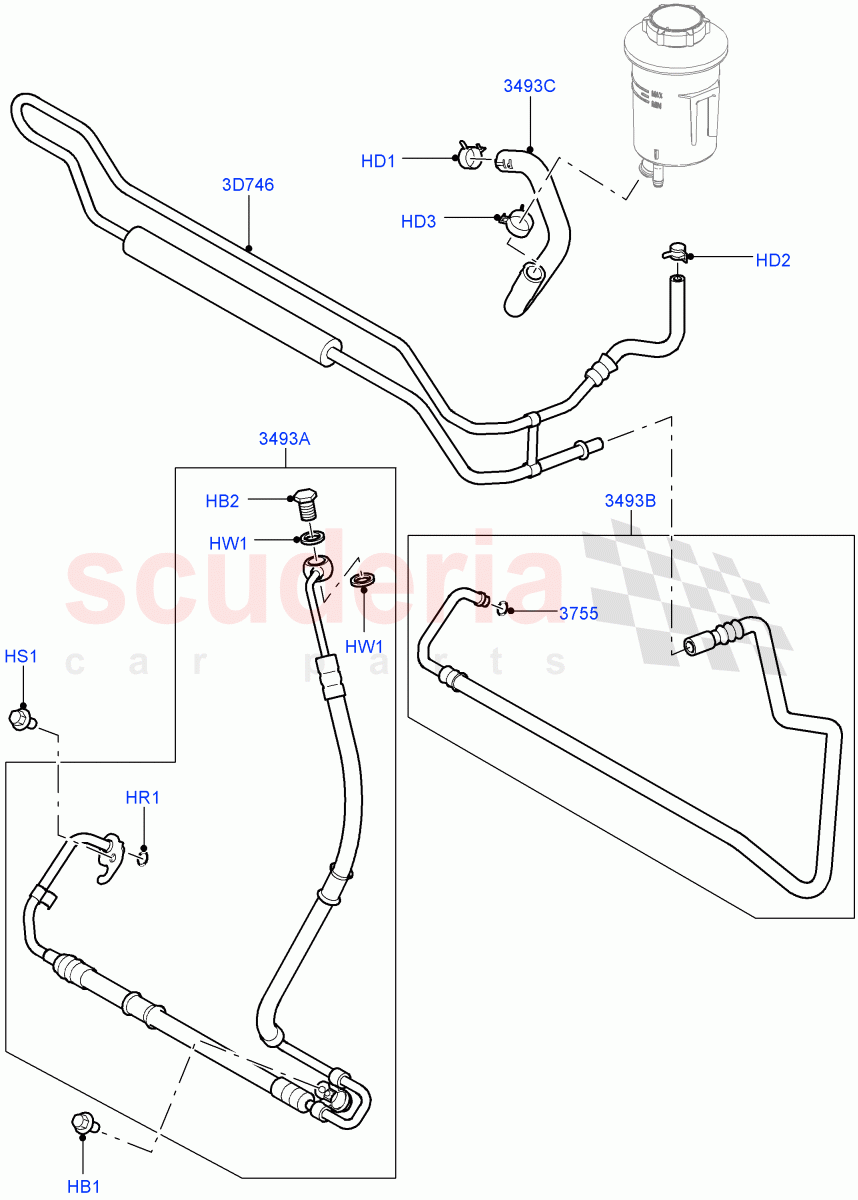

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126M	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QFM100041	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000030	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGM000010	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009346	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166M	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020213	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020210	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	QGC500111	COIL - COOLING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126M	BOLT	FS106126M BOLT Hexagonal Head, M6 x 12MM / From: AA000001	-	1	Enquire
HB2	QFM100041	BOLT - BANJO	QFM100041 BOLT - BANJO Banjo Bolt / From: AA000001	-	1	Enquire
HD1	QGM000030	CLIP	QGM000030 CLIP Hose / From: AA000001	-	1	Enquire
HD2	QGM000020	CLIP	QGM000020 CLIP Hose / From: AA000001	-	2	Enquire
HD3	QGM000010	CLAMP	QGM000010 CLAMP Hose / From: AA000001	-	1	Enquire
HR1	LR009346	O-RING	LR009346 O-RING	-	1	Enquire
HS1	FS108166M	SCREW	FS108166M SCREW M8 X 16MM / From: AA000001	-	1	Enquire
HW1	LR020213	WASHER	LR020213 WASHER 16MM / From: AA000001	-	2	Enquire
3D746	QGC500111	COIL - COOLING	QGC500111 COIL - COOLING From: AA000001	-	1	Enquire
3493A	QEP500222	HOSE - PUMP TO STEERING GEAR	QEP500222 HOSE - PUMP TO STEERING GEAR RHD / From: AA000001	-	1	Enquire
3493A	QEP500232	HOSE	QEP500232 HOSE LHD / From: AA000001	-	1	Enquire
3493B	QEP500431	HOSE	QEP500431 HOSE RHD / From: AA000001	-	1	Enquire
3493B	QEP500810	HOSE	QEP500810 HOSE LHD / From: AA000001	-	1	Enquire
3493C	QEH000276	HOSE	QEH000276 HOSE From: AA000001 / To: AA536980	-	1	Enquire
3493C	LR023344	HOSE - RESERVOIR TO PUMP	LR023344 HOSE - RESERVOIR TO PUMP From: AA536981	-	1	Enquire
3755	LR020210	O-RING	LR020210 O-RING 6MM / From: AA000001	-	1	Enquire
