Air Conditioning Condensr/Compressr (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Air Conditioning Condensr/Compressr (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108207L BOLT - FLANGED HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR018706 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
JUU500110 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR015151 COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR018404 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR027981 CLUTCH - A/C COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
JRJ500020 DRYER - COMPRESSOR AIR Enquire To Order
View All

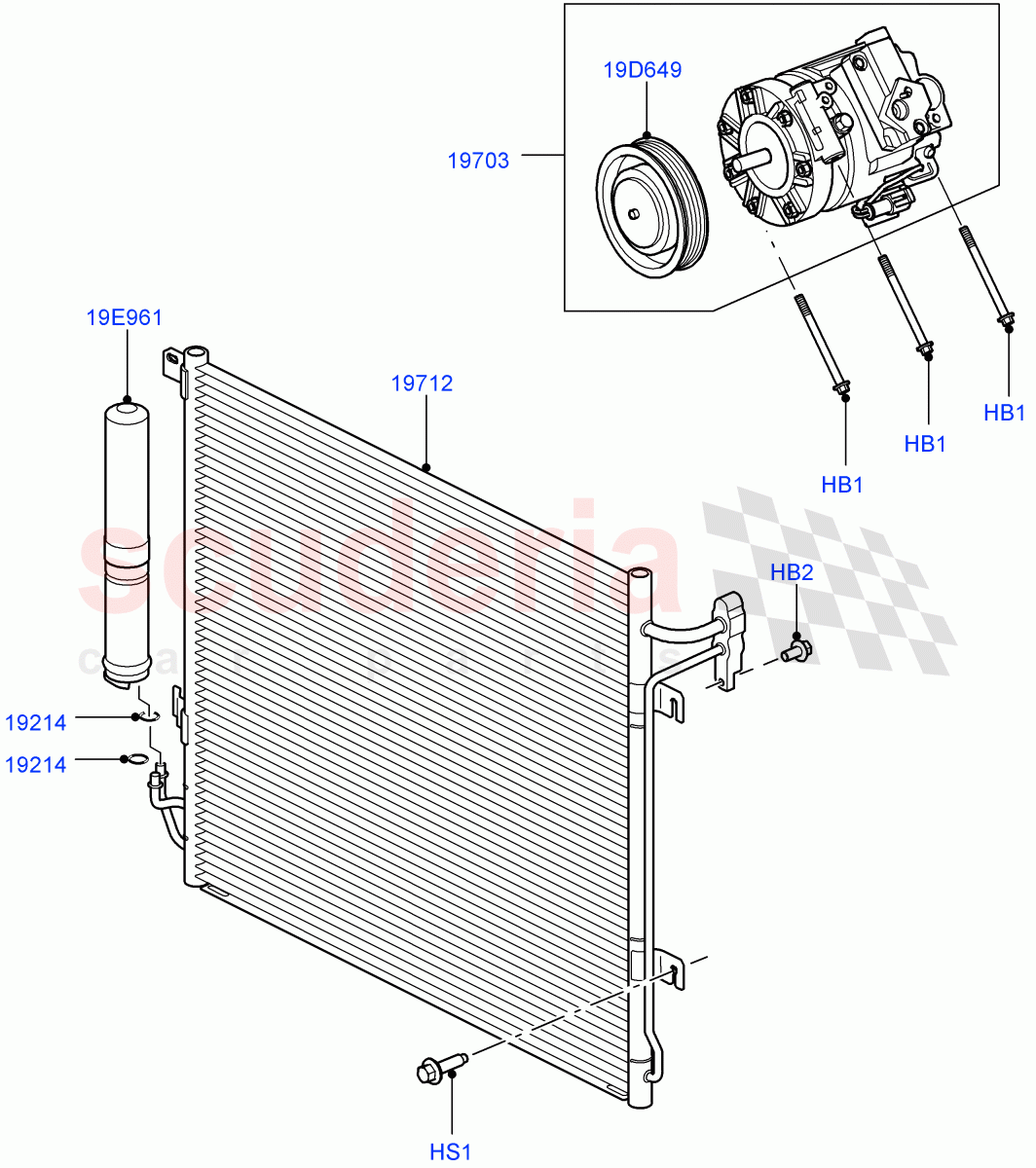

Air Conditioning Condensr/Compressr (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB108207L
BOLT - FLANGED HEX.
M8 x 100MM / From: AA000001 		- 3 Enquire
HB2 LR018706
SCREW
Attaches To Condenser, M6 x 12MM / From: AA000001 		- 1 Enquire
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: AA000001 		- 4 Enquire
19D649 LR027981
CLUTCH - A/C COMPRESSOR
From: AA000001 		- 1 Enquire
19E961 JRJ500020
DRYER - COMPRESSOR AIR
From: AA000001 		- 1 Enquire
19214 JUU500110
SEAL
From: AA000001 		- 2 Enquire
19703 LR015151
COMPRESSOR
From: AA000001 		- 1 Enquire
19712 LR018404
CONDENSER
From: AA000001 		- 1 Enquire
