Insulators - Front ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Insulators - Front ((V) FROMAA000001)

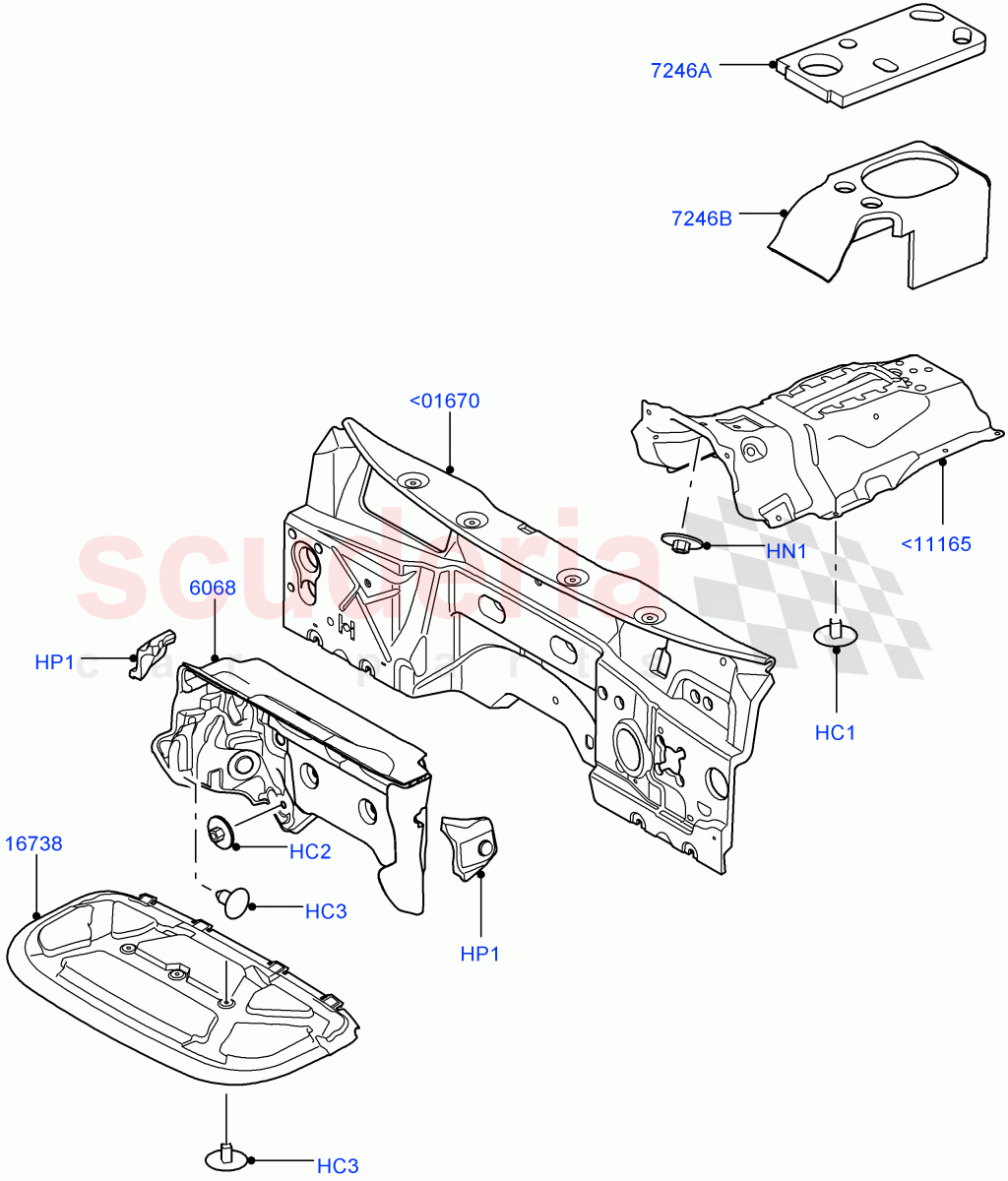

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AFU3711	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EYC500320	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	Enquire	To Order
	BTR2985	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CJD500020	PLUG	Enquire	To Order
	CJD500030	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013156	INSULATOR - DASH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013222	INSULATOR - HOOD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ETR500120	INSULATOR - GEAR CHANGE LEVER	Enquire	To Order
	ETR500130	INSULATOR - GEAR CHANGE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ETR500062	INSULATOR - GEAR CHANGE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017439	INSULATOR - DASH PANEL	Enquire	To Order
	LR017440	INSULATOR - DASH PANEL	Enquire	To Order
	LR017441	INSULATOR - DASH PANEL	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013223	INSULATOR - TUNNEL	Enquire	To Order
	LR013225	INSULATOR - TUNNEL	Enquire	To Order
	LR046702	INSULATOR - TUNNEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<01670	LR017439	INSULATOR - DASH PANEL	LR017439 INSULATOR - DASH PANEL 6 Speed Auto ZF 6HP26 Steptronic, RHD / From: AA000001 / To: AA524233	-	1	Enquire
<01670	LR017440	INSULATOR - DASH PANEL	LR017440 INSULATOR - DASH PANEL 6 Speed Auto ZF 6HP26 Steptronic, LHD / From: AA000001 / To: AA524233	-	1	Enquire
<01670	LR017441	INSULATOR - DASH PANEL	LR017441 INSULATOR - DASH PANEL 6 Speed Man ZF S6-53, RHD / From: AA000001 / To: AA524233	-	1	Enquire
<01670	LR017442	INSULATOR - DASH PANEL	LR017442 INSULATOR - DASH PANEL 6 Speed Man ZF S6-53, LHD / From: AA000001 / To: AA524233	-	1	Enquire
<01670	LR020539	INSULATOR - BULKHEAD	LR020539 INSULATOR - BULKHEAD 6 Speed Auto Transmission ZF 6HP28, LHD / From: AA524234 / To: DA999999	-	1	Enquire
<01670	LR020540	INSULATOR - BULKHEAD	LR020540 INSULATOR - BULKHEAD 6 Speed Man ZF S6-53, RHD / From: AA524234 / To: BA999999	-	1	Enquire
<01670	LR020541	INSULATOR - BULKHEAD	LR020541 INSULATOR - BULKHEAD 6 Speed Man ZF S6-53, LHD / From: AA524234 / To: BA999999	-	1	Enquire
<01670	LR020536	INSULATOR - BULKHEAD	LR020536 INSULATOR - BULKHEAD 6 Speed Auto Transmission ZF 6HP28, RHD / From: AA524234 / To: DA999999	-	1	Enquire
<01670	LR020542	INSULATOR - BULKHEAD	LR020542 INSULATOR - BULKHEAD 3.0L DOHC GDI SC V6 PETROL, RHD / From: EA000001	-	1	Enquire
<01670	LR020543	INSULATOR - BULKHEAD	LR020543 INSULATOR - BULKHEAD 3.0L DOHC GDI SC V6 PETROL, LHD / From: EA000001	-	1	Enquire
<01670	LR020536	INSULATOR - BULKHEAD	LR020536 INSULATOR - BULKHEAD 8 Speed Auto Trans ZF 8HP70 4WD, RHD / From: CA000001 / To: DA999999	-	1	Enquire
<01670	LR020536	INSULATOR - BULKHEAD	LR020536 INSULATOR - BULKHEAD 3.0L 24V V6 Turbo Diesel Std Flow, RHD / From: EA000001	-	1	Enquire
<01670	LR020539	INSULATOR - BULKHEAD	LR020539 INSULATOR - BULKHEAD 8 Speed Auto Trans ZF 8HP70 4WD, LHD / From: CA000001 / To: DA999999	-	1	Enquire
<01670	LR020539	INSULATOR - BULKHEAD	LR020539 INSULATOR - BULKHEAD 3.0L 24V DOHC V6 TC Diesel, LHD / From: EA000001	-	1	Enquire
<11165	LR013223	INSULATOR - TUNNEL	LR013223 INSULATOR - TUNNEL 6 Speed Auto ZF 6HP26 Steptronic / Tunnel Insulator / From: AA000001 / To: BA999999	-	1	Enquire
<11165	LR013225	INSULATOR - TUNNEL	LR013225 INSULATOR - TUNNEL 6 Speed Man ZF S6-53 / Tunnel Insulator / From: AA000001	-	1	Enquire
<11165	LR046702	INSULATOR - TUNNEL	LR046702 INSULATOR - TUNNEL 8 Speed Auto Trans ZF 8HP70 4WD / Tunnel Insulator / From: DA669093	-	1	Enquire
<11165	LR013223	INSULATOR - TUNNEL	LR013223 INSULATOR - TUNNEL 8 Speed Auto Trans ZF 8HP70 4WD / Tunnel Insulator / From: CA000001 / To: DA669092	-	1	Enquire
HC1	AFU3711	Clip	AFU3711 Clip Tunnel Insulator / From: AA000001	-	6	Enquire
HC2	EYC500320	CLIP	EYC500320 CLIP 5.0MM, Bulkhead / From: AA000001	-	3	Enquire
HC3	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Hood Assy, Push Pin / From: AA000001	-	11	Enquire
HC3	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Bulkhead, Push Pin / From: AA000001	-	2	Enquire
HN1	WYH500050	NUT - LOCKING	WYH500050 NUT - LOCKING M5, Tunnel Insulator / From: AA000001	-	9	Enquire
HP1	CJD500020	PLUG	CJD500020 PLUG RH, Foam / From: AA000001	-	1	Enquire
HP1	CJD500030	PLUG	CJD500030 PLUG LH, Foam / From: AA000001	-	1	Enquire
6068	LR013156	INSULATOR - DASH PANEL	LR013156 INSULATOR - DASH PANEL Bulkhead / From: AA000001	-	1	Enquire
7246A	ETR500120	INSULATOR - GEAR CHANGE LEVER	ETR500120 INSULATOR - GEAR CHANGE LEVER RH, Automatic, Gearshift Lever / From: AA000001	-	1	Enquire
7246A	ETR500130	INSULATOR - GEAR CHANGE LEVER	ETR500130 INSULATOR - GEAR CHANGE LEVER LH, Automatic, Gearshift Lever / From: AA000001	-	1	Enquire
7246B	ETR500062	INSULATOR - GEAR CHANGE LEVER	ETR500062 INSULATOR - GEAR CHANGE LEVER 6 Speed Manual Trans M66 - AWD / Gearshift Lever / From: AA000001	-	1	Enquire
16738	LR013222	INSULATOR - HOOD	LR013222 INSULATOR - HOOD From: AA000001	-	1	Enquire
