Front Suspension Struts And Springs (With Standard Duty Coil Spring Susp, Front Coil Rear Air Levelling 2Cal) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Suspension Struts And Springs (With Standard Duty Coil Spring Susp, Front Coil Rear Air...

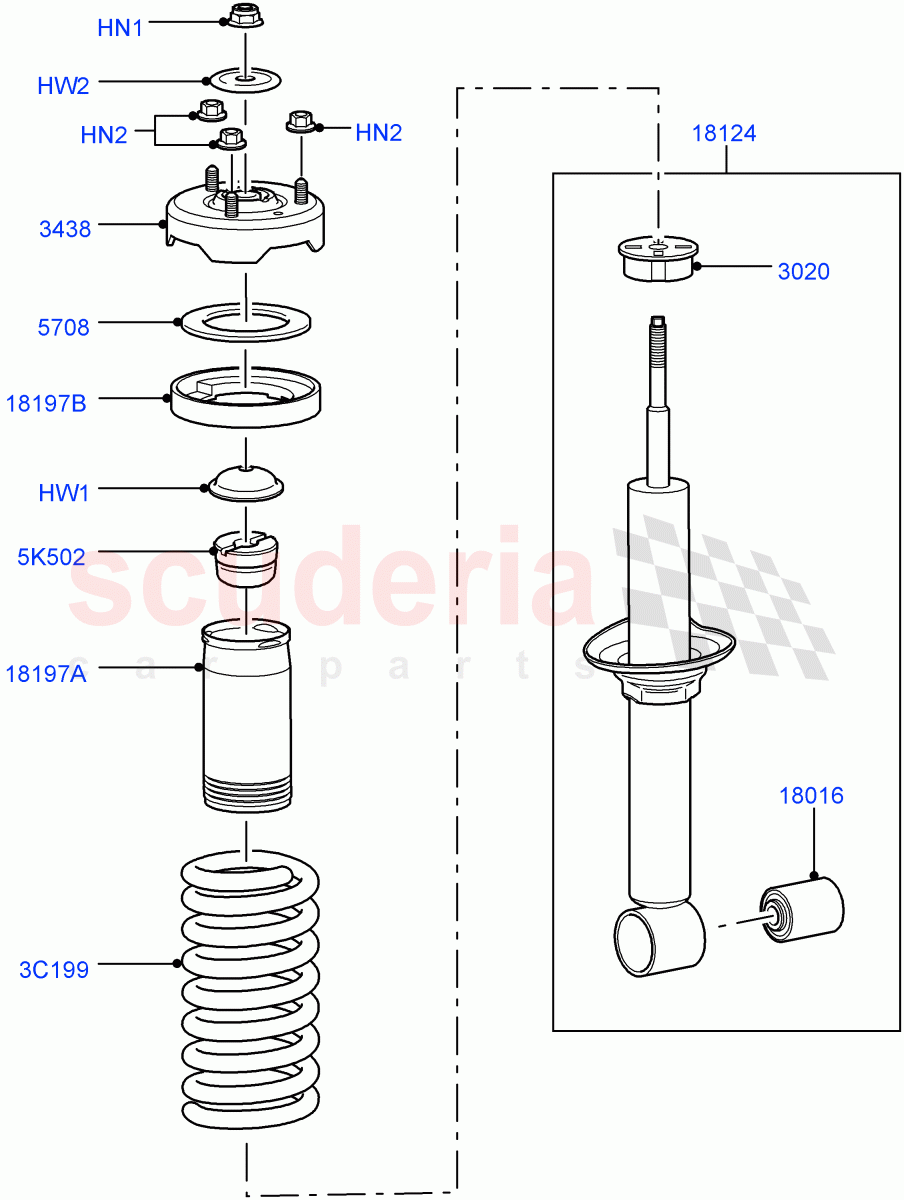

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FY114047	NUT (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNS000041	PLATE (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNS500010	WASHER - DAMPER LOCKING (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNO000011	BUMP STOP (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNX000014	HOUSING (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNG500010	SPACER (NON HAZ)	Enquire	To Order
	RNG500020	SPACER (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ROA000022	BUSH - SHOCK ABSORBER (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNB000498	SHOCK ABSORBER (NON HAZ)	Enquire	To Order
	LR043569	SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	REB500050	SPRING	Enquire	To Order
	LR043568	SPRING - SUSPENSION - FRONT (NON HAZ)	Enquire	To Order
	REB000562	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RPC500021	BUFFER - SPRING ASSIST (NON HAZ)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNE000011	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RBC500011	INSULATOR (NON HAZ)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	FY114047	NUT (NON HAZ)	FY114047 NUT (NON HAZ) M14 / From: AA000001	-	2	Enquire
HN2	FY110056	NUT	FY110056 NUT M10 / From: AA000001	-	6	Enquire
HW1	RNS000041	PLATE (NON HAZ)	RNS000041 PLATE (NON HAZ) Bump Washer / From: AA000001	-	2	Enquire
HW2	RNS500010	WASHER - DAMPER LOCKING (NON HAZ)	RNS500010 WASHER - DAMPER LOCKING (NON HAZ)	-	2	Enquire
3C199	REB500050	SPRING	REB500050 SPRING From: AA000001 / To: AA515355	-	2	Enquire
3C199	LR043568	SPRING - SUSPENSION - FRONT (NON HAZ)	LR043568 SPRING - SUSPENSION - FRONT (NON HAZ) From: DA000001	-	2	Enquire
3C199	REB000562	SPRING	REB000562 SPRING From: AA515356 / To: CA999999	-	2	Enquire
5K502	RPC500021	BUFFER - SPRING ASSIST (NON HAZ)	RPC500021 BUFFER - SPRING ASSIST (NON HAZ) From: AA000001	-	2	Enquire
3020	RNO000011	BUMP STOP (NON HAZ)	RNO000011 BUMP STOP (NON HAZ) From: AA000001	-	2	Enquire
3438	RNX000014	HOUSING (NON HAZ)	RNX000014 HOUSING (NON HAZ) From: AA000001	-	2	Enquire
5708	RNG500010	SPACER (NON HAZ)	RNG500010 SPACER (NON HAZ) Grey / From: AA000001	-	2	Enquire
5708	RNG500020	SPACER (NON HAZ)	RNG500020 SPACER (NON HAZ) Blue / From: AA000001	-	2	Enquire
18016	ROA000022	BUSH - SHOCK ABSORBER (NON HAZ)	ROA000022 BUSH - SHOCK ABSORBER (NON HAZ) From: AA000001	-	2	Enquire
18124	RNB000498	SHOCK ABSORBER (NON HAZ)	RNB000498 SHOCK ABSORBER (NON HAZ) From: AA000001 / To: CA999999	-	2	Enquire
18124	LR043569	SHOCK ABSORBER	LR043569 SHOCK ABSORBER From: DA000001	-	2	Enquire
18197A	RNE000011	COVER - DUST	RNE000011 COVER - DUST From: AA000001	-	2	Enquire
18197B	RBC500011	INSULATOR (NON HAZ)	RBC500011 INSULATOR (NON HAZ) From: AA000001	-	2	Enquire
