Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Fuel Lines (3.0 V6 Diesel) ((V) FROMAA000001)

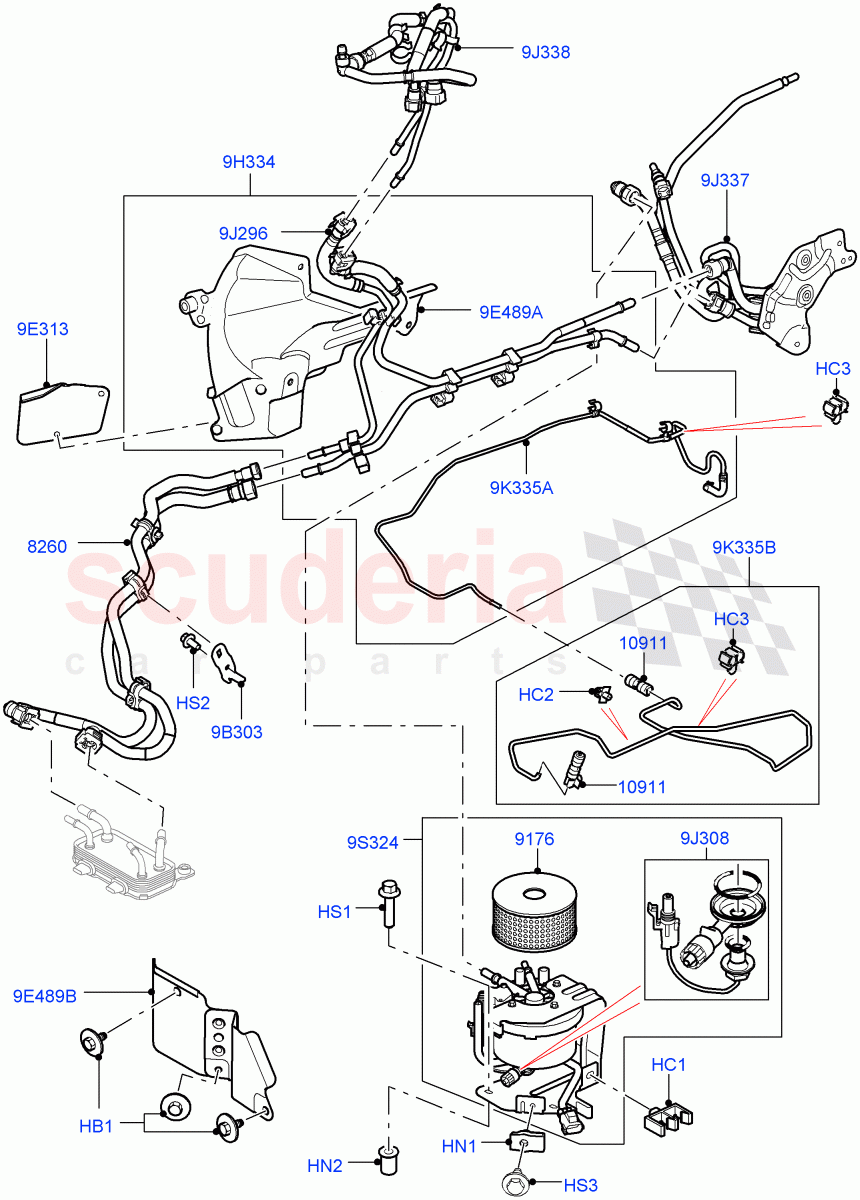

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYP500100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC500081	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYC100880	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYC500020	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AWR6715	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106257	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015422	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009705	ELEMENT - FUEL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WKD500140	CONNECTOR - CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015980	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WKU500150	SHIELD - FUEL TUBES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015396	TUBE	Enquire	To Order
	LR015395	TUBE	Enquire	To Order
	LR021659	TUBE	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015421	TUBE - FUEL RETURN	Enquire	To Order
	LR030556	TUBE - FUEL RETURN	Enquire	To Order
	LR015421	TUBE - FUEL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WKW500080	SENSOR - WATER DETECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017446	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015416	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010416	FILTER - FUEL	Enquire	To Order
	LR045519	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015417	SHIELD	Enquire	To Order
	LR031389	Shield - Fuel Tubes	Enquire	To Order
	LR031785	SHIELD - FUEL TUBES	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WKU500090	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP502390	TUBE - FUEL FEED	Enquire	To Order
	LR028028	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJP501042	TUBE - FUEL FEED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	WYP500100	SCREW	WYP500100 SCREW Hexagonal Head, M6 / From: AA000001	-	3	Enquire
HC1	WYC500081	CLIP	WYC500081 CLIP Double, For	-	1	Enquire
HC2	WYC100880	CLIP	WYC100880 CLIP With Fuel Fired Heater / Tube Support	-	2	Enquire
HC3	KYC500020	CLIP	KYC500020 CLIP With Fuel Fired Heater / For	-	-	Enquire
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6 / From: AA000001	-	2	Enquire
HN2	AWR6715	NUT - SPECIAL	AWR6715 NUT - SPECIAL M6 / From: AA000001	-	2	Enquire
HS1	FS106257	Screw	FS106257 Screw M6 X 25MM / From: AA000001	-	2	Enquire
HS2	FA106126	SCREW	FA106126 SCREW Hexagonal Head, M6 x 12MM / From: AA000001	-	1	Enquire
HS3	KYG500380	SCREW AND WASHER - HEX HEAD	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: AA000001	-	3	Enquire
9B303	LR015980	BRACKET	LR015980 BRACKET From: AA000001	-	1	Enquire
9E313	WKU500150	SHIELD - FUEL TUBES	WKU500150 SHIELD - FUEL TUBES From: AA000001	-	1	Enquire
9E489A	LR015417	SHIELD	LR015417 SHIELD Under Floor / From: AA000001 / To: BA575852	-	1	Enquire
9E489A	LR031389	Shield - Fuel Tubes	LR031389 Shield - Fuel Tubes Under Floor / From: BA575853 / To: BA581111	-	1	Enquire
9E489A	LR031785	SHIELD - FUEL TUBES	LR031785 SHIELD - FUEL TUBES Under Floor / From: BA581112 / To: BA999999	-	1	Enquire
9E489A	LR030555	SHIELD - FUEL TUBES	LR030555 SHIELD - FUEL TUBES 8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001 / To: DA663076	-	1	Enquire
9E489A	LR031785	SHIELD - FUEL TUBES	LR031785 SHIELD - FUEL TUBES 6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001 / To: DA663076	-	1	Enquire
9E489A	LR047202	SHIELD - FUEL TUBES	LR047202 SHIELD - FUEL TUBES 6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: DA663077	-	1	Enquire
9E489A	LR047211	SHIELD - FUEL TUBES	LR047211 SHIELD - FUEL TUBES 8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: DA663077	-	1	Enquire
9E489B	WKU500090	SHIELD	WKU500090 SHIELD From: AA000001	-	1	Enquire
9H334	LR015396	TUBE	LR015396 TUBE With Fresh Air Heater / Return, Supply, Under Floor / From: AA000001 / To: BA573685	-	1	Enquire
9H334	LR015395	TUBE	LR015395 TUBE With Fuel Fired Heater / Return, Supply, Under Floor / From: AA000001 / To: AA530094	-	1	Enquire
9H334	LR021659	TUBE	LR021659 TUBE With Fuel Fired Heater / Return, Supply, Under Floor / From: AA530095 / To: BA573685	-	1	Enquire
9H334	LR031388	TUBE - FUEL	LR031388 TUBE - FUEL With Fuel Fired Heater / Return, Supply, Under Floor / From: BA573686 / To: BA579653	-	1	Enquire
9H334	LR031390	TUBE - FUEL RETURN	LR031390 TUBE - FUEL RETURN With Fresh Air Heater / Return, Supply, Under Floor / From: BA573686 / To: BA581111	-	1	Enquire
9H334	LR031786	TUBE - FUEL	LR031786 TUBE - FUEL With Fuel Fired Heater / Return, Supply, Under Floor / From: BA579654 / To: BA999999	-	1	Enquire
9H334	LR031787	TUBE - FUEL	LR031787 TUBE - FUEL With Fresh Air Heater / Return, Supply, Under Floor / From: BA581112 / To: BA999999	-	1	Enquire
9H334	LR031787	TUBE - FUEL	LR031787 TUBE - FUEL 6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751	-	1	Enquire
9H334	LR031786	TUBE - FUEL	LR031786 TUBE - FUEL 6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751	-	1	Enquire
9H334	LR029586	TUBE - FUEL	LR029586 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751	-	1	Enquire
9H334	LR029585	TUBE - FUEL	LR029585 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA000001 / To: CA630751	-	1	Enquire
9H334	LR043391	TUBE - FUEL	LR043391 TUBE - FUEL 6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783	-	1	Enquire
9H334	LR043406	TUBE - FUEL	LR043406 TUBE - FUEL 6 Speed Auto Transmission ZF 6HP28, With Fresh Air Heater / Return, Supply, Under Floor / From: CA630752	-	1	Enquire
9H334	LR043407	TUBE - FUEL	LR043407 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783	-	1	Enquire
9H334	LR043409	TUBE - FUEL	LR043409 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: CA630752 / To: DA677783	-	1	Enquire
9H334	LR047204	TUBE - FUEL	LR047204 TUBE - FUEL 6 Speed Auto Transmission ZF 6HP28, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA677784	-	1	Enquire
9H334	LR047212	TUBE - FUEL	LR047212 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fuel Fired Heater / Return, Supply, Under Floor / From: DA677784	-	1	Enquire
9H334	LR047213	TUBE - FUEL	LR047213 TUBE - FUEL 8 Speed Auto Trans ZF 8HP70 4WD, With Fresh Air Heater / Return, Supply, Under Floor / From: DA677784	-	1	Enquire
9J296	LR015421	TUBE - FUEL RETURN	LR015421 TUBE - FUEL RETURN Under Floor / From: AA000001 / To: BA999999	-	1	Enquire
9J296	LR030556	TUBE - FUEL RETURN	LR030556 TUBE - FUEL RETURN 8 Speed Auto Trans ZF 8HP70 4WD / Under Floor / From: CA000001	-	1	Enquire
9J296	LR015421	TUBE - FUEL RETURN	LR015421 TUBE - FUEL RETURN 6 Speed Auto Transmission ZF 6HP28 / Under Floor / From: CA000001	-	1	Enquire
9J308	WKW500080	SENSOR - WATER DETECTOR	WKW500080 SENSOR - WATER DETECTOR Sensor - Water Detector / From: AA000001	-	1	Enquire
9J337	LR017446	TUBE - FUEL VAPOUR	LR017446 TUBE - FUEL VAPOUR Return, Supply, Under Floor / From: AA000001	-	1	Enquire
9J338	LR015416	TUBE	LR015416 TUBE Return, Supply, To Engine / From: AA000001	-	1	Enquire
9K335A	WJP502390	TUBE - FUEL FEED	WJP502390 TUBE - FUEL FEED With Fuel Fired Heater / Supply / From: AA000001 / To: AA530094	-	1	Enquire
9K335A	LR028028	PIPE - FUEL	LR028028 PIPE - FUEL With Fuel Fired Heater / Supply / From: AA530095	-	1	Enquire
9K335B	WJP501042	TUBE - FUEL FEED	WJP501042 TUBE - FUEL FEED With Fuel Fired Heater / Feed, To Fuel Fired Heater / From: AA000001	-	1	Enquire
9S324	LR010416	FILTER - FUEL	LR010416 FILTER - FUEL From: AA000001 / To: DA659732	-	1	Enquire
9S324	LR045519	FILTER - FUEL	LR045519 FILTER - FUEL From: DA659733	-	1	Enquire
8260	LR015422	HOSE - FUEL COOLER	LR015422 HOSE - FUEL COOLER For Fuel Cooler / From: AA000001	-	1	Enquire
9176	LR009705	ELEMENT - FUEL FILTER	LR009705 ELEMENT - FUEL FILTER Filter / From: AA000001	-	1	Enquire
10911	WKD500140	CONNECTOR - CABLE	WKD500140 CONNECTOR - CABLE From: AA000001	-	1	Enquire
