Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Exhaust Gas Recirculation (Solihull Plant Build) (3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW,...

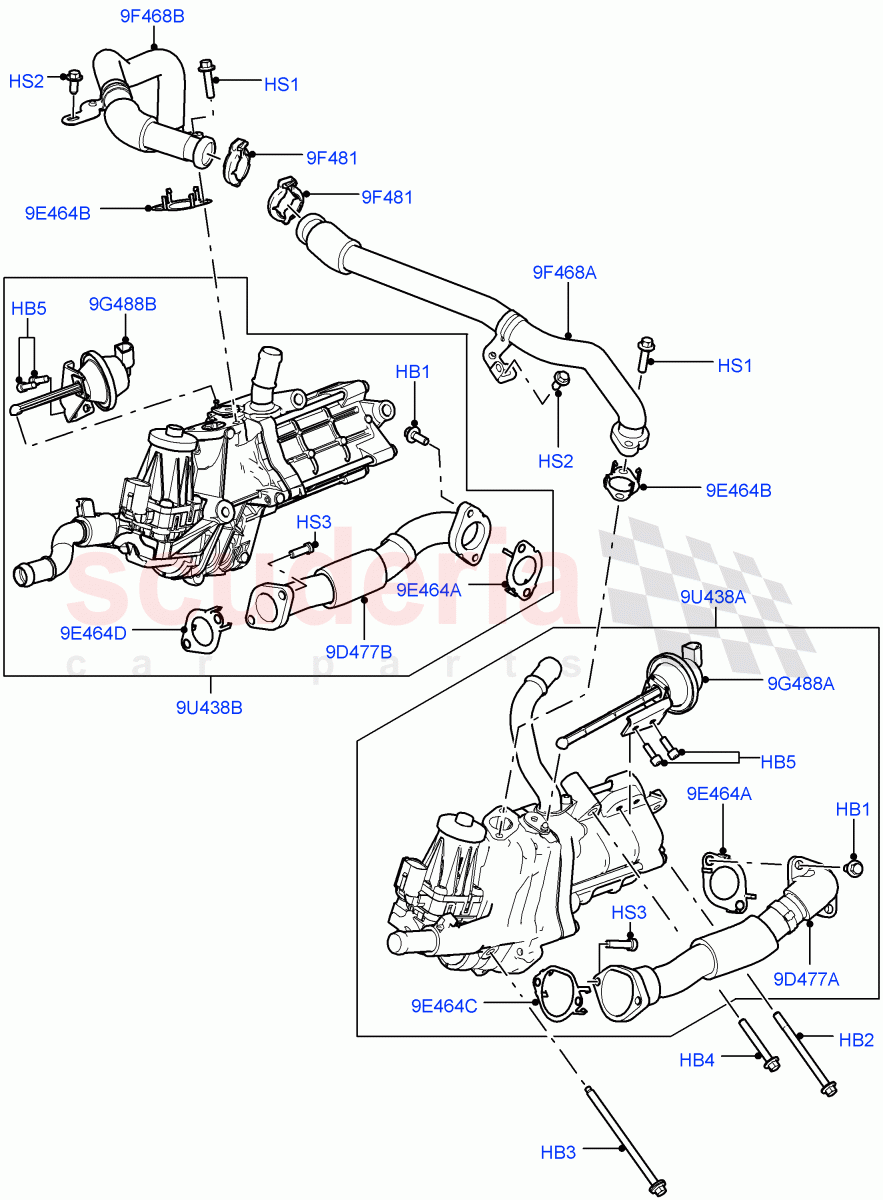

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009529	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012201	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020270	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311338	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020547	TUBE - EGR VALVE TO EXHAUST MANIFLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020548	TUBE - EGR VALVE TO EXHAUST MANIFLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075627	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR075627	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR075627	GASKET - EXHAUST MANIFOLD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR038333	GASKET - EGR OUTLET	Enquire	To Order
	LR038333	GASKET - EGR OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020545	GASKET - EGR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020546	GASKET - EGR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013587	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013589	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020551	ACTUATOR - EGR COOLER BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020552	ACTUATOR - EGR COOLER BYPASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018752	EGR UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018753	EGR UNIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1316028	BOLT	1316028 BOLT Exhaust Manifold, M6 X 16MM / From: AA000001	-	4	Enquire
HB2	LR009529	BOLT	LR009529 BOLT M6 x 80MM / From: AA000001	-	2	Enquire
HB3	1225745	BOLT AND WASHER - HEX.HEAD	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM / From: AA000001	-	2	Enquire
HB4	LR012201	BOLT	LR012201 BOLT Hexagonal Head, M6 x 45MM / From: AA000001	-	2	Enquire
HB5	LR020270	BOLT	LR020270 BOLT M5 X 10MM / From: AA000001	-	4	Enquire
HS1	4378449	SCREW	4378449 SCREW EGR Valve, M6 x 25MM / From: AA000001	-	4	Enquire
HS2	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: AA000001	-	2	Enquire
HS3	LR005786	SCREW	LR005786 SCREW M6 x 25MM / From: AA000001	-	4	Enquire
9D477A	LR020547	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR020547 TUBE - EGR VALVE TO EXHAUST MANIFLD LH / From: AA000001	-	1	Enquire
9D477B	LR020548	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR020548 TUBE - EGR VALVE TO EXHAUST MANIFLD RH / From: AA000001	-	1	Enquire
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / From: AA000001 / To: AA333332	-	2	Enquire
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / From: AA333333 / To: BA999999	-	2	Enquire
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / From: CA000001 / To: FA999999	-	2	Enquire
9E464A	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD Exhaust Manifold / From: GA000001	-	2	Enquire
9E464B	LR038333	GASKET - EGR OUTLET	LR038333 GASKET - EGR OUTLET EGR Outlet / From: AA000001 / To: CA620737	-	2	Enquire
9E464B	LR038333	GASKET - EGR OUTLET	LR038333 GASKET - EGR OUTLET EGR Outlet / From: CA620738	-	2	Enquire
9E464C	LR020545	GASKET - EGR INLET	LR020545 GASKET - EGR INLET LH, EGR Inlet / From: AA000001	-	1	Enquire
9E464D	LR020546	GASKET - EGR INLET	LR020546 GASKET - EGR INLET RH, EGR Inlet / From: AA000001	-	1	Enquire
9F468A	LR013587	TUBE - EXHAUST GAS RECIRCULATION	LR013587 TUBE - EXHAUST GAS RECIRCULATION LH / From: AA000001	-	1	Enquire
9F468B	LR013589	TUBE - EXHAUST GAS RECIRCULATION	LR013589 TUBE - EXHAUST GAS RECIRCULATION RH / From: AA000001	-	1	Enquire
9F481	1311338	CLAMP - TUBE	1311338 CLAMP - TUBE EGR Tube / From: AA000001	-	2	Enquire
9G488A	LR020551	ACTUATOR - EGR COOLER BYPASS	LR020551 ACTUATOR - EGR COOLER BYPASS LH, Vacuum EGR Cooler Bypass Actuator / From: AA000001	-	1	Enquire
9G488B	LR020552	ACTUATOR - EGR COOLER BYPASS	LR020552 ACTUATOR - EGR COOLER BYPASS RH, Vacuum EGR Cooler Bypass Actuator / From: AA000001	-	1	Enquire
9U438A	LR018752	EGR UNIT	LR018752 EGR UNIT LH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: AA000001	-	1	Enquire
9U438B	LR018753	EGR UNIT	LR018753 EGR UNIT RH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: AA000001	-	1	Enquire
