Inlet Manifold (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Inlet Manifold (3.0 V6 Diesel) ((V) FROMAA000001)

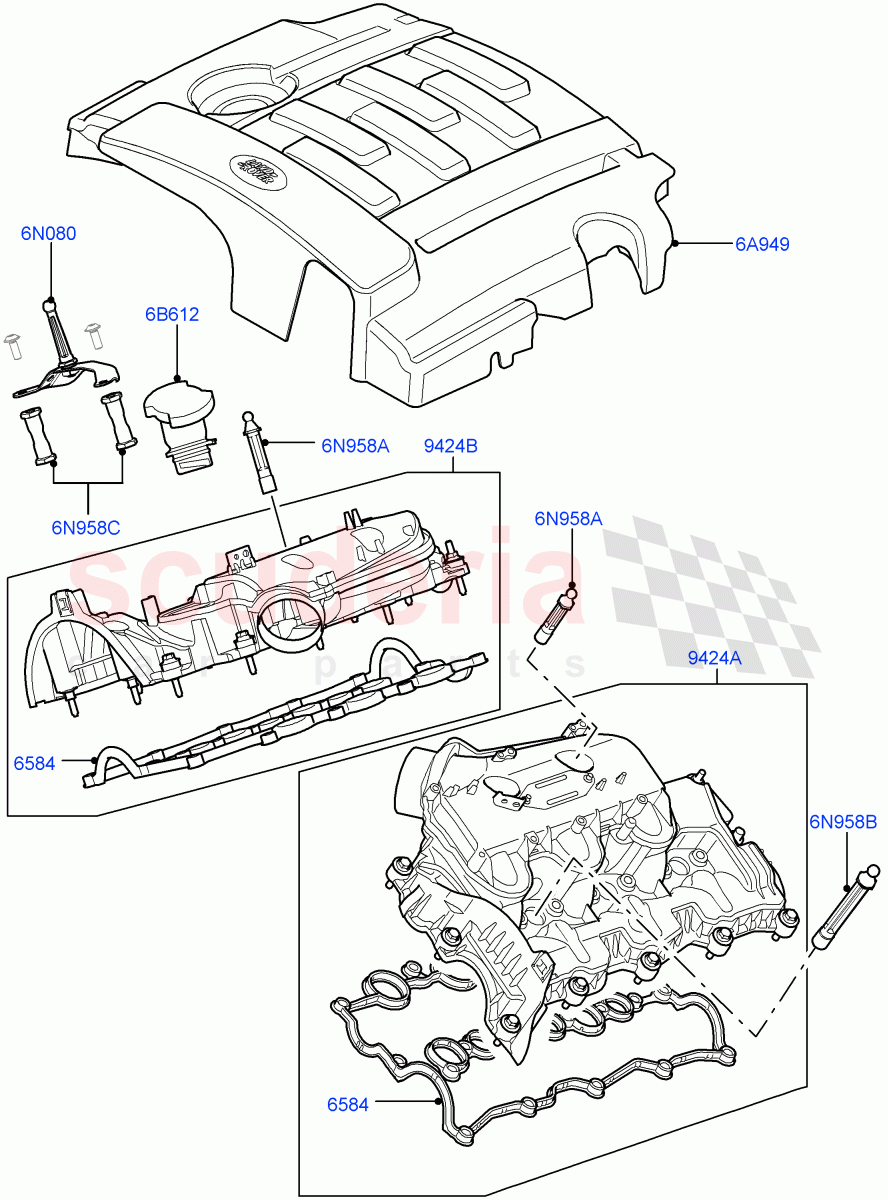

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR166341	GASKET - CAMSHAFT COVER	Enquire	To Order
	LR166341	GASKET - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013450	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order
	LR053016	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122398	BRACKET - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR179200	MANIFOLD - INLET	Enquire	To Order
	LR179200	MANIFOLD - INLET	Enquire	To Order
	LR057379	MANIFOLD - INLET	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR179201	MANIFOLD - INLET	Enquire	To Order
	LR179201	MANIFOLD - INLET	Enquire	To Order
	LR057380	MANIFOLD - INLET	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LBG500030	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016839	STUD - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4611570	STUD - ENGINE COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
6A949	LR013450	COVER	LR013450 COVER Engine / From: AA000001	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Land Rover Print / From: AA000001 / To: AA999999	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: BA000001 / To: CA645071	-	1	Enquire
6B612	LR053016	PIPE - OIL FEED	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: CA645072	-	1	Enquire
6N080	LR122398	BRACKET - ENGINE COVER	LR122398 BRACKET - ENGINE COVER Engine Cover / From: AA000001	-	1	Enquire
6N958A	LBG500030	STUD - ENGINE COVER	LBG500030 STUD - ENGINE COVER Short / From: AA000001	-	2	Enquire
6N958B	LR016839	STUD - BALL	LR016839 STUD - BALL From: AA000001	-	1	Enquire
6N958C	4611570	STUD - ENGINE COVER	4611570 STUD - ENGINE COVER From: AA000001	-	2	Enquire
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER From: AA000001 / To: BA568562	-	2	Enquire
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER From: BA568563	-	2	Enquire
9424A	LR179200	MANIFOLD - INLET	LR179200 MANIFOLD - INLET LH / From: AA000001 / To: BA568562	-	1	Enquire
9424A	LR179200	MANIFOLD - INLET	LR179200 MANIFOLD - INLET LH / From: BA568563 / To: DA999999	-	1	Enquire
9424A	LR057379	MANIFOLD - INLET	LR057379 MANIFOLD - INLET LH / From: EA000001 / To: FA999999	-	1	Enquire
9424A	LR073585	MANIFOLD - INLET	LR073585 MANIFOLD - INLET LH, This Pipes Should Be Fitted Despite The Blanked Holes / From: GA000001 / To: GA336597	-	1	Enquire
9424A	LR097158	MANIFOLD - INLET	LR097158 MANIFOLD - INLET LH / From: GA336598	-	1	Enquire
9424B	LR179201	MANIFOLD - INLET	LR179201 MANIFOLD - INLET RH / From: AA000001 / To: BA568562	-	1	Enquire
9424B	LR179201	MANIFOLD - INLET	LR179201 MANIFOLD - INLET RH / From: BA568563 / To: DA999999	-	1	Enquire
9424B	LR057380	MANIFOLD - INLET	LR057380 MANIFOLD - INLET RH / From: EA000001 / To: FA999999	-	1	Enquire
9424B	LR074623	MANIFOLD - INLET	LR074623 MANIFOLD - INLET RH, This Pipes Should Be Fitted Despite The Blanked Holes / From: GA000001 / To: GA336597	-	1	Enquire
9424B	LR097157	MANIFOLD - INLET	LR097157 MANIFOLD - INLET RH / From: GA336598	-	1	Enquire
