Find Your Part

View All

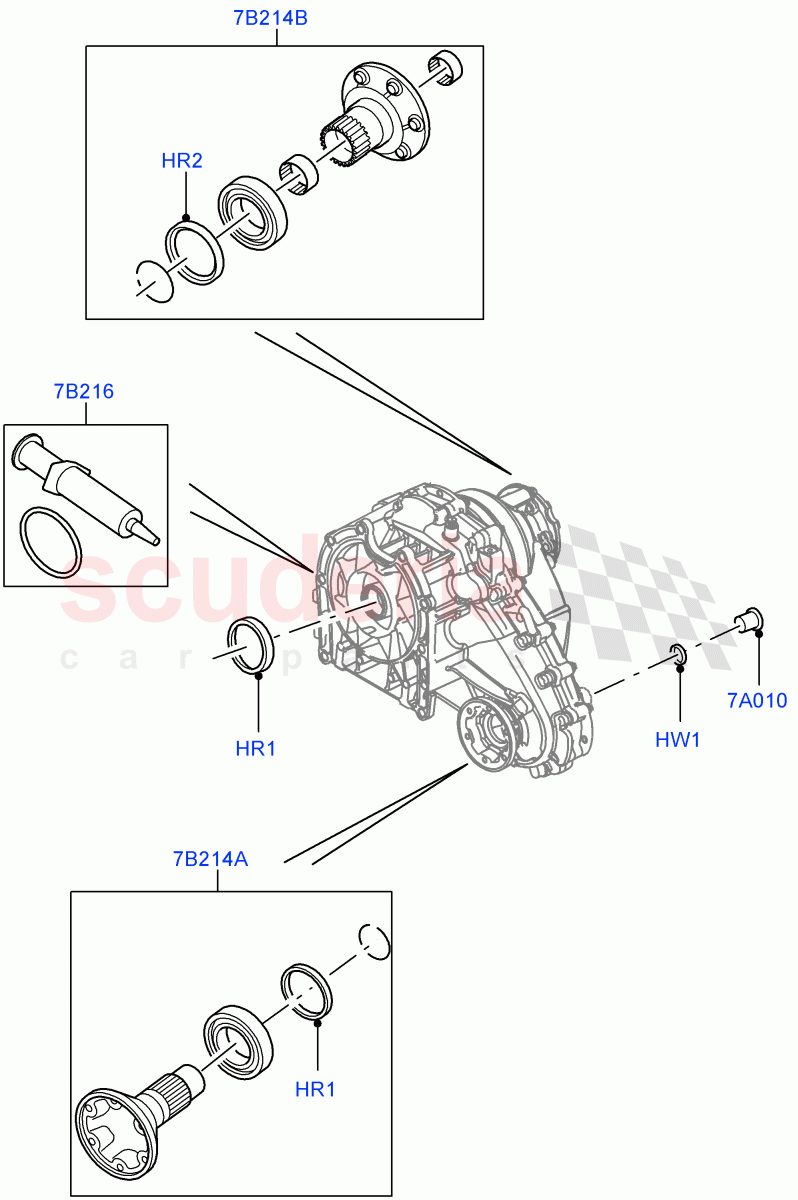

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	IZB500040	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IZB500050	RING - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048842	WASHER - DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048841	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	IYX500050	KIT - GREASE AND ORING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039528	KIT - TRANSFER BOX FLANGE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HR1	IZB500040	RING - SEALING	IZB500040 RING - SEALING Front Output, Seal / From: EA000001	-	1	Enquire
HR2	IZB500050	RING - SEALING	IZB500050 RING - SEALING Rear Output, Seal / From: EA000001	-	1	Enquire
HW1	LR048842	WASHER - DRAIN PLUG	LR048842 WASHER - DRAIN PLUG Filler Plug, M18, Plug - Oil Drain / From: EA000001	-	2	Enquire
7A010	LR048841	PLUG - OIL DRAIN	LR048841 PLUG - OIL DRAIN Filler Plug, M18, Plug - Oil Drain / From: EA000001	-	2	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: EA000001 / To: GA820873	-	1	Enquire
7B214A	LR086059	FLANGE - PROPSHAFT	LR086059 FLANGE - PROPSHAFT Front, Propshaft / From: GA820874	-	1	Enquire
7B214B	LR039528	KIT - TRANSFER BOX FLANGE	LR039528 KIT - TRANSFER BOX FLANGE Propshaft, Rear / From: EA000001	-	1	Enquire
7B216	IYX500050	KIT - GREASE AND ORING	IYX500050 KIT - GREASE AND ORING Input Shaft, Kit / From: EA000001	-	1	Enquire

Haven't found what you're looking for?

View Cart / Checkout

Transfer Drive Components (8 Speed Auto Trans Zf 8Hp70 4Wd, With 1 Speed Transfer Case) ((V)...

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]
