Glove Box ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Glove Box ((V) FROMAA000001)

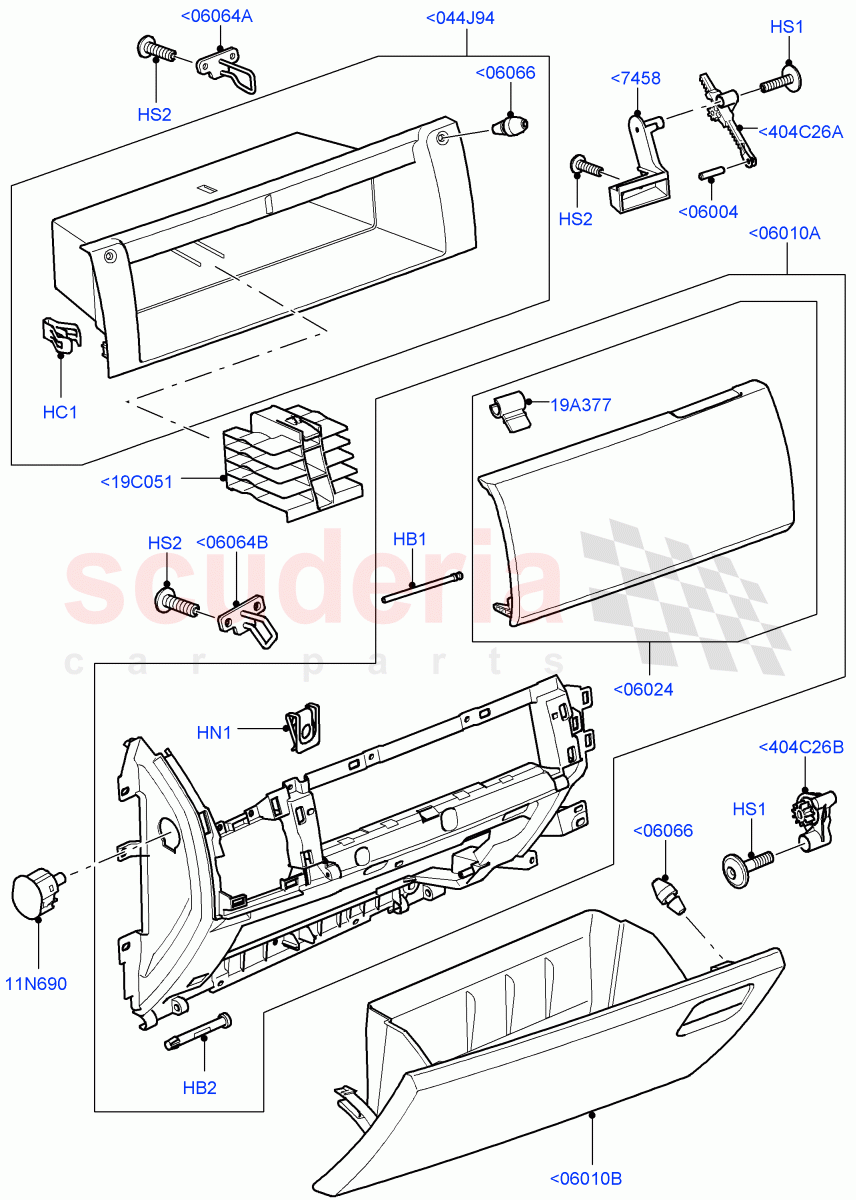

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FFY500012	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFY500020	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYC500030	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYH500190	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFF500040	COMPARTMENT - STOWAGE	Enquire	To Order
	FFF500050	COMPARTMENT - STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FYT500012	LATCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017932	DOOR - GLOVE COMPARTMENT	Enquire	To Order
	LR017933	DOOR - GLOVE COMPARTMENT	Enquire	To Order
	LR017934	DOOR - GLOVE COMPARTMENT	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020472	BUMP STOP - GLOVE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FBV500070PVJ	COVER - SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059885	HOLDER - PENCIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019112	HOUSING - GLOVE COMPARTMENT	Enquire	To Order
	LR050649	HOUSING - GLOVE COMPARTMENT	Enquire	To Order
	LR050650	HOUSING - GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013460	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR013461	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR013462	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013453	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR013454	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order
	LR013455	COMPARTMENT - GLOVE - CO-DRIVER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FND500050PMA	STRIKER - GLOVE COMPARTMENT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FND500012PMA	STRIKER - GLOVE COMPARTMENT DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFB500420PVJ	BOX - COMPACT DISC STORAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFZ500100	DAMPER - GLOVE BOX DOOR	Enquire	To Order
	FFZ500110	DAMPER - GLOVE BOX DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FFZ500080	DAMPER - GLOVE BOX DOOR	Enquire	To Order
	FFZ500090	DAMPER - GLOVE BOX DOOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<19C051	FFB500420PVJ	BOX - COMPACT DISC STORAGE	FFB500420PVJ BOX - COMPACT DISC STORAGE From: AA000001 / To: AA543641	-	1	Enquire
<044J94	LR019112	HOUSING - GLOVE COMPARTMENT	LR019112 HOUSING - GLOVE COMPARTMENT Stowage Box, Upper / From: AA000001 / To: DA999999	-	1	Enquire
<044J94	LR050649	HOUSING - GLOVE COMPARTMENT	LR050649 HOUSING - GLOVE COMPARTMENT LHD / Stowage Box, Upper / From: EA000001	-	1	Enquire
<044J94	LR050650	HOUSING - GLOVE COMPARTMENT	LR050650 HOUSING - GLOVE COMPARTMENT RHD / Stowage Box, Upper / From: EA000001	-	1	Enquire
<404C26A	FFZ500100	DAMPER - GLOVE BOX DOOR	FFZ500100 DAMPER - GLOVE BOX DOOR LHD / Upper / From: AA000001	-	1	Enquire
<404C26A	FFZ500110	DAMPER - GLOVE BOX DOOR	FFZ500110 DAMPER - GLOVE BOX DOOR RHD / Upper / From: AA000001	-	1	Enquire
<404C26B	FFZ500080	DAMPER - GLOVE BOX DOOR	FFZ500080 DAMPER - GLOVE BOX DOOR LHD / Lower / From: AA000001	-	1	Enquire
<404C26B	FFZ500090	DAMPER - GLOVE BOX DOOR	FFZ500090 DAMPER - GLOVE BOX DOOR RHD / Lower / From: AA000001	-	1	Enquire
<7458	FFF500040	COMPARTMENT - STOWAGE	FFF500040 COMPARTMENT - STOWAGE LHD / Mounting Bracket / From: AA000001	-	1	Enquire
<7458	FFF500050	COMPARTMENT - STOWAGE	FFF500050 COMPARTMENT - STOWAGE RHD / Mounting Bracket / From: AA000001	-	1	Enquire
<06004	FYT500012	LATCH	FYT500012 LATCH Damper, Push Pin / From: AA000001	-	1	Enquire
<06010A	LR013460	COMPARTMENT - GLOVE - CO-DRIVER	LR013460 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: AA000001 / To: AA520261	-	1	Enquire
<06010A	LR013461	COMPARTMENT - GLOVE - CO-DRIVER	LR013461 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: AA000001 / To: AA520261	-	1	Enquire
<06010A	LR013462	COMPARTMENT - GLOVE - CO-DRIVER	LR013462 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Upper / From: AA000001 / To: AA520261	-	1	Enquire
<06010A	LR013464	COMPARTMENT - GLOVE - CO-DRIVER	LR013464 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: AA000001 / To: AA520261	-	1	Enquire
<06010A	LR021344	COMPARTMENT - GLOVE - CO-DRIVER	LR021344 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: AA520262 / To: DA653415	-	1	Enquire
<06010A	LR021345	COMPARTMENT - GLOVE - CO-DRIVER	LR021345 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: AA520262 / To: DA653415	-	1	Enquire
<06010A	LR021346	COMPARTMENT - GLOVE - CO-DRIVER	LR021346 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Upper / From: AA520262 / To: DA653417	-	1	Enquire
<06010A	LR021347	COMPARTMENT - GLOVE - CO-DRIVER	LR021347 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Nutmeg/Almond, RHD / Upper / From: AA520262 / To: DA653417	-	1	Enquire
<06010A	LR040986	Compartment - Glove - Co-Driver	LR040986 Compartment - Glove - Co-Driver I/P Facia Contrast - Ebony Black, LHD / Upper / From: DA653416 / To: DA657382	-	1	Enquire
<06010A	LR040994	Compartment - Glove - Co-Driver	LR040994 Compartment - Glove - Co-Driver I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: DA653416 / To: DA657382	-	1	Enquire
<06010A	LR040997	Compartment - Glove - Co-Driver	LR040997 Compartment - Glove - Co-Driver I/P Facia Contrast - Ebony Black, RHD / Upper / From: DA653418 / To: DA657382	-	1	Enquire
<06010A	LR040998	Compartment - Glove - Co-Driver	LR040998 Compartment - Glove - Co-Driver I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: DA653418 / To: DA657382	-	1	Enquire
<06010A	LR044318	COMPARTMENT - GLOVE - CO-DRIVER	LR044318 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: DA657383 / To: EA700464	-	1	Enquire
<06010A	LR044319	COMPARTMENT - GLOVE - CO-DRIVER	LR044319 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: DA657383 / To: EA700464	-	1	Enquire
<06010A	LR044320	COMPARTMENT - GLOVE - CO-DRIVER	LR044320 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Upper / From: DA657383 / To: EA700464	-	1	Enquire
<06010A	LR044321	COMPARTMENT - GLOVE - CO-DRIVER	LR044321 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: DA657383 / To: EA700464	-	1	Enquire
<06010A	LR061577	COMPARTMENT - GLOVE - CO-DRIVER	LR061577 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Upper / From: EA700465	-	1	Enquire
<06010A	LR061578	COMPARTMENT - GLOVE - CO-DRIVER	LR061578 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Upper / From: EA700465	-	1	Enquire
<06010A	LR061580	COMPARTMENT - GLOVE - CO-DRIVER	LR061580 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Upper / From: EA700465	-	1	Enquire
<06010A	LR061581	COMPARTMENT - GLOVE - CO-DRIVER	LR061581 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, RHD / Upper / From: EA700465	-	1	Enquire
<06010B	LR013453	COMPARTMENT - GLOVE - CO-DRIVER	LR013453 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, LHD / Ebony Black, Lower / From: AA000001	-	1	Enquire
<06010B	LR013454	COMPARTMENT - GLOVE - CO-DRIVER	LR013454 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast-Arabica/Almond, LHD / Almond, Lower / From: AA000001	-	1	Enquire
<06010B	LR013455	COMPARTMENT - GLOVE - CO-DRIVER	LR013455 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Ebony Black, RHD / Ebony Black, Lower / From: AA000001	-	1	Enquire
<06010B	LR013459	COMPARTMENT - GLOVE - CO-DRIVER	LR013459 COMPARTMENT - GLOVE - CO-DRIVER I/P Facia Contrast - Nutmeg/Almond, RHD / Almond, Lower / From: AA000001	-	1	Enquire
<06024	LR017932	DOOR - GLOVE COMPARTMENT	LR017932 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, LHD / From: AA000001 / To: AA520261	-	1	Enquire
<06024	LR017933	DOOR - GLOVE COMPARTMENT	LR017933 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / From: AA000001 / To: AA520261	-	1	Enquire
<06024	LR017934	DOOR - GLOVE COMPARTMENT	LR017934 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / From: AA000001 / To: AA520261	-	1	Enquire
<06024	LR017935	DOOR - GLOVE COMPARTMENT	LR017935 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, RHD / From: AA000001 / To: AA520261	-	1	Enquire
<06024	LR021348	DOOR - GLOVE COMPARTMENT	LR021348 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, LHD / From: AA520262 / To: DA657382	-	1	Enquire
<06024	LR021349	DOOR - GLOVE COMPARTMENT	LR021349 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / From: AA520262 / To: DA657382	-	1	Enquire
<06024	LR021350	DOOR - GLOVE COMPARTMENT	LR021350 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / From: AA520262 / To: DA657382	-	1	Enquire
<06024	LR021351	DOOR - GLOVE COMPARTMENT	LR021351 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, RHD / From: AA520262 / To: DA657382	-	1	Enquire
<06024	LR044325	DOOR - GLOVE COMPARTMENT	LR044325 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, RHD / From: DA657383 / To: EA700464	-	1	Enquire
<06024	LR044324	DOOR - GLOVE COMPARTMENT	LR044324 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / From: DA657383 / To: EA700464	-	1	Enquire
<06024	LR044323	DOOR - GLOVE COMPARTMENT	LR044323 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / From: DA657383 / To: EA700464	-	1	Enquire
<06024	LR044322	DOOR - GLOVE COMPARTMENT	LR044322 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, LHD / From: DA657383 / To: EA700464	-	1	Enquire
<06024	LR061582	DOOR - GLOVE COMPARTMENT	LR061582 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, LHD / From: EA700465	-	1	Enquire
<06024	LR061583	DOOR - GLOVE COMPARTMENT	LR061583 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, LHD / From: EA700465	-	1	Enquire
<06024	LR061585	DOOR - GLOVE COMPARTMENT	LR061585 DOOR - GLOVE COMPARTMENT I/P Facia Contrast - Ebony Black, RHD / From: EA700465	-	1	Enquire
<06024	LR061586	DOOR - GLOVE COMPARTMENT	LR061586 DOOR - GLOVE COMPARTMENT I/P Facia Contrast-Arabica/Almond, RHD / From: EA700465	-	1	Enquire
<06064A	FND500050PMA	STRIKER - GLOVE COMPARTMENT DOOR	FND500050PMA STRIKER - GLOVE COMPARTMENT DOOR Upper / From: AA000001	-	1	Enquire
<06064B	FND500012PMA	STRIKER - GLOVE COMPARTMENT DOOR	FND500012PMA STRIKER - GLOVE COMPARTMENT DOOR Lower / From: AA000001	-	1	Enquire
<06066	LR020472	BUMP STOP - GLOVE BOX	LR020472 BUMP STOP - GLOVE BOX From: AA000001	-	1	Enquire
HB1	FFY500012	BOLT	FFY500012 BOLT Hinge, Pin, Upper / From: AA000001	-	2	Enquire
HB2	FFY500020	BOLT	FFY500020 BOLT Hinge, Lower, Pin / From: AA000001	-	2	Enquire
HC1	FYC500030	CLIP	FYC500030 CLIP Stowage Box / From: AA000001	-	4	Enquire
HN1	FYH500190	NUT	FYH500190 NUT "Spring", Type 'U' / From: AA000001	-	2	Enquire
HS1	FYP500380	SCREW	FYP500380 SCREW 4 X 16MM, Glovebox Damper To The Quarter Moulding / From: AA000001	-	2	Enquire
HS2	FYP500370	SCREW	FYP500370 SCREW 4 x 10MM / From: AA000001	-	1	Enquire
11N690	FBV500070PVJ	COVER - SWITCH	FBV500070PVJ COVER - SWITCH Blank, Passenger Airbag Deactivation Switch / From: AA000001	-	1	Enquire
19A377	LR059885	HOLDER - PENCIL	LR059885 HOLDER - PENCIL From: AA000001	-	1	Enquire
