Transmission External Components (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Transmission External Components (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0L...

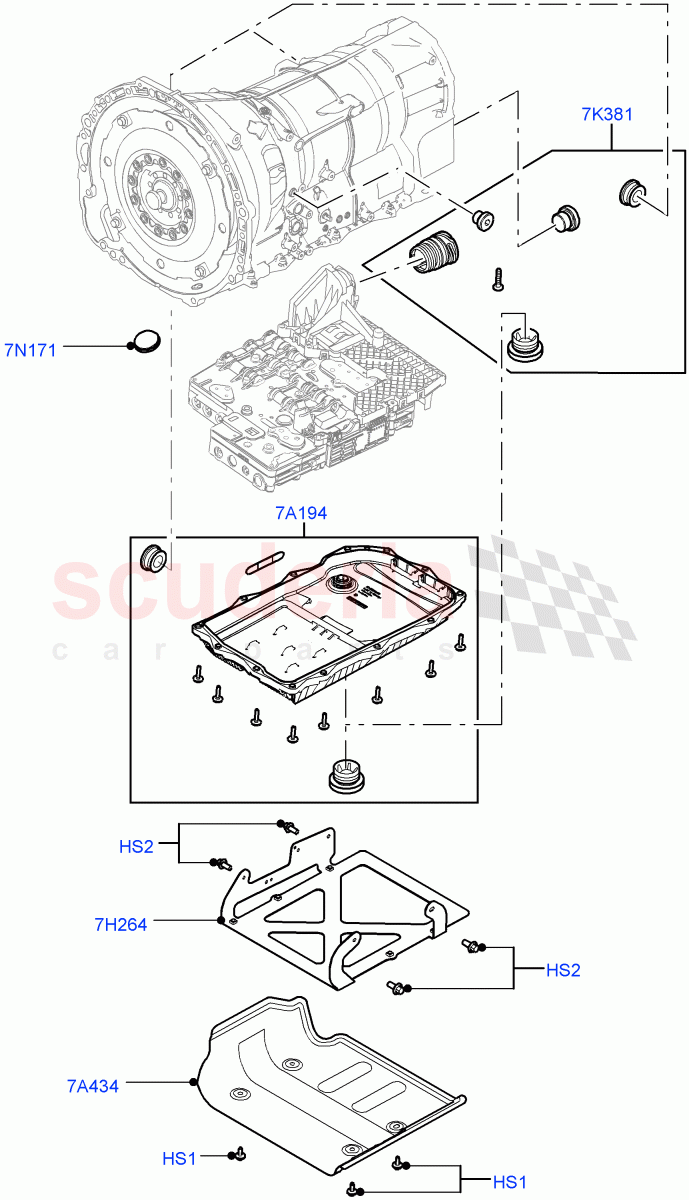

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR042472	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYP500260	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023294	PAN - TRANSMISSION OIL	Enquire	To Order
	LR065238	PAN - TRANSMISSION OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050755	SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053742	BRACKET - TRANSMISSION HEAT SHIELD	Enquire	To Order
	LR057208	BRACKET - TRANSMISSION HEAT SHIELD	Enquire	To Order
	LR073535	BRACKET - TRANSMISSION HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023292	PLUG - TRANSMISSION	Enquire	To Order
	LR065237	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008866	GROMMET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR042472	SCREW	LR042472 SCREW Hexagonal Head, M6 X 16MM / From: EA000001	-	4	Enquire
HS2	KYP500260	SCREW	KYP500260 SCREW M6 X 14MM / From: EA000001	-	4	Enquire
7A194	LR023294	PAN - TRANSMISSION OIL	LR023294 PAN - TRANSMISSION OIL Includes Oil Filter / From: EA000001 / To: EA999999	-	1	Enquire
7A194	LR065238	PAN - TRANSMISSION OIL	LR065238 PAN - TRANSMISSION OIL Includes Oil Filter, Includes Sealing Gasket / From: FA000001	-	1	Enquire
7A434	LR050755	SHIELD - TRANSMISSION	LR050755 SHIELD - TRANSMISSION Transmission / From: EA000001	-	1	Enquire
7H264	LR053742	BRACKET - TRANSMISSION HEAT SHIELD	LR053742 BRACKET - TRANSMISSION HEAT SHIELD Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA000001 / To: EA701031	-	1	Enquire
7H264	LR057208	BRACKET - TRANSMISSION HEAT SHIELD	LR057208 BRACKET - TRANSMISSION HEAT SHIELD Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: EA701032 / To: FA765645	-	1	Enquire
7H264	LR073535	BRACKET - TRANSMISSION HEAT SHIELD	LR073535 BRACKET - TRANSMISSION HEAT SHIELD Heat Shield, Retailers Are Advised To Read LTB01091v4 Prior To Ordering, Please Note LTB01091v4 Is Not Applicable To L319 / From: FA765646	-	1	Enquire
7K381	LR023292	PLUG - TRANSMISSION	LR023292 PLUG - TRANSMISSION Transmission / From: EA000001 / To: EA999999	-	1	Enquire
7K381	LR065237	PLUG	LR065237 PLUG Transmission / From: FA000001	-	1	Enquire
7N171	LR008866	GROMMET	LR008866 GROMMET Converter Drain Access / From: EA000001	-	1	Enquire
