Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Transmission Cooling Systems (5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR013729 BOLT $8.32 To Order
Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
EYP500200 BOLT $0.55 To Order
Photo Part No Description Price (each) Stock
LR013730 NUT $1.00 To Order
Photo Part No Description Price (each) Stock
LR031887 PLATE - TRANSMISSION OIL COOLER $8.56 To Order
Photo Part No Description Price (each) Stock
ESR2806 CLAMP $7.05 To Order
LR031886 CLAMP - TUBE $8.56 To Order
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.15 IN STOCK
Photo Part No Description Price (each) Stock
UBU500092 BRACKET $52.11 To Order
Photo Part No Description Price (each) Stock
LR013722 OIL COOLER $352.04 To Order
Photo Part No Description Price (each) Stock
LR013732 TUBE - OIL COOLER $252.98 To Order
LR020013 COOLER $208.81 To Order
LR037948 TUBE - OIL COOLER $223.36 To Order
Photo Part No Description Price (each) Stock
LR013811 TUBE $57.58 To Order
LR039896 TUBE - OIL COOLER $44.11 To Order
Photo Part No Description Price (each) Stock
LR013812 TUBE - OIL COOLER $55.54 To Order
LR039897 TUBE - OIL COOLER $47.89 To Order
View All

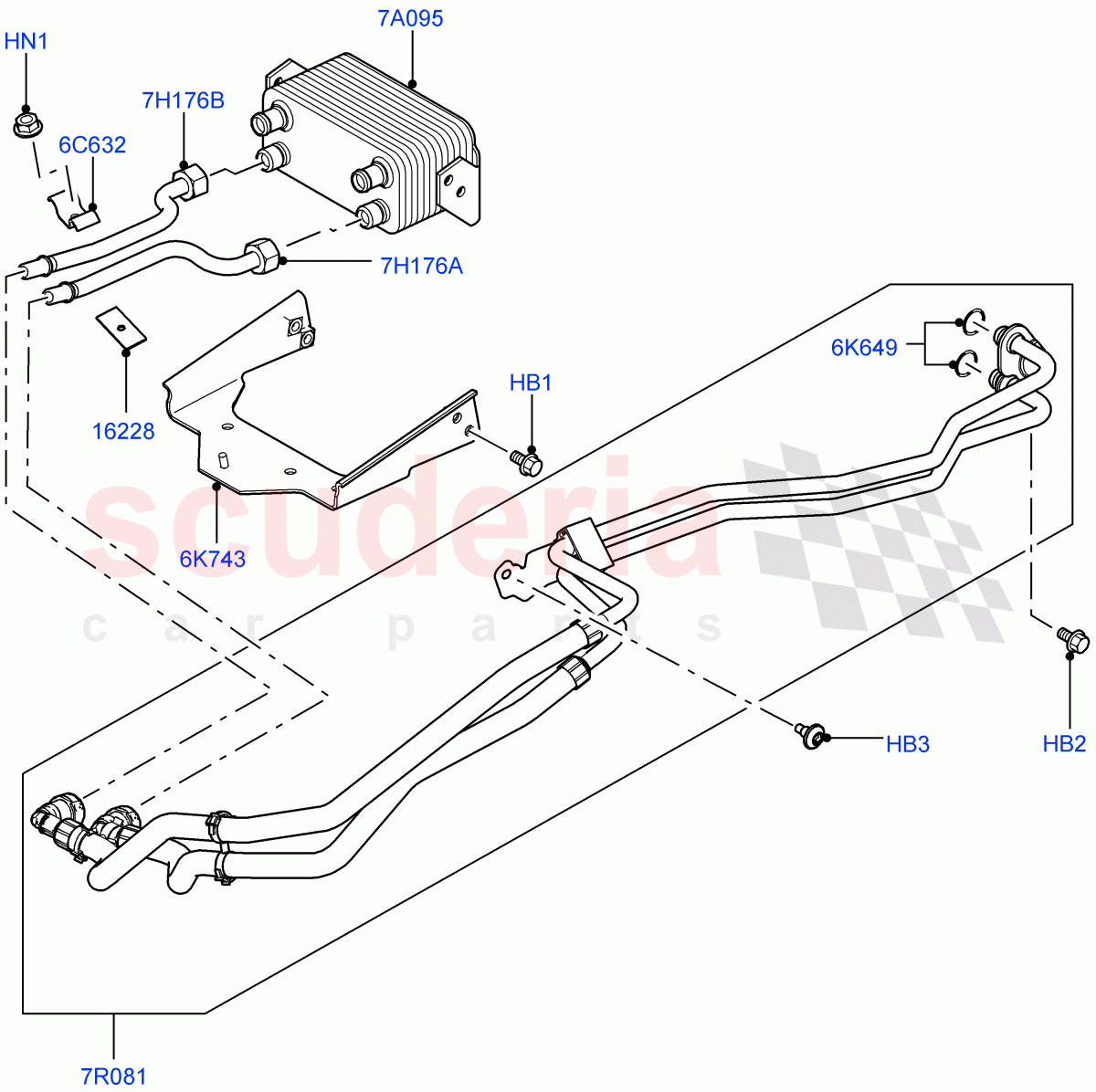

Transmission Cooling Systems (5.0L OHC SGDI SC V8 Petrol - AJ133, 6 Speed Auto Transmission ZF 6HP28, 5.0L OHC SGDI NA V8 Petrol - AJ133) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR013729
BOLT
5.0L OHC SGDI NA V8 Petrol - AJ133 / M8 X 16MM / From: AA000001 		$8.32 4
HB2 FS108166
BOLT
5.0L OHC SGDI NA V8 Petrol - AJ133 / Hexagonal Head, M8 X 16MM / From: AA000001
IN STOCK 		$0.63 1
HB3 EYP500200
BOLT
5.0L OHC SGDI NA V8 Petrol - AJ133 / Hexagonal Head, M6 x 12MM / From: AA000001 		$0.55 1
HN1 LR013730
NUT
5.0L OHC SGDI NA V8 Petrol - AJ133 / M6 / From: AA000001 		$1.00 1
6C632 ESR2806
CLAMP
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001 / To: BA558926 		$7.05 1
6C632 LR031886
CLAMP - TUBE
5.0L OHC SGDI NA V8 Petrol - AJ133 / Aluminium / From: BA558927 		$8.56 1
6K649 LR049457
O-RING
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001
IN STOCK 		$3.15 2
6K743 UBU500092
BRACKET
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001 		$52.11 1
7A095 LR013722
OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / From: AA000001 		$352.04 1
7H176A LR013811
TUBE
5.0L OHC SGDI NA V8 Petrol - AJ133 / Inlet / From: AA000001 / To: CA614499 		$57.58 1
7H176A LR039896
TUBE - OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Inlet / From: CA614500 		$44.11 1
7H176B LR013812
TUBE - OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Outlet / From: AA000001 / To: CA614499 		$55.54 1
7H176B LR039897
TUBE - OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Outlet / From: CA614500 		$47.89 1
7R081 LR013732
TUBE - OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Feed, Return, Transmission Cooler Line / From: AA000001 / To: AA517400 		$252.98 1
7R081 LR020013
COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Feed, Return, Transmission Cooler Line / From: AA517401 / To: CA607456 		$208.81 1
7R081 LR037948
TUBE - OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Feed, Return, Transmission Cooler Line / From: CA607457 		$223.36 1
16228 LR031887
PLATE - TRANSMISSION OIL COOLER
5.0L OHC SGDI NA V8 Petrol - AJ133 / Use With Aluminium Clamp / From: BA558927 		$8.56 1
