Name: Heat Shields - Exhaust System (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)
Rating: 4.3 (1 reviews)

Heat Shields - Exhaust System (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Heat Shields - Exhaust System (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

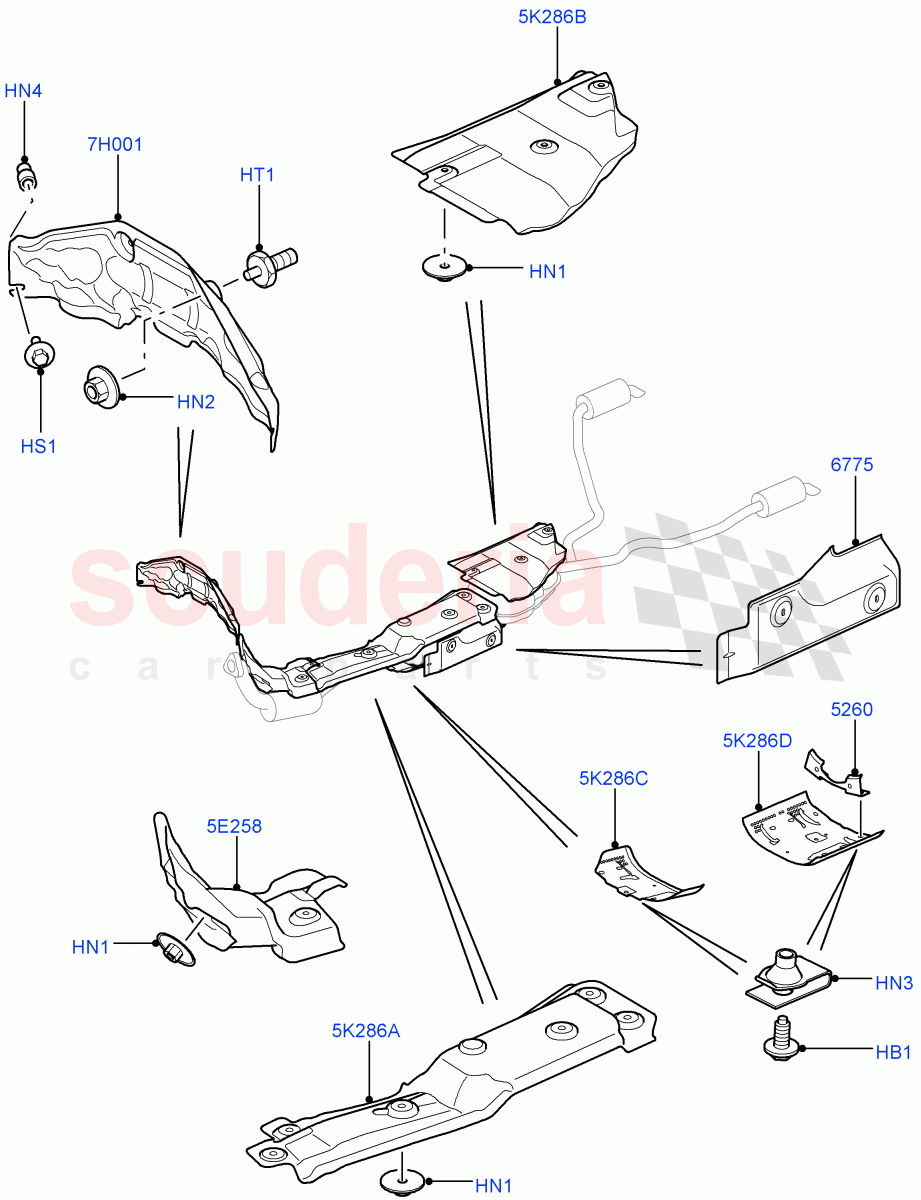

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ESR1560	NUT - FLANGED	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500690	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500030	NUT - FLANGED	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYR500021	STUD	$5.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007466	BRACKET - FIRE SHIELD MOUNTING	$16.17	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500690	SHIELD	$16.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013545	SHIELD - EXHAUST PIPE	$91.10	To Order
	LR069248	SHIELD - EXHAUST PIPE	$61.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013809	HEAT SHIELD	$124.26	To Order

Photo	Part No	Description	Price (each)	Stock
	WEB500750	HEAT SHIELD	$160.37	To Order
	LR020125	HEAT SHIELD - EXHAUST	$160.37	To Order
	LR043377	HEAT SHIELD - EXHAUST	$158.51	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	WEB500144	HEAT SHIELD	$88.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007463	HEAT SHIELD	$19.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007464	HEAT SHIELD	$19.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Stage IV + DPF Emissions / Hexagonal Head, M6 x 12MM / From: AA000001 IN STOCK	$0.50	7
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 / From: AA000001 IN STOCK	$2.57	13
HN2	ESR1560	NUT - FLANGED	ESR1560 NUT - FLANGED M6 / From: AA000001	$2.65	2
HN3	RYH500690	Nut	RYH500690 Nut Stage IV + CDPF Emissions / U-Nut M6 X 0.8 - 4.0 / From: AA000001	-	7	Enquire
HN4	VYH500030	NUT - FLANGED	VYH500030 NUT - FLANGED M6 / From: AA000001	$0.63	2
HS1	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM, Striker, Upper Tailgate / From: AA000001 IN STOCK	$0.35	2
HT1	WYR500021	STUD	WYR500021 STUD M6 / From: AA000001	$5.20	2
5E258	LR013545	SHIELD - EXHAUST PIPE	LR013545 SHIELD - EXHAUST PIPE LH, Front, Lower / From: AA000001 / To: FA999999	$91.10	1
5E258	LR069248	SHIELD - EXHAUST PIPE	LR069248 SHIELD - EXHAUST PIPE LH, Front, Lower / From: GA000001	$61.87	1
5K286A	WEB500750	HEAT SHIELD	WEB500750 HEAT SHIELD Intermediate / From: AA000001 / To: AA522702	$160.37	1
5K286A	LR020125	HEAT SHIELD - EXHAUST	LR020125 HEAT SHIELD - EXHAUST Intermediate / From: AA522703 / To: CA620737	$160.37	1
5K286A	LR043377	HEAT SHIELD - EXHAUST	LR043377 HEAT SHIELD - EXHAUST Intermediate / From: CA620738 / To: CA999999	$158.51	1
5K286A	LR076832	HEAT SHIELD - EXHAUST IN STOCK	LR076832 HEAT SHIELD - EXHAUST Intermediate / From: DA000001 / To: EA709728 IN STOCK	$94.64	1
5K286A	LR060755	HEAT SHIELD - EXHAUST	LR060755 HEAT SHIELD - EXHAUST Intermediate / From: EA709729 / To: FA765645	$87.20	1
5K286A	LR076832	HEAT SHIELD - EXHAUST IN STOCK	LR076832 HEAT SHIELD - EXHAUST Intermediate / From: FA765646 / To: FA999999 IN STOCK	$94.64	1
5K286A	LR069247	SHIELD - EXHAUST MANIFOLD HEAT	LR069247 SHIELD - EXHAUST MANIFOLD HEAT Intermediate / From: GA000001	$91.66	1
5K286B	WEB500144	HEAT SHIELD	WEB500144 HEAT SHIELD Centre / From: AA000001	$88.14	1
5K286C	LR007463	HEAT SHIELD	LR007463 HEAT SHIELD Stage IV + DPF Emissions / Converter Shield, Front / From: AA000001	$19.50	1
5K286D	LR007464	HEAT SHIELD	LR007464 HEAT SHIELD Stage IV + DPF Emissions / Converter Shield, Rear / From: AA000001	$19.50	1
7H001	LR013809	HEAT SHIELD	LR013809 HEAT SHIELD Front, Upper / From: AA000001	$124.26	1
5260	LR007466	BRACKET - FIRE SHIELD MOUNTING	LR007466 BRACKET - FIRE SHIELD MOUNTING Stage IV + DPF Emissions / From: AA000001	$16.17	1
6775	WEB500690	SHIELD	WEB500690 SHIELD Stage IV + DPF Emissions / LH, Intermediate / From: AA000001	$16.67	1
