Name: Fuel Tank & Related Parts (This Section Refers To TSB LTB00280, Vehicles Fitted With 10MY Fuel Tank, With 2 Vent Pipes) (Lion Diesel 2.7 V6 (140KW))
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (This Section Refers To TSB LTB00280, Vehicles Fitted With 10MY Fuel Tank, With 2 Vent Pipes) (Lion Diesel 2.7 V6 (140KW)) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Fuel Tank & Related Parts (This Section Refers To TSB LTB00280, Vehicles Fitted With 10MY Fuel...

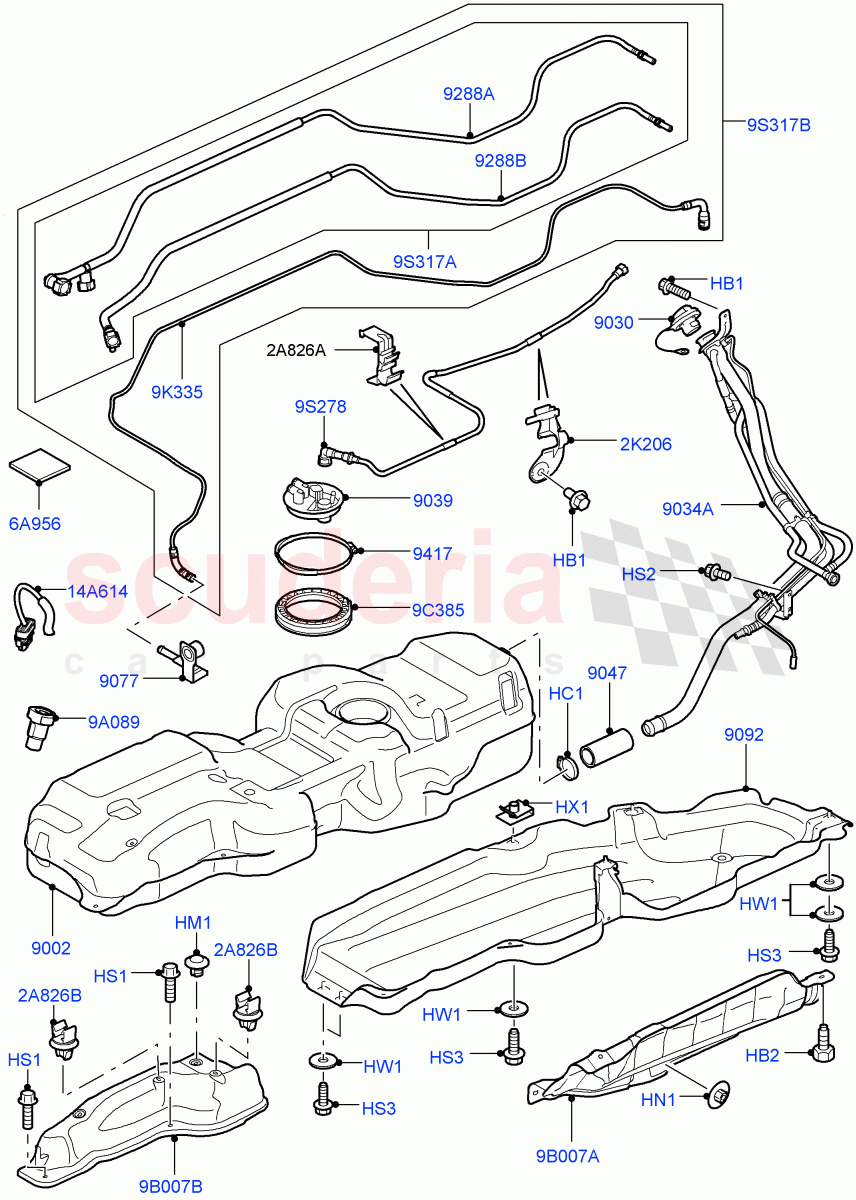

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SN106127L	BOLT	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP500100	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	CN100509	CLIP	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	WYQ000010	RIVET - PLASTIC	$5.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYH500050	NUT - LOCKING	$2.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500270	SCREW	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110006	WASHER	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500100	NUT - SPRING	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013745	TANK - FUEL	$1,089.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015394	CAP - FUEL TANK FILLER	$14.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013751	COVER - DUST	$85.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010620	HOSE - FILLER PIPE	$17.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019275	PLUG	$8.17	To Order

Photo	Part No	Description	Price (each)	Stock
	WFN000014	FUEL TANK	$294.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	$10.05	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	WFU500020	BRACKET	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	$22.37	To Order

Photo	Part No	Description	Price (each)	Stock
	WMJ500181	PIPE - FUEL FILLER	$349.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015385	HOSE	$491.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015384	HOSE	$150.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021822	CAP - FILLER	$38.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013771	RING - RETAINING	$22.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013917	TUBE - FUEL FEED	$51.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013755	TUBE - FUEL	$83.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020971	JUMPER WIRING	$96.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014156	CLIP - PARKING BRAKE CABLE	$1.84	To Order

Photo	Part No	Description	Price (each)	Stock
	SPV500020	CLIP	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500120	SHIELD	$59.62	To Order

Photo	Part No	Description	Price (each)	Stock
	WFZ500034	SHIELD	$31.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021133	TUBE - FUEL	$487.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021134	TUBE - FUEL	$481.87	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	SN106127L	BOLT	SN106127L BOLT M6	$0.62	1
HB2	WYP500100	SCREW	WYP500100 SCREW Hexagonal Head, M6	$0.76	3
HC1	CN100509	CLIP	CN100509 CLIP Hose Clamp	$1.54	1
HM1	WYQ000010	RIVET - PLASTIC IN STOCK	WYQ000010 RIVET - PLASTIC Plastic, Rivet Type IN STOCK	$5.62	1
HN1	WYH500050	NUT - LOCKING IN STOCK	WYH500050 NUT - LOCKING M5 IN STOCK	$2.57	2
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$0.97	1
HS2	FS108126	SCREW IN STOCK	FS108126 SCREW M8 x 12MM IN STOCK	$1.38	1
HS3	RYG500270	SCREW	RYG500270 SCREW Hexagonal Head, M10 X 25MM	$2.70	3
HW1	WJ110006	WASHER	WJ110006 WASHER 10 MM	$1.35	7
HX1	KYH500100	NUT - SPRING	KYH500100 NUT - SPRING Fuel Tank Attaching, M10, Nut "U" Spring	$1.58	2
2A826A	LR014156	CLIP - PARKING BRAKE CABLE	LR014156 CLIP - PARKING BRAKE CABLE	$1.84	3
2A826B	SPV500020	CLIP	SPV500020 CLIP For	$1.04	2
2K206	WFU500020	BRACKET	WFU500020 BRACKET	$3.16	1
6A956	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING	$22.37	1
9A089	LR021822	CAP - FILLER	LR021822 CAP - FILLER Less Fuel Fired Heater	$38.44	1
9B007A	WFZ500120	SHIELD	WFZ500120 SHIELD	$59.62	1
9B007B	WFZ500034	SHIELD	WFZ500034 SHIELD	$31.23	1
9C385	LR013771	RING - RETAINING	LR013771 RING - RETAINING	$22.43	1
9K335	LR013917	TUBE - FUEL FEED	LR013917 TUBE - FUEL FEED Fuel Tank To Fuel Burning Heater	$51.81	1
9S278	LR013755	TUBE - FUEL	LR013755 TUBE - FUEL Breather Pipe, Vapour Line	$83.54	1
9S317A	LR021133	TUBE - FUEL	LR021133 TUBE - FUEL Less Fuel Fired Heater / To: 6A999999	$487.19	1
9S317B	LR021134	TUBE - FUEL	LR021134 TUBE - FUEL With Fuel Fired Heater / To: 6A999999	$481.87	1
14A614	LR020971	JUMPER WIRING	LR020971 JUMPER WIRING	$96.05	1
9002	LR013745	TANK - FUEL	LR013745 TANK - FUEL	$1,089.24	1
9030	LR015394	CAP - FUEL TANK FILLER	LR015394 CAP - FUEL TANK FILLER	$14.22	1
9034A	WMJ500181	PIPE - FUEL FILLER	WMJ500181 PIPE - FUEL FILLER	$349.69	1
9039	LR013751	COVER - DUST	LR013751 COVER - DUST	$85.78	1
9047	LR010620	HOSE - FILLER PIPE	LR010620 HOSE - FILLER PIPE	$17.45	1
9077	LR019275	PLUG	LR019275 PLUG With Fresh Air Heater	$8.17	1
9092	WFN000014	FUEL TANK	WFN000014 FUEL TANK	$294.04	1
9288A	LR015385	HOSE	LR015385 HOSE Fuel Filter Outlet To Fuel Tank, Return	$491.10	1
9288B	LR015384	HOSE	LR015384 HOSE Feed	$150.59	1
9417	LR117476	GASKET ARRIVING SOON	LR117476 GASKET O-Ring ARRIVING SOON	$10.05	1
