Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4469260 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
4364422 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1331241 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR018327 HOSE - VACUUM Enquire To Order
LR041269 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR013835 PUMP - VACUUM Enquire To Order
LR101753 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR013619 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
1334813 CAP Enquire To Order
Photo Part No Description Price (each) Stock
LR017456 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
1331363 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR015537 HOSE - VACUUM Enquire To Order
LR020557 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR015538 HOSE - VACUUM Enquire To Order
View All

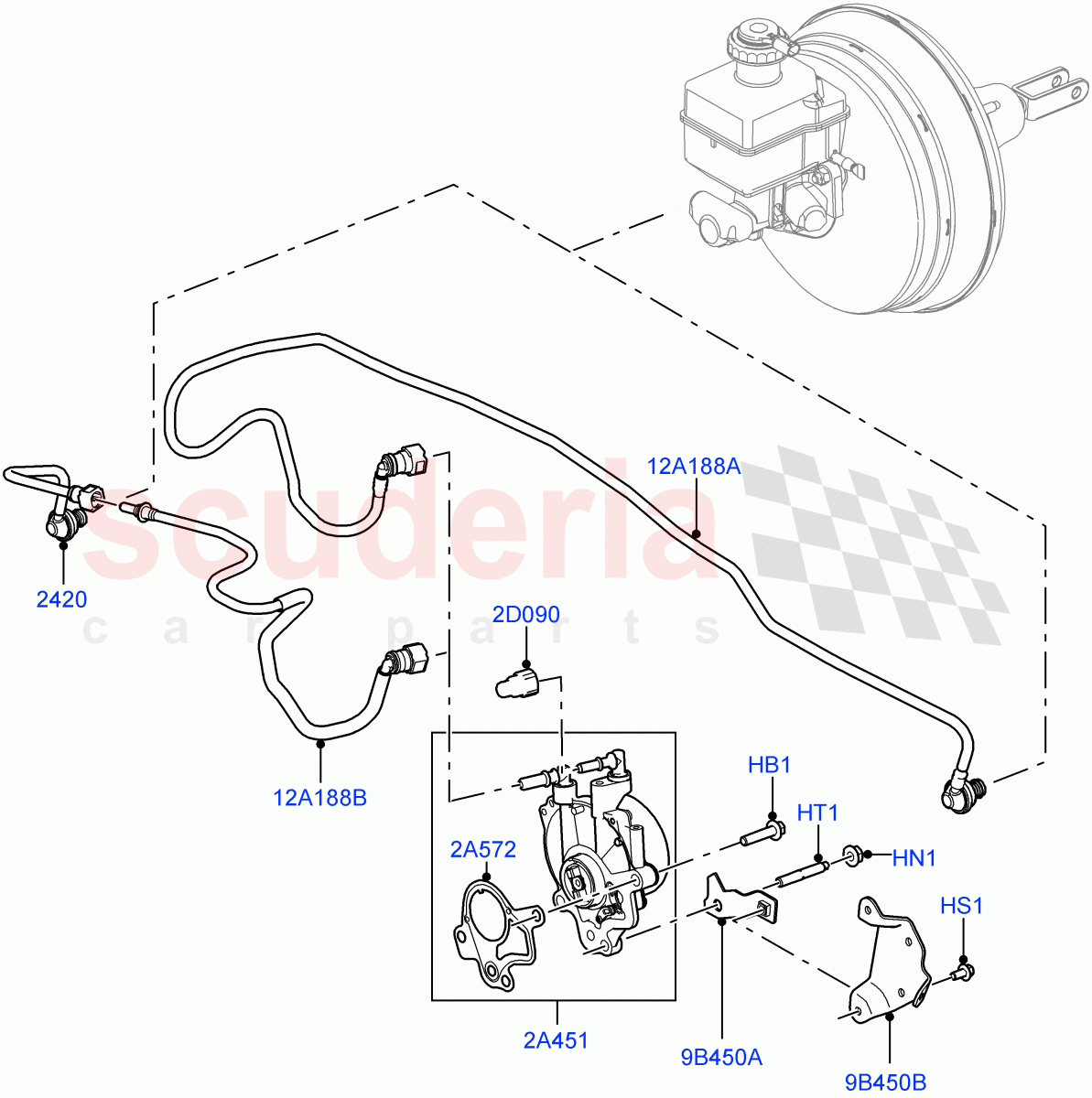

Vacuum Control And Air Injection (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 4469260
BOLT
M8 X 35MM / From: AA000001 		- 2 Enquire
HN1 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: AA000001 		- 1 Enquire
HS1 4364422
SCREW
M6 X 16MM / From: AA000001 		- 2 Enquire
HT1 1331241
STUD
M8 X 15 + M8 X 35 / From: AA000001 		- 1 Enquire
2A451 LR013835
PUMP - VACUUM
From: AA000001 / To: CA615819 		- 1 Enquire
2A451 LR101753
PUMP - VACUUM
From: CA615820 		- 1 Enquire
2A572 LR013619
GASKET - VACUUM PUMP
From: AA000001 		- 1 Enquire
2D090 1334813
CAP
From: AA000001 		- 1 Enquire
9B450A LR017456
BRACKET
To Vacuum / From: AA000001 		- 1 Enquire
9B450B 1331363
BRACKET
From: AA000001 		- 1 Enquire
12A188A LR015537
HOSE - VACUUM
LHD / Pump To Booster / From: AA000001 / To: AA536980 		- 1 Enquire
12A188A LR020557
HOSE - VACUUM
LHD / Pump To Booster / From: AA536981 		- 1 Enquire
12A188B LR015538
HOSE - VACUUM
RHD / Vacuum Pump Hose / From: AA000001 		- 1 Enquire
2420 LR018327
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: AA000001 / To: CA627987 		- 1 Enquire
2420 LR041269
HOSE - VACUUM
RHD / Brake Vacuum Booster / From: CA627988 		- 1 Enquire
