Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
PYC101880 Clip Enquire To Order
Photo Part No Description Price (each) Stock
FS106127L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
JHB501461 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR020009 THERMOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
PCH501072 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PIH500130 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PIH500091 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
PEU500140 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
PCH501351 HOSE - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
PIH500101 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
SYC100540L CLIP Enquire To Order
Photo Part No Description Price (each) Stock
WAP500380 TUBE - EGR VALVE TO EXHAUST MANIFLD Enquire To Order
Photo Part No Description Price (each) Stock
PEI500020 T-CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR006638 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
4346360 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
DYC101410 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
PYC102010 CLAMP Enquire To Order
View All

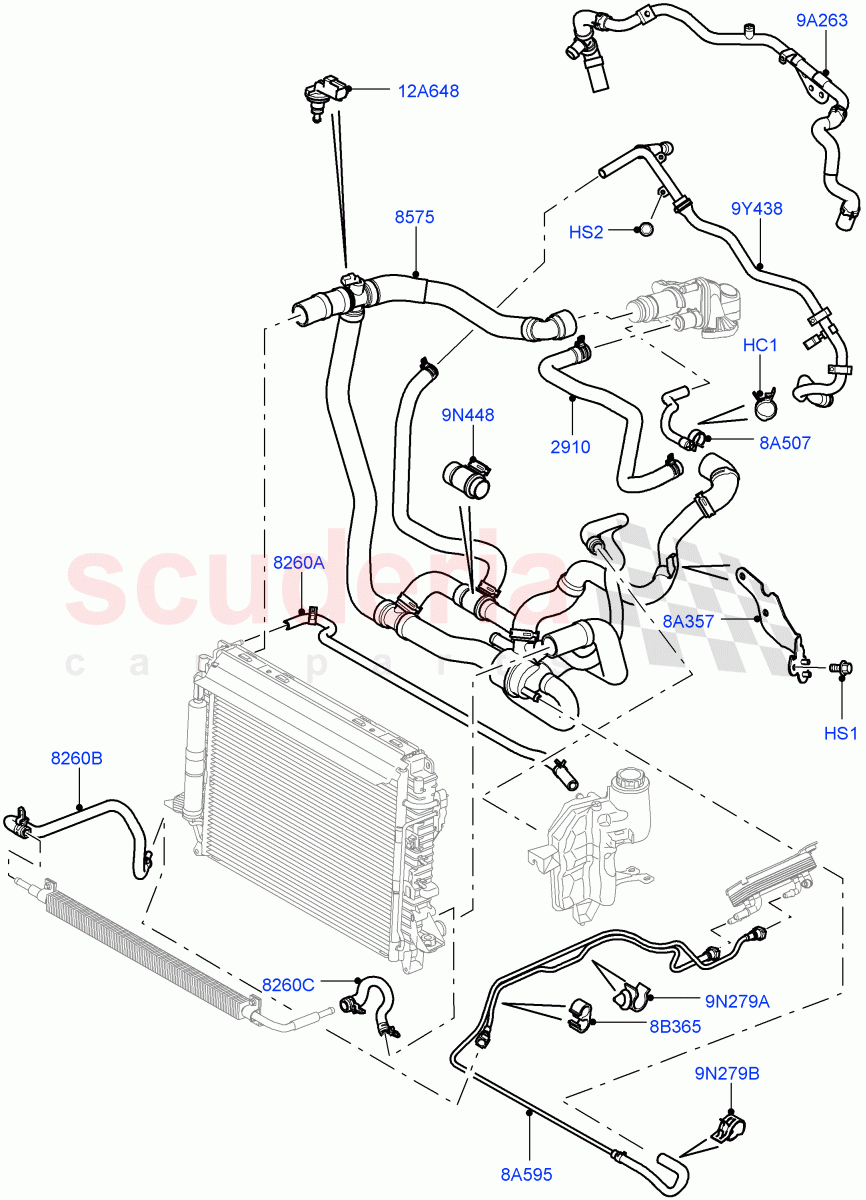

Cooling System Pipes And Hoses (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 PYC101880
Clip
23MM / From: AA000001 		- 1 Enquire
HS1 FS106127L
SCREW
M6 x 12MM / From: AA000001 		- 1 Enquire
HS2 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: AA000001 		- 4 Enquire
8A357 PEU500140
BRACKET
From: AA000001 		- 1 Enquire
8A507 PCH501351
HOSE - WATER OUTLET
Cooling System Bleed / From: AA000001 		- 1 Enquire
8A595 PIH500101
HOSE
For Fuel Cooler / From: AA000001 		- 1 Enquire
8B365 SYC100540L
CLIP
From: AA000001 		- 5 Enquire
9A263 WAP500380
TUBE - EGR VALVE TO EXHAUST MANIFLD
Cooled EGR, Outlet / From: AA000001 		- 1 Enquire
9N279A DYC101410
Clamp
From: AA000001 		- 1 Enquire
9N279B PYC102010
CLAMP
From: AA000001 		- 1 Enquire
9N448 PEI500020
T-CONNECTOR
From: AA000001 		- 1 Enquire
9Y438 LR006638
HOSE
Cooled EGR, Inlet / From: AA000001 		- 1 Enquire
12A648 4346360
SENSOR - ENGINE COOLANT TEMPERATURE
From: AA000001 		- 1 Enquire
2910 JHB501461
TUBE
With Fuel Fired Heater / From Engine To Fuel Fired Heater / From: AA000001 		- 1 Enquire
8260A PCH501072
HOSE - RADIATOR
From Reservoir To Radiator / From: AA000001 		- 1 Enquire
8260B PIH500130
HOSE - RADIATOR
RH / From: AA000001 		- 1 Enquire
8260C PIH500091
HOSE - RADIATOR
LH / From: AA000001 		- 1 Enquire
8575 LR020009
THERMOSTAT
Bottom, Engine To Radiator / From: AA000001 		- 1 Enquire
